Equivalent & Substitute Parts Reference: ESLM11200 Terminal Block

Part Overview

The Amphenol PCD ESLM11200 is an active 11-position wire-to-board terminal block in the Terminal Blocks category. The device features a horizontal mating orientation to the board, 0.200" (5.08mm) pitch, and through-hole mounting. It is designed for wire gauges from 14 to 30 AWG, with a current rating of 13.5 A and voltage rating of 300 V. This component uses a screw – rising cage clamp termination and is packaged in tray format. It is essential to identify alternative models for inventory management, supply assurance, and design flexibility within compliant specifications.

Substiute Parts

ESLM11200

Amphenol PCDIn Stock: 824ESLM11200 Datasheet

Current PartRFQ

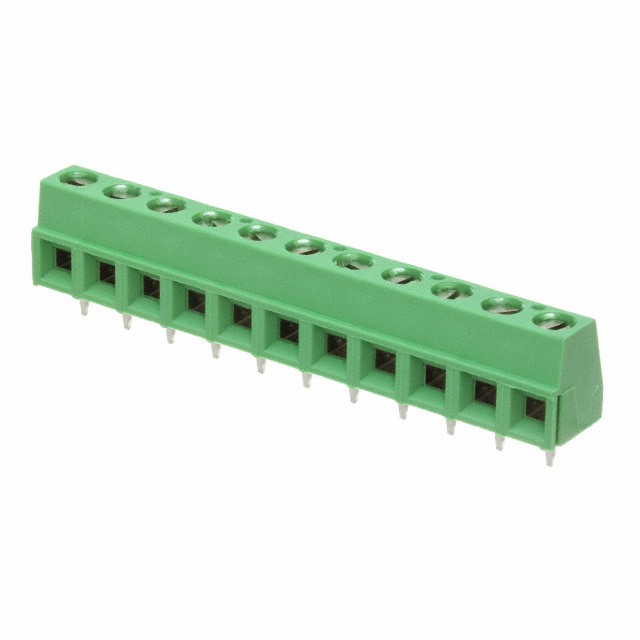

1-282837-1

TE Connectivity AMP ConnectorsIn Stock: 11411-282837-1 Datasheet

SimilarRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution is based strictly on matching key parameters relevant to electrical performance, mechanical compatibility, regulatory compliance, and product status. For terminal blocks, the essential criteria include positions per level, pitch, current and voltage ratings, wire gauge range, mounting type, mating orientation, wire termination style, and feature set (such as interlocking). Housing material and compliance status further determine suitability for direct replacement.

Parameter Comparison

Engineering Selection Recommendations

Both ESLM11200 and 1-282837-1 terminal blocks are active products, available new and original as indicated by stock quantities. Each part holds RoHS compliance and a moisture sensitivity level of 1 (Unlimited), suitable for equivalent use in RoHS-constrained applications. Engineering selection should be made per these validated inventory and compliance parameters.

Frequently Asked Questions (FAQ)

Q1: What are the primary criteria for selecting a substitute for ESLM11200?
A1: Substitutes are determined by matching parameters such as positions per level, pitch, current and voltage ratings, wire gauge range, mounting type, mating orientation, wire termination style, housing material, product status, and compliance certifications.

Q2: Are wire gauge ranges identical between ESLM11200 and 1-282837-1?
A2: The wire gauge range for ESLM11200 is 14-30 AWG. For 1-282837-1, it is 16-28 AWG.

Q3: Does the mounting method differ between the two terminal blocks?
A3: Both components use through-hole mounting.

Q4: Are packaging types relevant for direct drop-in replacement?
A4: ESLM11200 is packaged in tray format; 1-282837-1 is packaged in bulk. Packaging format may be considered for process compatibility but does not affect electrical or mechanical substitution criteria.

Q5: Are there differences in material plating and color?
A5: Yes. ESLM11200 uses copper alloy for contacts, clamps, and screws, while 1-282837-1 uses brass. ESLM11200 is black, and 1-282837-1 is green. These factors must be considered for application-specific material compatibility or color requirements.
