ESLM11100 Equivalent & Substitute Parts

Part Overview

The ESLM11100 is an 11-position wire-to-board terminal block manufactured by Amphenol PCD, designed for horizontal PCB mounting with side entry wire connections. This component is classified as Active product status and is RoHS compliant. Substitute parts are identified when equivalent electrical performance, mechanical compatibility, and physical dimensions align with the original specification, enabling procurement flexibility and supply chain continuity.

Substiute Parts

ESLM11100

Amphenol PCDIn Stock: 756ESLM11100 Datasheet

Current PartRFQ

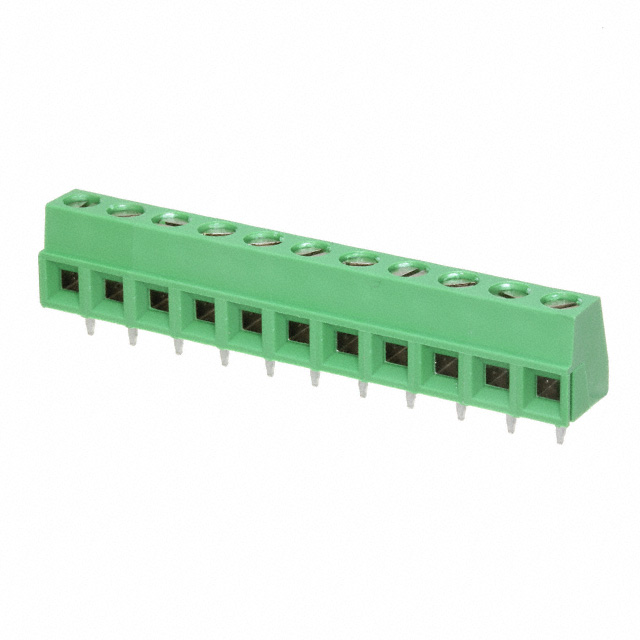

1-282836-1

TE Connectivity AMP ConnectorsIn Stock: 14691-282836-1 Datasheet

DirectRFQ

Key Parameters

Substitute Part Grouping Explanation

The substitute part 1-282836-1 (TE Connectivity AMP Connectors, Buchanan series) qualifies as an equivalent based on the following critical parameters:

• Identical position count (11 positions)
• Matching pitch specification (0.197" / 5.00mm)
• Identical mating orientation (Horizontal with Board)
• Equivalent current rating (14.6 A)
• Equivalent voltage rating (300 V)
• Identical mounting type (Through Hole)
• Identical wire termination method (Screw - Rising Cage Clamp)
• Identical housing material (Polyamide PA66, Nylon 6/6)
• Matching interlocking feature (Side)
• Both RoHS compliant

Substitution is valid where these core parameters align. Variations in wire gauge acceptance, contact material composition, torque specification, and color do not prevent functional equivalence in applications where the main part specifications are met.

Parameter Comparison

Engineering Selection Recommendations

Both the ESLM11100 and 1-282836-1 maintain Active product status, ensuring continued manufacturer support and availability. Both components are RoHS compliant and carry identical MSL ratings (1 - Unlimited), indicating equivalent moisture handling and storage requirements. Both are classified under ECCN EAR99 and HTSUS 8536.90.4000, meeting identical export and tariff classifications.

The substitute part 1-282836-1 accepts a narrower wire gauge range (16-30 AWG versus 14-30 AWG) and specifies higher screw torque (0.68 Nm versus 0.5 Nm). These differences do not prevent substitution in applications where wire gauges remain within the 16-30 AWG range and where the higher torque specification is acceptable. Contact material composition differs (Copper Alloy versus Brass), though both are tin-plated for equivalent electrical performance. Housing color variation (Black versus Green) is cosmetic and does not affect electrical or mechanical function.

Frequently Asked Questions (FAQ)

Q: Can 1-282836-1 replace ESLM11100 in all applications?

A: Substitution is valid where wire gauges fall within the 16-30 AWG range supported by both parts. If your application requires 14 or 15 AWG wire termination, the ESLM11100 is required.

Q: Are the pitch and position specifications identical?

A: Yes. Both parts feature 11 positions at 0.197" (5.00mm) pitch, ensuring identical PCB footprint and mechanical compatibility.

Q: Does the difference in screw torque affect compatibility?

A: The higher torque specification (0.68 Nm) of 1-282836-1 does not prevent substitution. Torque values define tightening procedures; the substitute part's specification is within acceptable engineering practice for this terminal block category.

Q: Are there differences in electrical performance?

A: No. Both parts share identical current (14.6 A) and voltage (300 V) ratings. Contact material composition differs, but both use tin plating for equivalent electrical conductivity and corrosion resistance.

Q: What is the significance of the color difference?

A: Color is a visual identifier only and does not affect electrical or mechanical function. Selection between Black (ESLM11100) and Green (1-282836-1) is based on application requirements or assembly documentation standards.

Q: Are both parts RoHS compliant?

A: Yes. Both ESLM11100 and 1-282836-1 are RoHS compliant with identical MSL ratings (1 - Unlimited), meeting equivalent environmental and storage requirements.
