ESLM02200 Equivalent & Substitute Parts

Part Overview

The ESLM02200 is a 2-position wire-to-board terminal block manufactured by Amphenol PCD, designed for horizontal PCB mounting with side entry wire connections. This component operates at 300V with a 14.6A current rating and accommodates wire gauges from 14-30 AWG. The part is currently active in production with RoHS compliance and unlimited moisture sensitivity rating, making it suitable for industrial and commercial applications requiring reliable screw-terminal connectivity.

Substitute parts are identified when equivalent electrical performance, mechanical compatibility, and mounting characteristics are maintained across the specified parameter ranges.

Substiute Parts

ESLM02200

Amphenol PCDIn Stock: 1123ESLM02200 Datasheet

Current PartRFQ

282837-2

TE Connectivity AMP ConnectorsIn Stock: 226714282837-2 Datasheet

SimilarRFQ

Key Parameters

Substitute Part Grouping Explanation

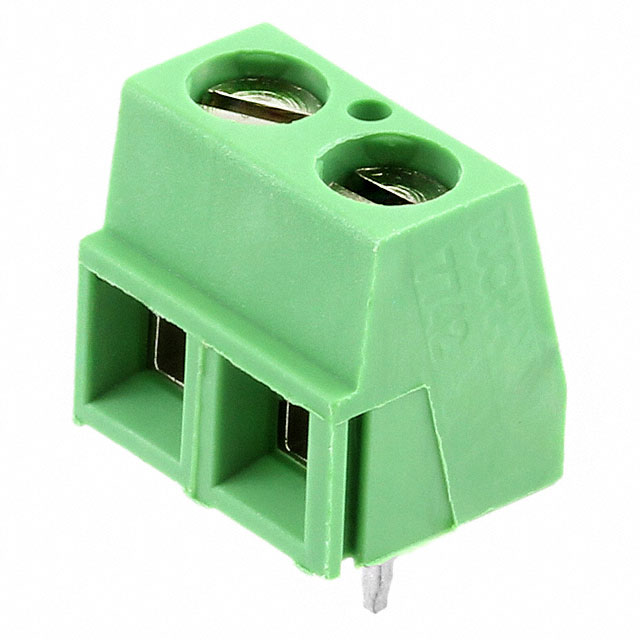

The ESLM02200 can be substituted with TE Connectivity AMP Connectors part number 282837-2 based on the following alignment of critical parameters:

Electrical Compatibility: Both parts maintain identical voltage (300V) and current (14.6A) ratings, ensuring equivalent power handling capacity.

Mechanical Compatibility: Both components feature 2 positions per level with 0.200" (5.08mm) pitch spacing, horizontal board orientation, through-hole mounting, and side-entry interlocking design.

Termination Method: Both utilize screw-type rising cage clamp wire termination, providing equivalent connection reliability and maintenance accessibility.

Material Specification: Both employ polyamide (PA66) nylon 6/6 housing material, ensuring comparable mechanical durability and environmental resistance.

Wire Gauge Consideration: The ESLM02200 accepts 14-30 AWG wire, while the 282837-2 accepts 16-28 AWG wire. The 282837-2 operates within a subset of the main part's wire gauge range, making it suitable for applications using 16-28 AWG conductors.

Parameter Comparison

Engineering Selection Recommendations

ESLM02200 Selection: Choose this part when wire gauge requirements span the full 14-30 AWG range, particularly for applications utilizing 14-15 AWG or 29-30 AWG conductors. The part maintains active production status with standard RoHS compliance certification.

282837-2 Selection: Choose this part when wire gauge requirements fall within the 16-28 AWG range. This substitute offers ROHS3 compliance, indicating adherence to updated RoHS directives, and provides REACH status documentation for applications requiring extended regulatory compliance verification. The part maintains significantly higher inventory availability (226,670 pcs vs. 1,104 pcs).

Both parts are active products with equivalent electrical and mechanical performance within their respective wire gauge specifications.

Frequently Asked Questions (FAQ)

Q: Can the 282837-2 replace the ESLM02200 in all applications?

A: The 282837-2 is compatible with applications using 16-28 AWG wire. If your design requires 14-15 AWG or 29-30 AWG conductors, the ESLM02200 is the appropriate choice.

Q: Are the pitch and mounting footprints identical?

A: Yes. Both parts feature 0.200" (5.08mm) pitch spacing and through-hole mounting, making them mechanically interchangeable at the PCB level when wire gauge requirements are met.

Q: What is the difference in screw torque specifications?

A: The ESLM02200 specifies 0.5 Nm (4.4 Lb-In) torque, while the 282837-2 specifies 0.68 Nm (6 Lb-In). Both values fall within acceptable ranges for screw-terminal connections; follow the manufacturer's torque specification for the selected part.

Q: Does the color difference affect electrical performance?

A: No. The ESLM02200 is black and the 282837-2 is green. Color is a cosmetic designation and does not impact electrical or mechanical function.

Q: Which part should I select for new designs?

A: For new designs, evaluate wire gauge requirements first. If 16-28 AWG accommodates your application, the 282837-2 offers superior inventory availability and updated ROHS3 compliance. For designs requiring extended wire gauge support, specify the ESLM02200.

Q: Are both parts RoHS compliant?

A: Yes. The ESLM02200 is RoHS Compliant, and the 282837-2 is ROHS3 Compliant. Both meet RoHS requirements; ROHS3 represents a more recent compliance certification standard.
