ESDM12100 Equivalent & Substitute Parts

Part Overview

The ESDM12100 is a 12-position wire-to-board terminal block manufactured by Amphenol PCD, designed for horizontal PCB mounting with 0.100" (2.54mm) pitch spacing. This component provides screw-based wire termination with rising cage clamp technology for secure electrical connections in industrial and commercial applications. The part is currently active in production with 993 units in stock. Substitute parts are identified when equivalent electrical performance, mechanical compatibility, and functional specifications can be maintained across different manufacturers while meeting application requirements.

Key Parameters

Parameter	Value
Positions	12
Pitch	0.100" (2.54mm)
Mating Orientation	Horizontal with Board
Current Rating	10 A
Voltage Rating	150 V
Wire Gauge	16-30 AWG
Mounting Type	Through Hole
Wire Termination	Screw - Rising Cage Clamp
Operating Temperature Range	-40°C ~ 110°C
Housing Material	Polyamide (PA66), Nylon 6/6
RoHS Status	RoHS Compliant

Substitute Part Grouping Explanation

Substitution eligibility for the ESDM12100 is determined by strict equivalence across the following critical parameters:

12-position configuration with 0.100" (2.54mm) pitch spacing
Horizontal with board mating orientation
10 A current rating and 150 V voltage rating
16-30 AWG wire gauge compatibility
Through-hole PCB mounting
Screw-based rising cage clamp termination method
Polyamide (PA66) housing material
Operating temperature range of -40°C minimum and 110°C maximum
RoHS compliance status

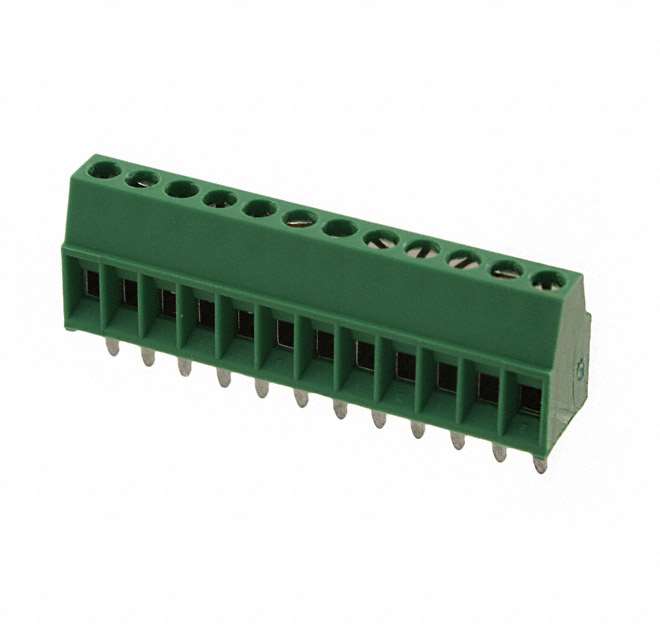

The substitute part 1-282834-2 meets all these core electrical and mechanical requirements, enabling direct functional replacement in applications where the ESDM12100 is specified.

Parameter Comparison

Parameter	ESDM12100 (Amphenol PCD)	1-282834-2 (TE Connectivity)	Compatibility
Positions	12	12	Equivalent
Pitch	0.100" (2.54mm)	0.100" (2.54mm)	Equivalent
Mating Orientation	Horizontal with Board	Horizontal with Board	Equivalent
Current Rating	10 A	10 A	Equivalent
Voltage Rating	150 V	150 V	Equivalent
Wire Gauge	16-30 AWG	16-30 AWG	Equivalent
Mounting Type	Through Hole	Through Hole	Equivalent
Wire Termination	Screw - Rising Cage Clamp	Screw - Rising Cage Clamp	Equivalent
Housing Material	Polyamide (PA66), Nylon 6/6	Polyamide (PA66), Nylon 6/6	Equivalent
Operating Temperature Range	-40°C ~ 110°C	-40°C ~ 105°C	1-282834-2 rated to 105°C maximum
RoHS Status	RoHS Compliant	ROHS3 Compliant	Both compliant
Moisture Sensitivity Level	1 (Unlimited)	1 (Unlimited)	Equivalent
Product Status	Active	Active	Both in production

Engineering Selection Recommendations

Both the ESDM12100 and 1-282834-2 are active production components with full RoHS compliance. The ESDM12100 maintains a maximum operating temperature of 110°C, while the 1-282834-2 is rated to 105°C maximum. For applications operating continuously above 105°C, the ESDM12100 is the appropriate selection. For applications within the 105°C limit, either part provides equivalent electrical and mechanical performance. Both components carry MSL Level 1 (Unlimited) moisture sensitivity ratings, indicating no special storage or handling requirements. The choice between manufacturers may be driven by supply chain availability, lead time, or existing qualification requirements within your organization.

Frequently Asked Questions (FAQ)

Q: Can 1-282834-2 replace ESDM12100 in all applications?

A: The 1-282834-2 is functionally equivalent for applications where the operating temperature does not exceed 105°C continuously. The ESDM12100 supports operation to 110°C. Verify your application's maximum operating temperature before substitution.

Q: Are the physical dimensions and PCB footprints identical?

A: Both parts share the same 12-position configuration with 0.100" (2.54mm) pitch and through-hole mounting. Physical compatibility is maintained for PCB layout purposes.

Q: What is the difference in screw torque specifications?

A: The ESDM12100 specifies 0.13 Nm (1.15 Lb-In) screw torque, while 1-282834-2 specifies 0.2 Nm (1.7 Lb-In). Follow the torque specification of the part being installed to ensure proper wire termination.

Q: Are both parts RoHS compliant?

A: Yes. The ESDM12100 is RoHS Compliant, and the 1-282834-2 is ROHS3 Compliant. Both meet current regulatory requirements.

Q: What wire gauges are supported?

A: Both parts accept 16-30 AWG wire, providing equivalent wire termination capability across the full range.

Q: Do these parts require special handling or storage?

A: Both parts carry MSL Level 1 (Unlimited) moisture sensitivity ratings, indicating standard storage and handling procedures are sufficient.
