ESDM10100 Equivalent & Substitute Parts

Part Overview

The ESDM10100 is a 10-position wire-to-board terminal block manufactured by Amphenol PCD, designed for horizontal PCB mounting with 0.100" (2.54mm) pitch spacing. This component is classified as Active product status and is RoHS Compliant. Terminal blocks of this specification are essential in applications requiring reliable wire-to-board connections with screw-based termination. Substitute parts may be required due to inventory availability, lead time considerations, or specific application requirements within the allowed electrical and mechanical parameter ranges.

Substiute Parts

ESDM10100

Amphenol PCDIn Stock: 735ESDM10100 Datasheet

Current PartRFQ

1-282834-0

TE Connectivity AMP ConnectorsIn Stock: 646091-282834-0 Datasheet

DirectRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution eligibility for the ESDM10100 is determined by strict alignment with the following critical parameters:

• 10 positions per level configuration
• 0.100" (2.54mm) pitch spacing
• Horizontal with board mating orientation
• 10 A current rating minimum
• 150 V voltage rating minimum
• 16-30 AWG wire gauge compatibility
• Through hole mounting type
• Screw-based rising cage clamp termination
• Polyamide (PA66) housing material

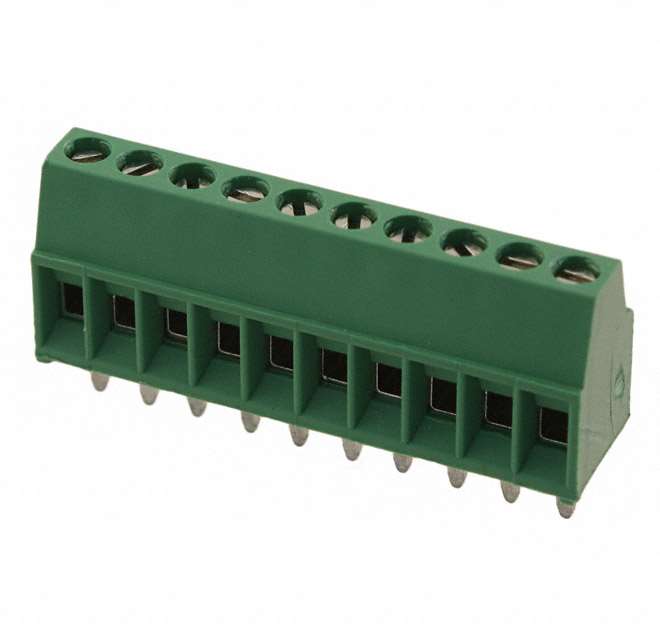

The substitute part 1-282834-0 (TE Connectivity AMP Connectors, Buchanan series) meets all critical electrical and mechanical parameters required for direct substitution in applications utilizing the ESDM10100.

Parameter Comparison

Engineering Selection Recommendations

Both the ESDM10100 and 1-282834-0 maintain Active product status and comply with current regulatory requirements. The ESDM10100 is RoHS Compliant, while the 1-282834-0 is ROHS3 Compliant, indicating enhanced environmental compliance standards. Both components carry MSL Level 1 (Unlimited) moisture sensitivity classification, suitable for standard storage and handling conditions.

The operating temperature range of the ESDM10100 extends to 110°C, compared to 105°C for the 1-282834-0. For applications operating at temperatures between 105°C and 110°C, the ESDM10100 is the appropriate selection. For all other applications within the specified parameter ranges, either component is suitable based on availability and procurement requirements.

Frequently Asked Questions (FAQ)

Q: Can the 1-282834-0 be used as a direct replacement for the ESDM10100?

A: Yes, the 1-282834-0 is a direct substitute for the ESDM10100 in applications where the operating temperature does not exceed 105°C. Both components share identical electrical ratings (10 A, 150 V), mechanical configuration (10 positions, 2.54mm pitch), and termination method (screw-based rising cage clamp).

Q: What is the difference in operating temperature between these two parts?

A: The ESDM10100 operates from -40°C to 110°C, while the 1-282834-0 operates from -40°C to 105°C. The 5°C difference in maximum operating temperature may be significant for high-temperature applications.

Q: Are the packaging formats interchangeable?

A: The ESDM10100 is supplied in Tray packaging, while the 1-282834-0 is supplied in Bulk packaging. Packaging format does not affect component functionality or electrical performance, only handling and storage logistics.

Q: Do both parts meet RoHS requirements?

A: Yes. The ESDM10100 is RoHS Compliant, and the 1-282834-0 is ROHS3 Compliant. Both meet current environmental compliance standards for electronic components.

Q: What wire gauges are compatible with these terminal blocks?

A: Both the ESDM10100 and 1-282834-0 accept wire gauges from 16 to 30 AWG, providing compatibility with a wide range of wire sizes in standard industrial applications.
