ESDM06100 Equivalent & Substitute Parts

Part Overview

The ESDM06100 is a 6-position wire-to-board terminal block manufactured by Amphenol PCD, designed for horizontal PCB mounting with 0.100" (2.54mm) pitch spacing. This component provides screw-based wire termination with rising cage clamp technology, supporting currents up to 10 A at 150 V. The part is currently active in production with full RoHS compliance and unlimited moisture sensitivity rating. Substitute parts are identified to address inventory availability, packaging preferences, or specific application requirements while maintaining electrical and mechanical compatibility.

Key Parameters

Parameter	Value
Positions Per Level	6
Pitch	0.100" (2.54mm)
Mating Orientation	Horizontal with Board
Current Rating	10 A
Voltage Rating	150 V
Wire Gauge	16-30 AWG
Mounting Type	Through Hole
Wire Termination	Screw - Rising Cage Clamp
Housing Material	Polyamide (PA66), Nylon 6/6
Operating Temperature Range	-40°C ~ 110°C
RoHS Status	RoHS Compliant

Substitute Part Grouping Explanation

Substitution eligibility for the ESDM06100 is determined by strict equivalence across the following critical parameters:

6 positions per level configuration
0.100" (2.54mm) pitch spacing
Horizontal with board mating orientation
10 A current rating
150 V voltage rating
16-30 AWG wire gauge acceptance
Through hole mounting
Screw-based rising cage clamp termination
Polyamide (PA66) housing material
RoHS compliance

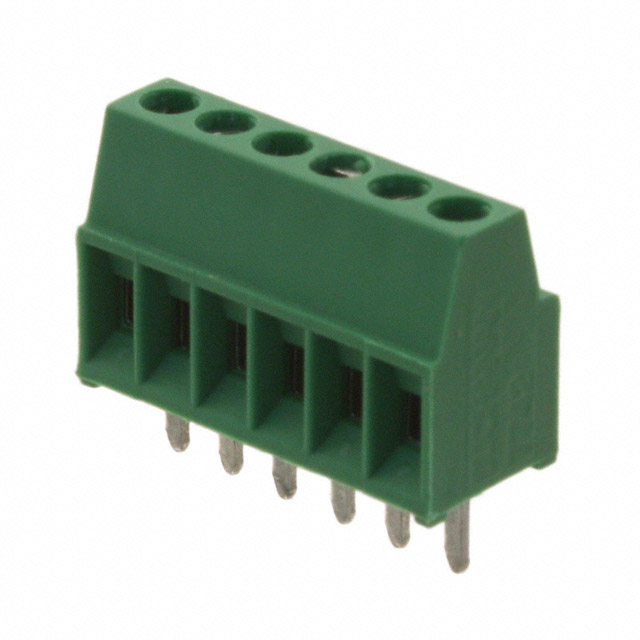

The substitute part 282834-6 (TE Connectivity AMP Connectors, Buchanan series) meets all these core electrical and mechanical requirements, enabling direct functional replacement in applications where the ESDM06100 is specified.

Parameter Comparison

Parameter	ESDM06100 (Amphenol PCD)	282834-6 (TE Connectivity)	Compatibility
Positions Per Level	6	6	Equivalent
Pitch	0.100" (2.54mm)	0.100" (2.54mm)	Equivalent
Mating Orientation	Horizontal with Board	Horizontal with Board	Equivalent
Current Rating	10 A	10 A	Equivalent
Voltage Rating	150 V	150 V	Equivalent
Wire Gauge	16-30 AWG	16-30 AWG	Equivalent
Mounting Type	Through Hole	Through Hole	Equivalent
Wire Termination	Screw - Rising Cage Clamp	Screw - Rising Cage Clamp	Equivalent
Housing Material	Polyamide (PA66), Nylon 6/6	Polyamide (PA66), Nylon 6/6	Equivalent
Operating Temperature Range	-40°C ~ 110°C	-40°C ~ 105°C	Compatible (282834-6 range is subset)
RoHS Status	RoHS Compliant	RoHS Compliant	Equivalent
Product Status	Active	Active	Equivalent

Engineering Selection Recommendations

Both the ESDM06100 and 282834-6 are active production components with full RoHS compliance and EAR99 export classification. Selection between these parts should be based on:

Inventory and Packaging: The 282834-6 is available in higher quantity (22,120 pcs) in bulk packaging, compared to the ESDM06100 (1,042 pcs) in tray packaging. Bulk packaging may offer cost advantages for high-volume applications.

Operating Temperature: The ESDM06100 supports operation to 110°C, while the 282834-6 is rated to 105°C. For applications requiring sustained operation above 105°C, the ESDM06100 is the appropriate selection.

Contact and Screw Materials: The ESDM06100 uses copper alloy contacts with tin plating and nickel-plated clamp/screw materials. The 282834-6 uses brass contacts with tin plating and stainless steel screws. Both material sets are suitable for general industrial applications; material selection may depend on corrosion resistance requirements in specific environments.

Torque Specification: The ESDM06100 specifies 0.13 Nm screw torque, while the 282834-6 specifies 0.2 Nm. Installation procedures must follow the respective manufacturer torque requirements.

Frequently Asked Questions (FAQ)

Q: Can the 282834-6 be used as a direct replacement for the ESDM06100 in existing designs?

A: Yes, the 282834-6 meets all core electrical and mechanical specifications for the ESDM06100, including pitch, position count, current/voltage ratings, wire gauge acceptance, and termination method. Both components are RoHS compliant and active production parts. Installation must follow the specific torque requirements for each part.

Q: What is the difference in operating temperature between these parts?

A: The ESDM06100 operates from -40°C to 110°C, while the 282834-6 operates from -40°C to 105°C. The ESDM06100 provides 5°C additional high-temperature capability. For applications operating continuously above 105°C, the ESDM06100 is required.

Q: Are there packaging differences between these parts?

A: Yes. The ESDM06100 is supplied in tray packaging with 1,042 pieces in stock. The 282834-6 is supplied in bulk packaging with 22,120 pieces available. Packaging selection may affect handling, storage, and cost considerations for different order volumes.

Q: Do the different screw materials affect compatibility?

A: Both screw material sets (nickel-plated copper alloy in the ESDM06100 and stainless steel in the 282834-6) are suitable for standard industrial terminal block applications. Material selection does not affect electrical compatibility but may influence corrosion resistance in specific chemical or marine environments.

Q: What torque values must be used during installation?

A: The ESDM06100 requires 0.13 Nm (1.15 Lb-In) screw torque. The 282834-6 requires 0.2 Nm (1.7 Lb-In) screw torque. Each part must be installed according to its specified torque value to ensure proper contact pressure and reliability.
