ESDM05100 Equivalent & Substitute Parts

Part Overview

The ESDM05100 is a 5-position wire-to-board terminal block manufactured by Amphenol PCD, designed for horizontal PCB mounting with 0.100" (2.54mm) pitch spacing. This component provides screw-based wire termination with rising cage clamp technology for secure electrical connections in through-hole applications. The part is currently active in production with full RoHS compliance and unlimited moisture sensitivity rating. Substitute parts are identified when equivalent electrical performance, mechanical compatibility, and functional specifications can be maintained across different manufacturers while preserving circuit board integration requirements.

Key Parameters

Parameter	Value
Positions Per Level	5
Pitch	0.100" (2.54mm)
Mating Orientation	Horizontal with Board
Current Rating	10 A
Voltage Rating	150 V
Wire Gauge	16-30 AWG
Mounting Type	Through Hole
Wire Termination	Screw - Rising Cage Clamp
Operating Temperature Range	-40°C ~ 110°C
Housing Material	Polyamide (PA66), Nylon 6/6
RoHS Status	RoHS Compliant

Substitute Part Grouping Explanation

Substitution eligibility for the ESDM05100 is determined by strict equivalence across the following critical parameters:

5-position configuration with single level
0.100" (2.54mm) pitch spacing for PCB footprint compatibility
Horizontal board-mounted orientation
10 A current and 150 V voltage ratings
16-30 AWG wire gauge acceptance
Through-hole mounting technology
Screw-based rising cage clamp termination method
Polyamide housing material
RoHS compliance certification

The substitute part 282834-5 (TE Connectivity AMP Connectors, Buchanan series) meets all critical electrical and mechanical parameters required for direct functional replacement in applications where the ESDM05100 is specified.

Parameter Comparison

Parameter	ESDM05100 (Amphenol PCD)	282834-5 (TE Connectivity)	Compatibility
Positions Per Level	5	5	Equivalent
Pitch	0.100" (2.54mm)	0.100" (2.54mm)	Equivalent
Mating Orientation	Horizontal with Board	Horizontal with Board	Equivalent
Current Rating	10 A	10 A	Equivalent
Voltage Rating	150 V	150 V	Equivalent
Wire Gauge	16-30 AWG	16-30 AWG	Equivalent
Mounting Type	Through Hole	Through Hole	Equivalent
Wire Termination	Screw - Rising Cage Clamp	Screw - Rising Cage Clamp	Equivalent
Operating Temperature Range	-40°C ~ 110°C	-40°C ~ 105°C	Compatible (282834-5 range is subset)
Housing Material	Polyamide (PA66), Nylon 6/6	Polyamide (PA66), Nylon 6/6	Equivalent
RoHS Status	RoHS Compliant	RoHS Compliant	Equivalent
Packaging	Tray	Bulk	Different (functional equivalence maintained)
Color	Black	Green	Different (no functional impact)

Engineering Selection Recommendations

Both the ESDM05100 and 282834-5 are active production components with full RoHS compliance and EAR99 export classification. Selection between these parts should be based on:

ESDM05100 (Amphenol PCD): Choose when black housing color is specified, when operating temperatures above 105°C are required, or when Amphenol supply chain continuity is preferred. Current inventory: 880 pcs.

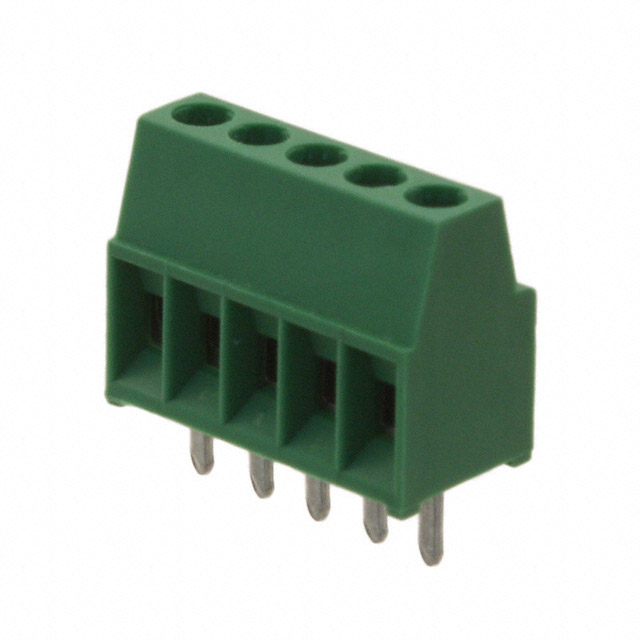

282834-5 (TE Connectivity AMP Connectors): Choose when green housing color is acceptable, when bulk packaging is preferred over tray packaging, or when TE Connectivity supply chain is established. Current inventory: 13,086 pcs. Operating temperature range extends to 105°C, which covers most standard industrial applications.

Both parts maintain identical electrical performance, mechanical footprint compatibility, and wire termination methodology. The 0.100" (2.54mm) pitch ensures direct PCB footprint interchangeability without layout modifications.

Frequently Asked Questions (FAQ)

Q: Can 282834-5 be used as a direct replacement for ESDM05100 on existing PCBs?

A: Yes. Both parts share identical pitch spacing (0.100"/2.54mm), through-hole mounting configuration, and 5-position layout. PCB footprints are mechanically and electrically compatible without modification.

Q: Are there differences in wire termination between these parts?

A: Both use screw-based rising cage clamp termination with 16-30 AWG wire gauge acceptance. The ESDM05100 specifies 0.13 Nm (1.15 Lb-In) torque, while 282834-5 specifies 0.2 Nm (1.7 Lb-In). Consult manufacturer documentation for specific assembly procedures.

Q: What is the impact of the operating temperature range difference?

A: The ESDM05100 operates to 110°C while 282834-5 operates to 105°C. For applications requiring sustained operation above 105°C, the ESDM05100 is required. For standard industrial temperature ranges (-40°C to 105°C), both parts are functionally equivalent.

Q: Does housing color affect electrical performance?

A: No. The black housing of ESDM05100 and green housing of 282834-5 are cosmetic differences only. Electrical performance, current capacity, voltage rating, and material composition remain identical.

Q: What packaging considerations apply to substitution?

A: ESDM05100 is supplied in tray packaging while 282834-5 is supplied in bulk packaging. Verify that receiving and storage procedures accommodate the packaging format. Functional performance is unaffected by packaging type.

Q: Are both parts RoHS compliant?

A: Yes. Both ESDM05100 and 282834-5 carry full RoHS compliance certification and are suitable for applications requiring restricted substance compliance.
