ESBM09200 Equivalent & Substitute Parts

Part Overview

The ESBM09200 is a 9-position wire-to-board terminal block manufactured by Amphenol PCD, designed for horizontal PCB mounting with side entry wire connections. This component operates at 12 A and 300 V, accommodating wire gauges from 16-28 AWG with screw-based rising cage clamp termination. The part is currently active in production and RoHS compliant, making it suitable for industrial and commercial applications requiring reliable wire-to-board connections.

Substitute parts are identified when equivalent electrical performance, mechanical compatibility, and functional characteristics align with the main part's specifications, enabling component interchangeability in circuit designs.

Substiute Parts

ESBM09200

Amphenol PCDIn Stock: 725ESBM09200 Datasheet

Current PartRFQ

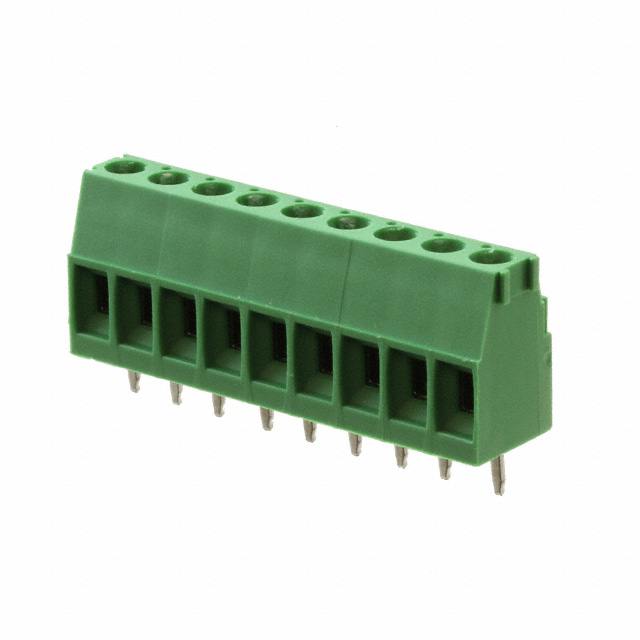

284392-9

TE Connectivity AMP ConnectorsIn Stock: 1675284392-9 Datasheet

SimilarRFQ

Key Parameters

Substitute Part Grouping Explanation

The ESBM09200 has one identified substitute: TE Connectivity AMP Connectors part number 284392-9. Substitution eligibility is determined by the following critical parameters:

• 9-position configuration with 0.150" (3.81mm) pitch spacing
• Horizontal with board mating orientation
• 12 A current rating and 300 V voltage rating
• Through-hole PCB mounting
• Screw-based rising cage clamp wire termination
• Polyamide (PA66) housing material
• 0.25 Nm screw torque specification

The 284392-9 meets all these core electrical and mechanical requirements, establishing functional equivalence for direct substitution in applications where the ESBM09200 is specified.

Parameter Comparison

Engineering Selection Recommendations

Both the ESBM09200 and 284392-9 are active production components with current regulatory compliance. The ESBM09200 carries RoHS compliance certification, while the 284392-9 meets ROHS3 compliance standards and is REACH affected. Selection between these parts should be based on supply chain availability, packaging requirements (tray versus bulk), and specific regulatory requirements of the end application. The 284392-9 supports a broader wire gauge range (14-30 AWG versus 16-28 AWG), providing additional flexibility for applications requiring smaller gauge conductors.

Frequently Asked Questions (FAQ)

Q: Can the 284392-9 directly replace the ESBM09200 in existing designs?

A: Yes. Both parts share identical electrical ratings (12 A, 300 V), mechanical configuration (9 positions, 3.81mm pitch, through-hole mounting), and termination method (screw-based rising cage clamp). PCB footprints and mounting hole patterns are compatible.

Q: What is the difference in wire gauge acceptance?

A: The ESBM09200 accepts 16-28 AWG wire, while the 284392-9 accepts 14-30 AWG wire. The 284392-9 accommodates a wider range, including smaller gauge conductors (14-15 AWG) and larger gauge conductors (29-30 AWG).

Q: Are there packaging differences between these parts?

A: Yes. The ESBM09200 is supplied in tray packaging, while the 284392-9 is supplied in bulk packaging. Packaging selection depends on procurement volume and handling requirements.

Q: Do both parts meet current regulatory requirements?

A: Both parts are RoHS compliant. The 284392-9 additionally carries ROHS3 compliance and is REACH affected, providing enhanced regulatory coverage for certain markets and applications.

Q: Is the screw torque specification identical?

A: Yes. Both parts specify 0.25 Nm (2.2 Lb-In) screw torque, ensuring consistent assembly procedures and connection reliability.
