ESBM08200 Equivalent & Substitute Parts

Part Overview

The ESBM08200 is an 8-position wire-to-board terminal block manufactured by Amphenol PCD, designed for horizontal PCB mounting with side entry wire connections. This component operates at 12 A and 300 V, accommodating wire gauges from 16-28 AWG with screw-based rising cage clamp termination. The part is currently active in production and RoHS compliant, making it suitable for industrial and commercial applications requiring reliable wire-to-board connections.

Substitute parts are identified when equivalent electrical performance, mechanical compatibility, and functional characteristics align with the main part's specifications, enabling component interchangeability in circuit designs.

Substiute Parts

ESBM08200

Amphenol PCDIn Stock: 746ESBM08200 Datasheet

Current PartRFQ

284392-8

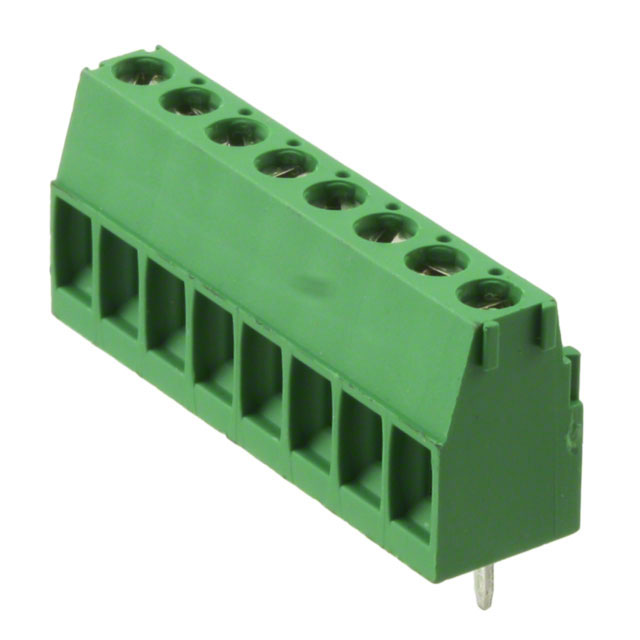

TE Connectivity AMP ConnectorsIn Stock: 1231284392-8 Datasheet

SimilarRFQ

Key Parameters

Substitute Part Grouping Explanation

The ESBM08200 has one identified substitute: TE Connectivity AMP Connectors part number 284392-8. Substitution eligibility is determined by the following critical parameters:

• 8-position configuration with 0.150" (3.81mm) pitch spacing
• Horizontal with board mating orientation
• 12 A current and 300 V voltage ratings
• Screw-based rising cage clamp wire termination
• Through-hole PCB mounting
• Polyamide (PA66) housing material
• Operating temperature range compatibility
• Identical screw torque specification (0.25 Nm)

The 284392-8 meets all substitution criteria across these core electrical and mechanical parameters, establishing functional equivalence for component selection purposes.

Parameter Comparison

Engineering Selection Recommendations

Both the ESBM08200 and 284392-8 are active production components with current inventory availability. The ESBM08200 carries RoHS compliance certification, while the 284392-8 meets ROHS3 compliance standards, indicating enhanced environmental and material restrictions. Both components maintain MSL Level 1 moisture sensitivity ratings, suitable for standard storage and handling conditions.

The 284392-8 accommodates a broader wire gauge range (14-30 AWG versus 16-28 AWG), providing additional flexibility for applications requiring smaller or larger conductor sizes within the same electrical performance envelope. Component selection should be based on specific wire gauge requirements, packaging format preferences (Tray versus Bulk), and compliance certification alignment with end-application standards.

Frequently Asked Questions (FAQ)

Q: Can the 284392-8 directly replace the ESBM08200 in existing designs?

A: Yes. Both components share identical pitch spacing (3.81mm), position count (8), current/voltage ratings (12 A / 300 V), mounting type (through-hole), and wire termination method (screw rising cage clamp). PCB footprints and electrical performance are equivalent.

Q: What is the difference in wire gauge compatibility?

A: The ESBM08200 accepts 16-28 AWG wire, while the 284392-8 accepts 14-30 AWG wire. The 284392-8 supports a wider range, accommodating both smaller (14 AWG) and larger (30 AWG) conductors. Applications using wire sizes within the 16-28 AWG overlap range experience no functional difference.

Q: Are there packaging differences between these parts?

A: Yes. The ESBM08200 is supplied in Tray packaging, while the 284392-8 is supplied in Bulk packaging. Packaging format does not affect electrical or mechanical performance; selection depends on inventory management and procurement requirements.

Q: Do both parts meet environmental compliance requirements?

A: The ESBM08200 is RoHS compliant. The 284392-8 is ROHS3 compliant, which represents a more stringent environmental standard. Both meet MSL Level 1 moisture sensitivity requirements for standard handling and storage conditions.

Q: Is screw torque specification identical between parts?

A: Yes. Both the ESBM08200 and 284392-8 require 0.25 Nm (2.2 Lb-In) screw torque, ensuring consistent assembly procedures and connection reliability across both components.
