ESBM07200 Equivalent & Substitute Parts

Part Overview

The ESBM07200 is a 7-position wire-to-board terminal block manufactured by Amphenol PCD. This horizontal-mount component features a 0.150" (3.81mm) pitch and is designed for through-hole PCB installation with screw-based wire termination. The part is currently active in production with 1040 units in stock. Terminal blocks of this specification are essential in applications requiring reliable wire-to-board connections with standardized pitch spacing and current-carrying capacity. Substitute parts may be required due to supply constraints, regional availability, or specific packaging requirements.

Substiute Parts

ESBM07200

Amphenol PCDIn Stock: 1128ESBM07200 Datasheet

Current PartRFQ

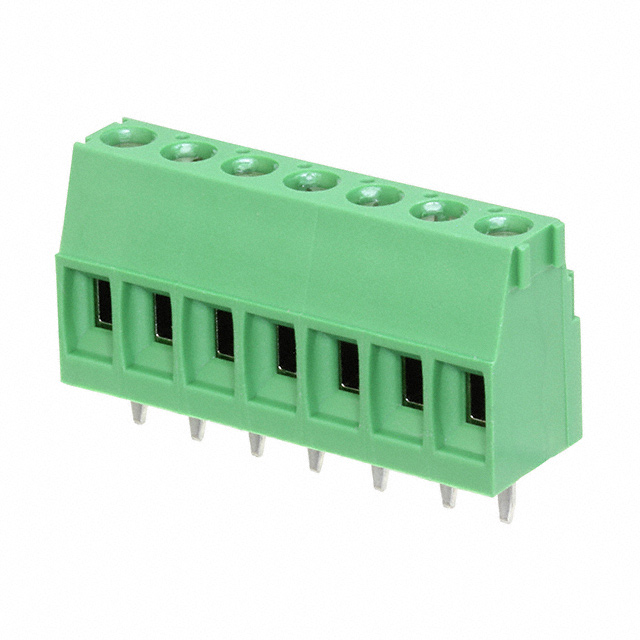

284392-7

TE Connectivity AMP ConnectorsIn Stock: 1592284392-7 Datasheet

SimilarRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution eligibility for the ESBM07200 is determined by the following critical parameters:

• Position Count: Must be 7 positions per level
• Pitch Spacing: Must be 0.150" (3.81mm)
• Mating Orientation: Must be horizontal with board
• Electrical Ratings: Current minimum 12 A, voltage minimum 300 V
• Mounting: Must be through-hole PCB mount
• Termination Method: Must use screw-based rising cage clamp mechanism
• Housing Material: Polyamide (PA66) or equivalent thermoplastic
• Torque Specification: Must support 0.25 Nm screw torque

The substitute part 284392-7 (TE Connectivity AMP Connectors, Buchanan series) meets all critical substitution criteria within the allowed parameter ranges.

Parameter Comparison

Engineering Selection Recommendations

Both the ESBM07200 and 284392-7 are active production components with full regulatory compliance. The ESBM07200 carries RoHS compliance certification, while the 284392-7 carries ROHS3 compliance, which represents an enhanced regulatory standard. The 284392-7 additionally carries REACH Affected status, indicating compliance with European chemical regulations.

Selection between these parts should be based on:

• Supply Availability: ESBM07200 has 1040 units in stock; 284392-7 has 1549 units in stock
• Packaging Format: ESBM07200 is supplied in trays; 284392-7 is supplied in bulk
• Wire Gauge Range: 284392-7 accepts 14-30 AWG versus ESBM07200's 16-28 AWG, providing broader wire compatibility
• Regulatory Requirements: ROHS3 compliance of 284392-7 may be required in specific applications or regions

Both parts are electrically and mechanically interchangeable within the specified parameter ranges.

Frequently Asked Questions (FAQ)

Q: Can 284392-7 be used as a direct replacement for ESBM07200 in existing designs?

A: Yes. Both parts share identical pitch spacing (0.150"), position count (7), electrical ratings (12 A, 300 V), mounting type (through-hole), and termination method (screw-based rising cage clamp). PCB footprints are compatible.

Q: What is the difference in wire gauge acceptance between these parts?

A: The ESBM07200 accepts 16-28 AWG wire, while the 284392-7 accepts 14-30 AWG. The 284392-7 provides a wider acceptable range, accommodating both thicker (14 AWG) and thinner (30 AWG) conductors.

Q: Are there packaging differences between these parts?

A: Yes. The ESBM07200 is packaged in trays, while the 284392-7 is packaged in bulk. Packaging selection depends on assembly process requirements and inventory management practices.

Q: Do both parts meet the same regulatory standards?

A: Both parts are RoHS compliant. The 284392-7 carries ROHS3 certification, which represents a more recent and stringent regulatory standard. The 284392-7 also carries REACH Affected status for European chemical compliance.

Q: Is torque specification identical for both parts?

A: Yes. Both the ESBM07200 and 284392-7 require 0.25 Nm (2.2 Lb-In) screw torque for proper wire termination.

Q: What is the operating temperature range for these parts?

A: The ESBM07200 operates from -40°C to 110°C. Operating temperature data for the 284392-7 was not provided in the specification.
