ESBM04200 Equivalent & Substitute Parts

Part Overview

The ESBM04200 is a 4-position wire-to-board terminal block manufactured by Amphenol PCD, designed for horizontal PCB mounting with side entry wire connections. This component operates at 12 A and 300 V with a 0.150" (3.81mm) pitch configuration. The part is currently active in production with 1051 units in stock. Equivalent parts are identified when they maintain identical electrical ratings, mechanical compatibility, and functional specifications for direct board-level substitution.

Substiute Parts

ESBM04200

Amphenol PCDIn Stock: 1118ESBM04200 Datasheet

Current PartRFQ

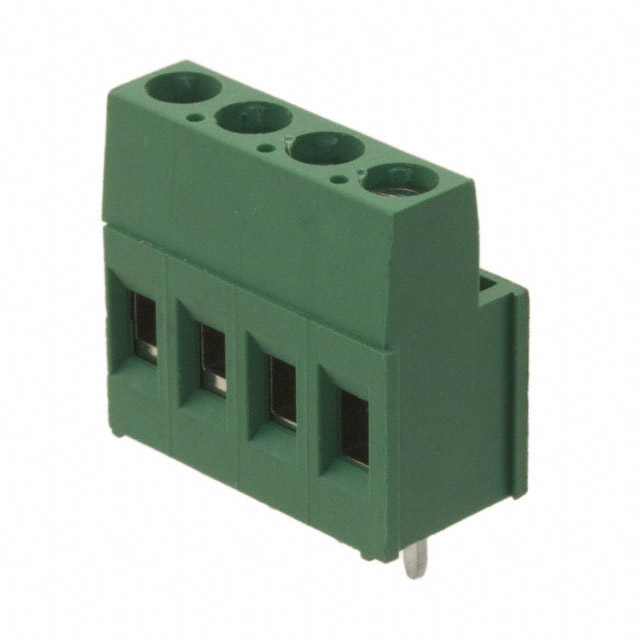

284392-4

TE Connectivity AMP ConnectorsIn Stock: 3991284392-4 Datasheet

SimilarRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution eligibility for the ESBM04200 is determined by strict equivalence across the following parameters: 4-position configuration, 0.150" (3.81mm) pitch, horizontal board mounting orientation, 12 A current capacity, 300 V voltage rating, through-hole mounting, and screw-based rising cage clamp termination with 0.25 Nm torque specification. The substitute part 284392-4 (TE Connectivity AMP Connectors, Buchanan series) meets all these core electrical and mechanical requirements, enabling direct functional replacement in applications where the ESBM04200 is specified.

Parameter Comparison

Engineering Selection Recommendations

Both the ESBM04200 and 284392-4 are active production components with full RoHS compliance. The ESBM04200 carries RoHS standard compliance, while the 284392-4 meets ROHS3 requirements with additional REACH compliance documentation. Selection between these parts should be based on supply chain availability, packaging format (ESBM04200 supplied in trays; 284392-4 supplied in bulk), and organizational procurement preferences. The 284392-4 accommodates a broader wire gauge range (14-30 AWG versus 16-28 AWG), providing additional flexibility for applications using smaller gauge conductors.

Frequently Asked Questions (FAQ)

Q: Can 284392-4 directly replace ESBM04200 on existing PCB designs? A: Yes. Both parts share identical pitch (0.150"), position count (4), mounting type (through-hole), electrical ratings (12 A, 300 V), and termination method (screw rising cage clamp). PCB footprints are compatible without modification.

Q: What is the difference in wire gauge acceptance? A: ESBM04200 accepts 16-28 AWG wire. 284392-4 accepts 14-30 AWG wire. The 284392-4 supports a wider range, accommodating both smaller (14 AWG) and larger (30 AWG) conductors. Applications using wire within the 16-28 AWG range experience no functional difference.

Q: Are there differences in contact material composition? A: ESBM04200 uses copper alloy contacts with tin plating. 284392-4 uses brass contacts with tin plating. Both materials provide equivalent electrical performance and corrosion resistance for the specified voltage and current ratings.

Q: What packaging considerations apply to substitution? A: ESBM04200 is supplied in trays; 284392-4 is supplied in bulk. Inventory management and handling procedures may differ. Verify packaging compatibility with receiving and assembly processes before substitution.

Q: Do both parts meet environmental compliance requirements? A: Yes. ESBM04200 is RoHS compliant. 284392-4 is ROHS3 compliant and REACH affected. Both meet current environmental regulations. The 284392-4 provides additional compliance documentation for applications requiring REACH traceability.
