ESBM02200 Equivalent & Substitute Parts

Part Overview

The ESBM02200 is a 2-position wire-to-board terminal block manufactured by Amphenol PCD, designed for horizontal PCB mounting with side entry wire termination. This component is classified as Active product status and is RoHS Compliant. Terminal blocks of this specification are essential in applications requiring reliable electrical connections between external wiring and printed circuit boards. Substitute parts may be required due to inventory availability, supply chain considerations, or specific application requirements within the defined electrical and mechanical parameters.

Substiute Parts

ESBM02200

Amphenol PCDIn Stock: 761ESBM02200 Datasheet

Current PartRFQ

284392-2

TE Connectivity AMP ConnectorsIn Stock: 1924284392-2 Datasheet

SimilarRFQ

Key Parameters

Substitute Part Grouping Explanation

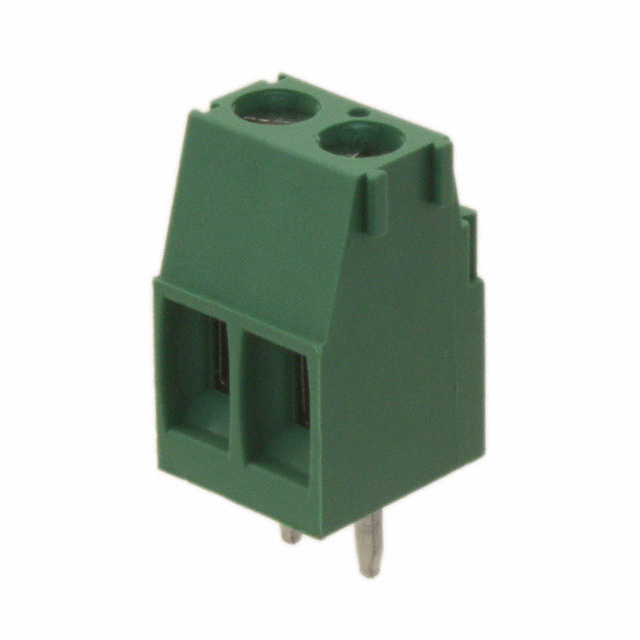

The ESBM02200 can be substituted with the TE Connectivity AMP Connectors part number 284392-2 based on the following critical parameters that determine functional equivalence:

• Positions Per Level: Both parts provide 2 positions
• Pitch: Both parts maintain 0.150" (3.81mm) spacing
• Mating Orientation: Both are horizontal with board configuration
• Current Rating: Both support 12 A
• Voltage Rating: Both support 300 V
• Mounting Type: Both use through-hole mounting
• Wire Termination: Both use screw-rising cage clamp mechanism
• Torque Specification: Both require 0.25 Nm (2.2 Lb-In)

These parameters define the mechanical and electrical interchangeability of the substitute part within the same application context.

Parameter Comparison

Engineering Selection Recommendations

Both the ESBM02200 and 284392-2 are Active product status components with full regulatory compliance. The ESBM02200 carries RoHS Compliant certification, while the 284392-2 carries ROHS3 Compliant certification. Both components maintain MSL 1 (Unlimited) moisture sensitivity rating and share identical ECCN and HTSUS classifications. Selection between these parts should be based on inventory availability, supply chain lead times, and specific application requirements within the defined electrical and mechanical parameters.

Frequently Asked Questions (FAQ)

Q: Can the 284392-2 be used as a direct replacement for the ESBM02200?

A: Yes, within applications requiring the specified electrical and mechanical parameters. Both parts maintain identical pitch (0.150"), position count (2), current rating (12 A), voltage rating (300 V), mounting type (through hole), and wire termination method (screw-rising cage clamp).

Q: What is the difference in wire gauge acceptance between these parts?

A: The ESBM02200 accepts 16-28 AWG wire, while the 284392-2 accepts 14-30 AWG wire. The 284392-2 provides a broader wire gauge range, accommodating both larger and smaller conductor sizes.

Q: Are there differences in contact material composition?

A: Yes. The ESBM02200 uses copper alloy with tin plating for contacts, while the 284392-2 uses brass with tin plating. Both materials provide equivalent electrical performance within the specified voltage and current ratings.

Q: Do both parts require the same installation torque?

A: Yes. Both the ESBM02200 and 284392-2 require 0.25 Nm (2.2 Lb-In) screw torque for proper installation.

Q: What is the significance of the color difference between these parts?

A: The ESBM02200 is black while the 284392-2 is green. Color is a visual identification feature and does not affect electrical or mechanical performance.

Q: Are both parts RoHS compliant?

A: Yes. The ESBM02200 is RoHS Compliant, and the 284392-2 is ROHS3 Compliant. Both meet environmental compliance requirements.
