Equivalent & Substitute Parts for ERO-S2PHF7502

Part Overview

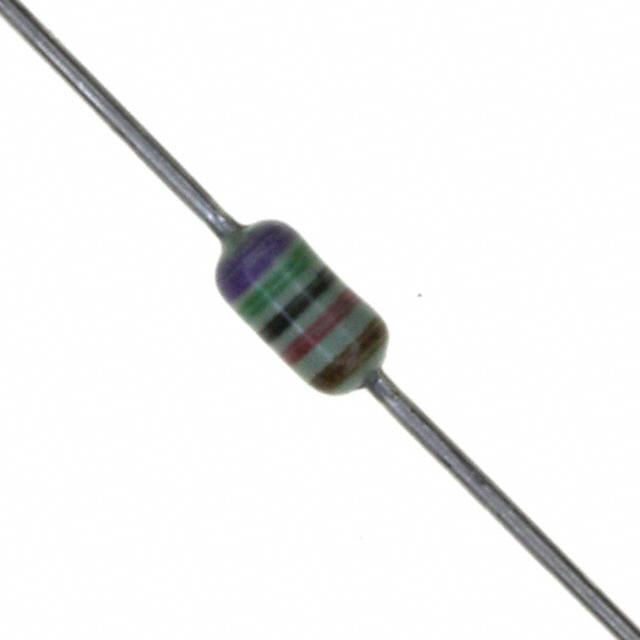

The ERO-S2PHF7502 is a 75 kOhms ±1% 0.25W through-hole resistor with axial metal film construction manufactured by Panasonic Electronic Components. This component is classified as obsolete, making identification of functionally equivalent alternatives necessary for ongoing design support and procurement continuity. The part operates across a temperature range of -55°C to 150°C and features a temperature coefficient of ±50ppm/°C, suitable for general-purpose analog and digital circuit applications requiring precision resistive elements.

Substiute Parts

ERO-S2PHF7502

Panasonic Electronic ComponentsIn Stock: 1200ERO-S2PHF7502 Datasheet

Current PartRFQ

RNMF14FTC75K0

Stackpole Electronics IncIn Stock: 8989RNMF14FTC75K0 Datasheet

DirectRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution of the ERO-S2PHF7502 is determined by strict equivalence across the following electrical and mechanical parameters:

• Resistance value: 75 kOhms
• Tolerance: ±1%
• Power rating: 0.25W (1/4W)
• Composition: Metal Film
• Temperature coefficient: ±50ppm/°C
• Package configuration: Axial through-hole
• Number of terminations: 2

The substitute part RNMF14FTC75K0 from Stackpole Electronics Inc meets all these criteria. Physical dimensions show minor variation within acceptable tolerances for through-hole mounting applications. The substitute maintains identical electrical specifications and is compatible with existing PCB layouts designed for axial resistor footprints.

Parameter Comparison

Engineering Selection Recommendations

The RNMF14FTC75K0 serves as a direct functional equivalent to the obsolete ERO-S2PHF7502. Selection of the substitute is supported by the following factors:

• Electrical specifications are identical across all critical parameters: resistance, tolerance, power rating, temperature coefficient, and operating temperature range
• The substitute maintains active product status, ensuring long-term availability and supply chain continuity
• ROHS3 compliance of the substitute aligns with current regulatory requirements for electronic component procurement
• Physical dimensions show minor variation (0.003" diameter increase, 0.004" length increase) that remains within standard through-hole PCB design tolerances
• Both components feature identical axial package configuration and two-terminal construction, enabling direct mechanical and electrical substitution on existing circuit boards

Frequently Asked Questions (FAQ)

Q: Can RNMF14FTC75K0 be used as a direct replacement for ERO-S2PHF7502 in existing designs?

A: Yes. Both components share identical electrical specifications (75 kOhms ±1%, 0.25W, ±50ppm/°C, metal film construction) and axial package configuration. Minor physical dimension differences fall within standard through-hole mounting tolerances and do not affect PCB compatibility.

Q: What is the difference in operating temperature range between these parts?

A: The ERO-S2PHF7502 operates from -55°C to 150°C, while the RNMF14FTC75K0 operates from -55°C to 155°C. The substitute provides a 5°C extended upper temperature limit, making it suitable for applications requiring the original part's temperature range and beyond.

Q: Why is the ERO-S2PHF7502 listed as obsolete?

A: Panasonic has discontinued this component. The RNMF14FTC75K0 from Stackpole Electronics Inc is an active product offering equivalent electrical and mechanical functionality for new designs and legacy system support.

Q: Are there compliance differences between the two parts?

A: The RNMF14FTC75K0 carries ROHS3 compliance certification, while the ERO-S2PHF7502 does not specify RoHS status. Both components are classified under the same HTSUS code (8533.21.0090) and ECCN (EAR99).

Q: Do the physical dimension differences affect PCB layout?

A: No. The dimensional variations (0.003" diameter, 0.004" length) are minor and remain within standard axial resistor footprint tolerances used in PCB design. Both components are compatible with identical through-hole mounting patterns.
