ERO-S2PHF47R0 Equivalent & Substitute Parts

Part Overview

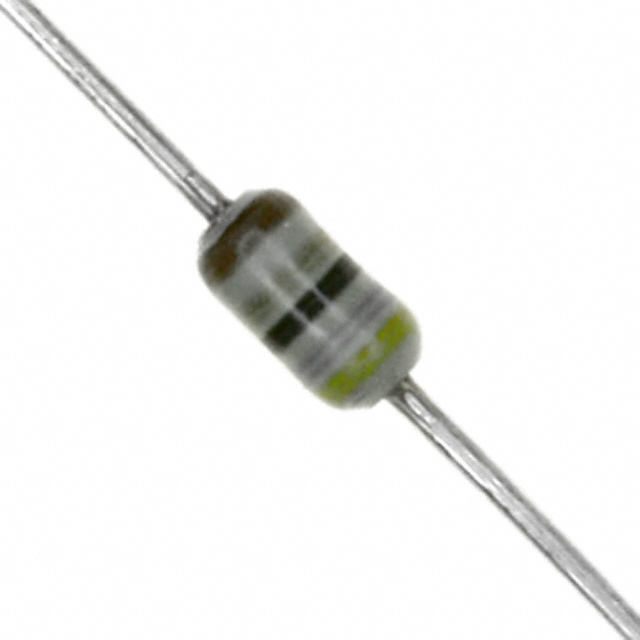

The ERO-S2PHF47R0 is a 47 Ohm ±1% 0.25W (1/4W) through-hole resistor with axial metal film construction manufactured by Panasonic Electronic Components. This component is classified as obsolete, making identification of functionally equivalent alternatives essential for ongoing design support and production continuity. Substitute parts must maintain identical electrical specifications and mechanical compatibility to ensure direct replacement capability in existing circuit designs.

Substiute Parts

ERO-S2PHF47R0

Panasonic Electronic ComponentsIn Stock: 1054ERO-S2PHF47R0 Datasheet

Current PartRFQ

RNMF14FTC47R0

Stackpole Electronics IncIn Stock: 96072RNMF14FTC47R0 Datasheet

DirectRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution of the ERO-S2PHF47R0 is based on strict equivalence across the following critical parameters:

• Resistance Value: 47 Ohms (exact match required)
• Tolerance: ±1% (ensures precision matching in circuit applications)
• Power Rating: 0.25W / 1/4W (thermal and electrical performance requirement)
• Composition: Metal Film (determines frequency response and stability characteristics)
• Temperature Coefficient: ±50ppm/°C (stability specification for temperature-dependent applications)
• Operating Temperature Range: Minimum -55°C ~ 150°C (substitute must meet or exceed this range)
• Package Type: Axial (mechanical fit and PCB compatibility)
• Terminations: 2 (electrical connection requirement)

The RNMF14FTC47R0 from Stackpole Electronics Inc meets all these criteria and qualifies as a direct functional equivalent.

Parameter Comparison

Engineering Selection Recommendations

The RNMF14FTC47R0 is a qualified direct substitute for the ERO-S2PHF47R0 based on the following engineering criteria:

Electrical Equivalence: All critical electrical parameters match exactly—resistance value, tolerance, power rating, composition, and temperature coefficient are identical. The substitute's operating temperature range extends to 155°C, exceeding the original specification of 150°C.

Product Status: The original part is obsolete, while the substitute is active in production with confirmed inventory availability (96,002 pieces). This ensures long-term supply continuity.

Compliance & Certifications: The RNMF14FTC47R0 carries RoHS3 compliance and REACH unaffected status, meeting current regulatory requirements. Both parts share identical ECCN (EAR99) and HTSUS (8533.21.0090) classifications.

Physical Compatibility: Both components use axial packaging with 2 terminations. Dimensional differences (0.070" Dia x 0.130" L vs. 0.067" Dia x 0.126" L) are within acceptable tolerances for standard through-hole PCB applications and do not affect mechanical fit or electrical performance.

Additional Features: The substitute includes flame retardant coating and safety-rated construction, providing enhanced reliability characteristics beyond the original specification.

Frequently Asked Questions (FAQ)

Q: Can the RNMF14FTC47R0 be used as a direct replacement for the ERO-S2PHF47R0 in existing designs?

A: Yes. The substitute meets all critical electrical and mechanical parameters. Identical resistance, tolerance, power rating, temperature coefficient, and axial package type ensure direct compatibility in circuit applications without design modification.

Q: What is the significance of the operating temperature range difference (150°C vs. 155°C)?

A: The substitute's extended upper temperature limit of 155°C exceeds the original specification. This provides additional thermal margin and is not a limiting factor for substitution in any application where the original part was qualified.

Q: Does the flame retardant coating on the RNMF14FTC47R0 affect electrical performance?

A: No. Flame retardant coating is a safety enhancement that does not alter the electrical characteristics specified in this comparison. All electrical parameters remain equivalent.

Q: Are there any dimensional concerns with the slightly larger substitute component?

A: The dimensional difference (0.003" diameter and 0.004" length) is negligible for standard through-hole PCB layouts. Both components use identical axial packaging and will fit standard component footprints without modification.

Q: What is the inventory status for the substitute part?

A: The RNMF14FTC47R0 is in active production with 96,002 pieces available in new original stock, ensuring reliable supply for production requirements.

Q: Are there any compliance or certification differences between the two parts?

A: Both parts share identical ECCN and HTSUS classifications. The substitute carries RoHS3 compliance and REACH unaffected status, meeting current regulatory standards. The original part's MSL rating of 1 (Unlimited) is favorable for storage and handling.
