ERO-S2PHF3603 Equivalent & Substitute Parts

Part Overview

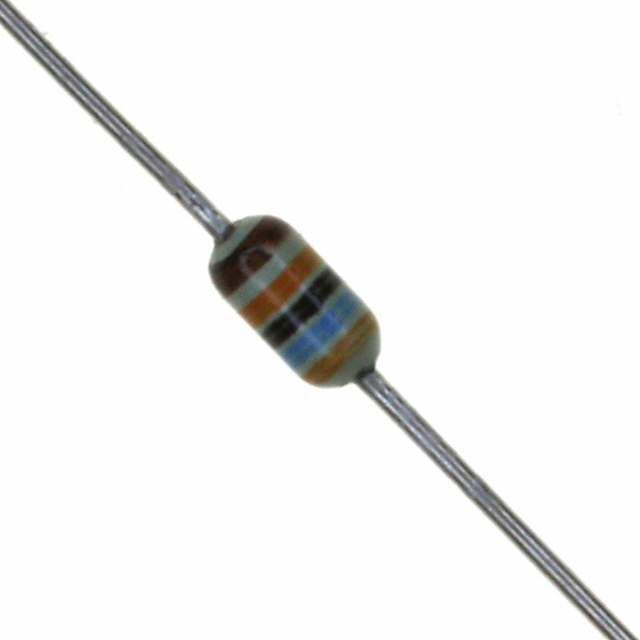

The ERO-S2PHF3603 is a 360 kOhms ±1% 0.25W through-hole resistor with axial metal film construction manufactured by Panasonic Electronic Components. This component is classified as obsolete, making equivalent substitute parts necessary for ongoing production, maintenance, and repair applications. The part operates across a temperature range of -55°C to 150°C and is suitable for general-purpose electronic circuit applications requiring precision resistive elements.

Substiute Parts

ERO-S2PHF3603

Panasonic Electronic ComponentsIn Stock: 1095ERO-S2PHF3603 Datasheet

Current PartRFQ

RNMF14FTC360K

Stackpole Electronics IncIn Stock: 2850RNMF14FTC360K Datasheet

DirectRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution of the ERO-S2PHF3603 is determined by strict equivalence across the following critical parameters:

• Resistance value: 360 kOhms
• Tolerance: ±1%
• Power rating: 0.25W (1/4W)
• Composition: Metal Film
• Temperature coefficient: ±50ppm/°C
• Package configuration: Axial through-hole
• Number of terminations: 2

The RNMF14FTC360K from Stackpole Electronics Inc meets all these requirements and qualifies as a direct substitute. Both parts maintain identical electrical specifications and package footprints suitable for PCB integration.

Parameter Comparison

Engineering Selection Recommendations

The RNMF14FTC360K is the qualified substitute for the obsolete ERO-S2PHF3603. Selection is based on the following factors:

• All critical electrical parameters match exactly: resistance, tolerance, power rating, temperature coefficient, and operating temperature range
• Both components use identical metal film construction and axial package configuration
• The RNMF14FTC360K maintains active product status, ensuring long-term availability and supply chain continuity
• The substitute offers ROHS3 compliance and flame retardant coating with safety features, providing enhanced environmental and safety compliance
• Physical dimensions are within acceptable tolerance for standard PCB through-hole mounting applications
• The operating temperature range of the substitute (-55°C to 155°C) exceeds the original specification, providing additional thermal margin

Frequently Asked Questions (FAQ)

Q: Can the RNMF14FTC360K be used as a direct replacement for the ERO-S2PHF3603?

A: Yes. Both components share identical electrical specifications (360 kOhms, ±1%, 0.25W, ±50ppm/°C) and axial package configuration. The substitute is suitable for direct PCB substitution in existing designs.

Q: What are the physical dimension differences between these parts?

A: The ERO-S2PHF3603 measures 0.067" diameter by 0.126" length, while the RNMF14FTC360K measures 0.070" diameter by 0.130" length. These minor differences are within standard PCB through-hole tolerances and do not affect mounting compatibility.

Q: Does the RNMF14FTC360K offer any additional benefits?

A: The substitute includes flame retardant coating and safety features. It is ROHS3 compliant and REACH unaffected, providing enhanced environmental compliance compared to the obsolete original part.

Q: Are there any temperature range considerations?

A: The RNMF14FTC360K operates from -55°C to 155°C, compared to the original -55°C to 150°C specification. This provides an additional 5°C of upper temperature margin, suitable for applications requiring extended thermal performance.

Q: What is the availability status of the substitute?

A: The RNMF14FTC360K is classified as active product status with 2826 pieces in stock, ensuring reliable supply chain availability for production and repair applications.
