ERJ-MP4MF10MU Equivalent & Substitute Parts

Part Overview

The ERJ-MP4MF10MU is a 10 mOhms ±1% 1W chip resistor in 2512 (6432 Metric) package manufactured by Panasonic Electronic Components. This metal element current sense resistor is designed for automotive applications with AEC-Q200 qualification and moisture resistance. The part is currently obsolete, making equivalent and substitute parts necessary for ongoing design support and production continuity.

Key Parameters

Parameter	Value
Resistance	10 mOhms
Tolerance	±1%
Power Rating	1W
Package / Case	2512 (6432 Metric)
Composition	Metal Element
Temperature Coefficient	±75ppm/°C
Operating Temperature Range	-65°C ~ 170°C
Automotive Rating	AEC-Q200
RoHS Status	ROHS3 Compliant
Moisture Sensitivity Level	1 (Unlimited)

Substitute Part Grouping Explanation

Substitution for the ERJ-MP4MF10MU is determined by the following critical parameters: resistance value (10 mOhms), tolerance (±1%), package type (2512 / 6432 Metric), composition (metal element), and functional application (current sense). The substitute parts are grouped based on power rating compatibility and product status.

Group 1: Direct Equivalents (1W Power Rating, Active Status)

WSL2512R0100FEA (Vishay Dale): Identical 1W rating with enhanced features (anti-sulfur, pulse withstanding)
WSLT2512R0100FEA (Vishay Dale): Identical 1W rating with extended operating temperature range (-65°C ~ 275°C)

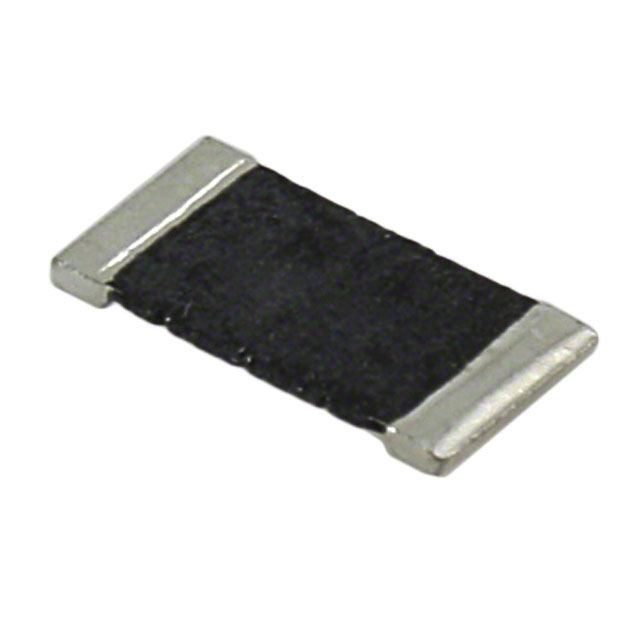

WSLS2512R0100FHEB (Vishay Dale): Identical 1W rating with anti-sulfur and pulse withstanding features

Group 2: Upgraded Substitutes (2W Power Rating, Active Status)

ERJ-MS4HF10MU (Panasonic): Same manufacturer, upgraded to 2W power rating
WSL2512R0100FEA18 (Vishay Dale): Upgraded to 2W power rating with pulse withstanding capability
CSNL2512FT10L0 (Stackpole Electronics): 2W power rating alternative from different manufacturer

All substitute parts maintain the same 10 mOhms resistance, ±1% tolerance, 2512 package, metal element composition, and AEC-Q200 automotive qualification as the original part.

Parameter Comparison

Manufacturer Part Number	Manufacturer	Resistance	Tolerance	Power (W)	Temp Coeff (ppm/°C)	Operating Temp (°C)	Package	AEC-Q200	Product Status	RoHS3
ERJ-MP4MF10MU	Panasonic	10 mOhms	±1%	1W	±75	-65 ~ 170	2512	Yes	Obsolete	Yes
ERJ-MS4HF10MU	Panasonic	10 mOhms	±1%	2W	±75	-65 ~ 170	2512	Yes	Active	Yes
CSNL2512FT10L0	Stackpole Electronics	10 mOhms	±1%	2W	±50	-55 ~ 170	2512	No	Active	Yes
WSL2512R0100FEA	Vishay Dale	10 mOhms	±1%	1W	±75	-65 ~ 170	2512	Yes	Active	Yes
WSL2512R0100FEA18	Vishay Dale	10 mOhms	±1%	2W	±75	-65 ~ 170	2512	Yes	Active	Yes
WSLS2512R0100FHEB	Vishay Dale	10 mOhms	±1%	1W	±75	-65 ~ 170	2512	Yes	Active	Yes
WSLT2512R0100FEA	Vishay Dale	10 mOhms	±1%	1W	±75	-65 ~ 275	2512	Yes	Active	Yes

Engineering Selection Recommendations

For Direct Replacement (1W Applications): Select WSL2512R0100FEA, WSLS2512R0100FHEB, or WSLT2512R0100FEA. All three maintain 1W power rating and are in active production status. WSL2512R0100FEA and WSLS2512R0100FHEB provide identical operating temperature range (-65°C ~ 170°C) matching the original part. WSLT2512R0100FEA extends the upper operating temperature to 275°C for applications requiring enhanced thermal performance.

For Power Margin Applications (2W Upgrade): Select ERJ-MS4HF10MU for same-manufacturer continuity with doubled power capacity, or WSL2512R0100FEA18 for Vishay Dale equivalent with 2W rating. Both maintain AEC-Q200 qualification and identical operating temperature range.

For Non-Automotive Applications: CSNL2512FT10L0 from Stackpole Electronics provides 2W rating and active production status but lacks AEC-Q200 qualification. This part is suitable only for applications where automotive qualification is not required.

All recommended substitutes are ROHS3 compliant and maintain MSL 1 (Unlimited) moisture sensitivity rating.

Frequently Asked Questions (FAQ)

Q: Can I use a 2W rated part as a direct substitute for the 1W ERJ-MP4MF10MU? A: Yes. A 2W rated resistor with identical resistance, tolerance, package, and composition can be used in place of a 1W part. The higher power rating provides additional thermal margin and does not affect circuit functionality. Verify that board layout and thermal management accommodate the substitute part's physical dimensions.

Q: What is the difference between WSL2512R0100FEA and WSL2512R0100FEA18? A: Both are Vishay Dale 10 mOhms ±1% 2512 package resistors with identical electrical specifications. The primary difference is power rating: WSL2512R0100FEA is rated 1W, while WSL2512R0100FEA18 is rated 2W. The "18" designation indicates the higher power variant.

Q: Does CSNL2512FT10L0 meet automotive requirements? A: CSNL2512FT10L0 is not AEC-Q200 qualified. It is suitable for commercial and industrial applications but should not be used in designs requiring automotive qualification.

Q: Are there packaging differences between substitute parts? A: Yes. ERJ-MP4MF10MU and WSL2512R0100FEA are supplied in Cut Tape (CT) & Digi-Reel packaging. ERJ-MS4HF10MU, CSNL2512FT10L0, WSL2512R0100FEA18, WSLS2512R0100FHEB, and WSLT2512R0100FEA are supplied in Tape & Reel (TR) packaging. Verify compatibility with your assembly process and equipment.

Q: What is the temperature coefficient difference between CSNL2512FT10L0 and other substitutes? A: CSNL2512FT10L0 has a temperature coefficient of ±50ppm/°C, while all other substitutes have ±75ppm/°C. For precision current sensing applications, the lower temperature coefficient of CSNL2512FT10L0 may provide improved stability across temperature variations.

Q: Can WSLT2512R0100FEA be used in high-temperature applications? A: Yes. WSLT2512R0100FEA operates from -65°C to 275°C, extending 105°C above the original ERJ-MP4MF10MU specification (-65°C ~ 170°C). This part is suitable for applications requiring extended high-temperature performance.
