EQ-34W Equivalent & Substitute Parts

Part Overview

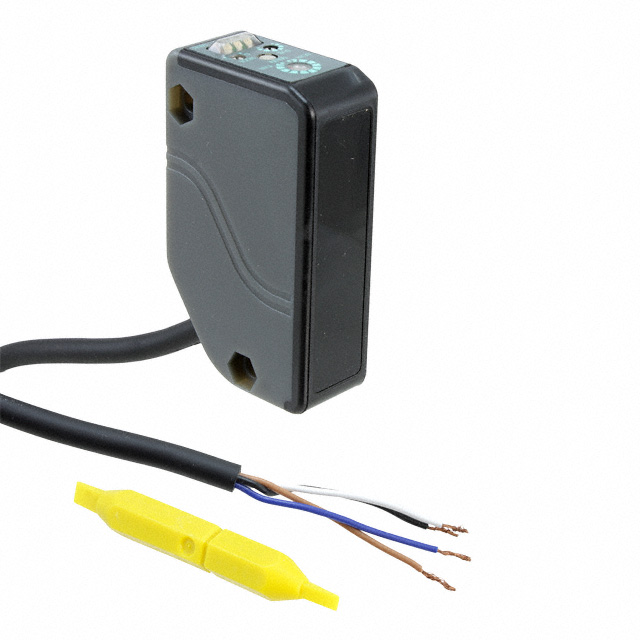

The EQ-34W is a reflective optical sensor manufactured by Panasonic Industrial Automation Sales, designed for non-contact object detection applications. This sensor operates with a sensing distance of 78.7" (2m), featuring NPN open collector output and infrared light source technology. The product is currently classified as obsolete, making identification of equivalent substitute parts essential for system maintenance and component replacement in existing installations.

Substiute Parts

EQ-34W

Panasonic Industrial Automation SalesIn Stock: 833EQ-34W Datasheet

Current PartRFQ

EQ-34

Panasonic Industrial Automation SalesIn Stock: 1130EQ-34 Datasheet

SimilarRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitute parts for the EQ-34W are identified based on functional equivalence across the following critical parameters:

• Sensing method (reflective)
• Sensing distance (78.7" / 2m)
• Output configuration (NPN - Open Collector)
• Light source (infrared)
• Voltage supply range (10V ~ 30V)
• Response time (2ms)
• Ingress protection rating (IP67)
• Connection method (cable)
• Operating temperature range (-20°C ~ 55°C)

The EQ-34 is classified as a direct substitute, sharing identical electrical and mechanical specifications with the EQ-34W while differing in product status and packaging configuration.

Parameter Comparison

Engineering Selection Recommendations

The EQ-34 serves as the functional equivalent for EQ-34W applications. Both components maintain identical electrical and mechanical specifications across all critical parameters including sensing distance, output configuration, voltage supply range, and operating temperature limits.

The EQ-34 carries Last Time Buy status, indicating limited availability with no future production planned. The EQ-34W is classified as obsolete. Both components meet RoHS compliance requirements, with EQ-34 meeting the more recent ROHS3 standard.

Selection between these components should be based on current inventory availability and packaging requirements. The EQ-34 is supplied in box packaging, whereas EQ-34W packaging is not specified. Both components are suitable for direct substitution in reflective optical sensing applications requiring 2-meter sensing distance with NPN open collector output.

Frequently Asked Questions (FAQ)

Q: Can EQ-34 directly replace EQ-34W in existing installations?

A: Yes. The EQ-34 and EQ-34W share identical electrical and mechanical specifications across all functional parameters including sensing distance, output configuration, voltage supply, response time, and operating temperature range. Direct substitution is supported.

Q: What is the difference between EQ-34W and EQ-34?

A: The primary differences are product status and packaging. EQ-34W is obsolete, while EQ-34 is Last Time Buy. EQ-34 is supplied in box packaging. All electrical and mechanical specifications are identical.

Q: Are there compliance differences between EQ-34W and EQ-34?

A: Both components are RoHS compliant. EQ-34 meets the ROHS3 standard, representing a more recent compliance certification. Both components carry identical ECCN and HTSUS classifications.

Q: What parameters determine substitution eligibility for reflective optical sensors in this category?

A: Substitution eligibility is determined by matching sensing method, sensing distance, output configuration, light source type, voltage supply range, response time, ingress protection rating, connection method, and operating temperature range.

Q: Does packaging affect functional compatibility?

A: Packaging does not affect functional compatibility. EQ-34 box packaging is a logistics consideration only and does not impact electrical or mechanical performance in the application.
