EN3P8M Equivalent & Substitute Parts

Part Overview

The EN3P8M is an 8-position circular connector receptacle with male pins, manufactured by Switchcraft Inc. as part of the EN3® series. This component features solder cup termination, bayonet lock fastening, and gold-plated contacts rated for 6.5A at 250VAC/DC. The EN3P8M is currently listed as obsolete, making identification of active equivalent parts essential for ongoing procurement and system maintenance. The substitute part EN3P8MX provides functional continuity while maintaining current product status and availability.

Substiute Parts

EN3P8M

Switchcraft Inc.In Stock: 1097EN3P8M Datasheet

Current PartRFQ

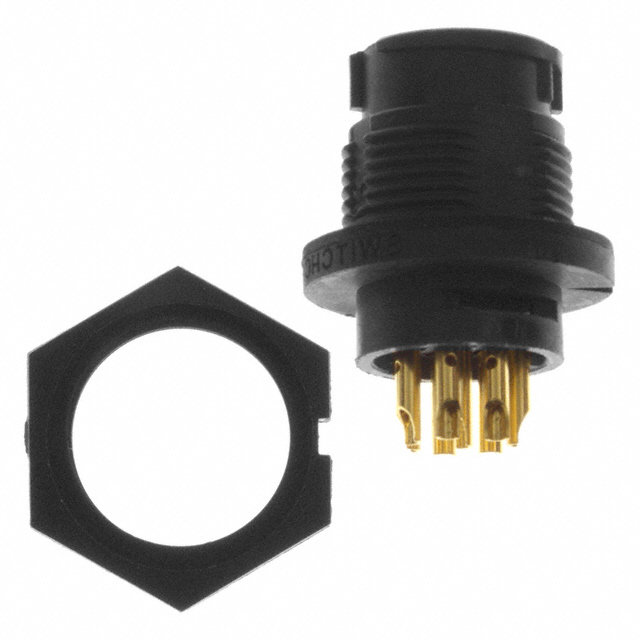

EN3P8MX

Switchcraft Inc.In Stock: 1746EN3P8MX Datasheet

DirectRFQ

Key Parameters

Substitute Part Grouping Explanation

The EN3P8MX qualifies as a direct substitute for the EN3P8M based on identical electrical and mechanical parameters. Both parts share the same connector configuration (8-position receptacle with male pins), termination method (solder cup), fastening mechanism (bayonet lock), contact material (copper alloy with gold plating), and performance ratings (6.5A, 250VAC/DC). The operating temperature range (-40°C ~ 65°C), ingress protection rating (IP66/IP68), and material flammability classification (UL94 V-0) are identical across both parts. Both maintain ROHS3 compliance and REACH unaffected status. The primary distinction is product status: EN3P8M is obsolete while EN3P8MX is active, with EN3P8MX available in bulk packaging and higher inventory levels.

Parameter Comparison

Engineering Selection Recommendations

The EN3P8MX is the appropriate selection for new designs and ongoing procurement. As an active product within the EN3® series, EN3P8MX maintains full manufacturer support and supply chain continuity. Both parts satisfy identical electrical specifications (6.5A, 250VAC/DC), mechanical requirements (8-position, bayonet lock, panel mount), and regulatory compliance (ROHS3, REACH unaffected, UL94 V-0). The EN3P8MX is available in bulk packaging with higher inventory levels, supporting production requirements. For legacy systems currently using EN3P8M, direct substitution with EN3P8MX is electrically and mechanically compatible without design modification.

Frequently Asked Questions (FAQ)

Q: Can EN3P8MX directly replace EN3P8M in existing applications? A: Yes. Both parts are identical in electrical performance (6.5A, 250VAC/DC), mechanical configuration (8-position receptacle, bayonet lock, solder cup termination), and environmental ratings (IP66/IP68, -40°C ~ 65°C). Direct substitution is compatible without circuit or mechanical redesign.

Q: What is the primary reason to transition from EN3P8M to EN3P8MX? A: EN3P8M is obsolete while EN3P8MX is active. EN3P8MX ensures ongoing availability, manufacturer support, and supply chain reliability for current and future production.

Q: Are there packaging differences between EN3P8M and EN3P8MX? A: EN3P8M packaging is not specified. EN3P8MX is supplied in bulk packaging, which is standard for active production inventory.

Q: Do both parts meet the same regulatory and compliance standards? A: Yes. Both EN3P8M and EN3P8MX are ROHS3 compliant, REACH unaffected, and rated UL94 V-0 for material flammability. Both carry identical ECCN (EAR99) and HTSUS (8536.69.4020) classifications.

Q: Are the contact materials and finishes identical? A: Yes. Both parts feature copper alloy contacts with gold plating for mating surfaces, ensuring equivalent electrical performance and corrosion resistance.
