EN3P6M Equivalent & Substitute Parts

Part Overview

The EN3P6M is a 6-position circular connector receptacle with male pins, manufactured by Switchcraft Inc. as part of the EN3® series. This component features solder cup termination, bayonet lock fastening, and gold-plated contacts rated for 7.5A at 250VAC/DC. The EN3P6M is classified as obsolete, making identification of active equivalent parts essential for ongoing procurement and system maintenance. The substitute part EN3P6MX provides functional continuity with identical electrical and mechanical specifications while maintaining active product status.

Substiute Parts

EN3P6M

Switchcraft Inc.In Stock: 834EN3P6M Datasheet

Current PartRFQ

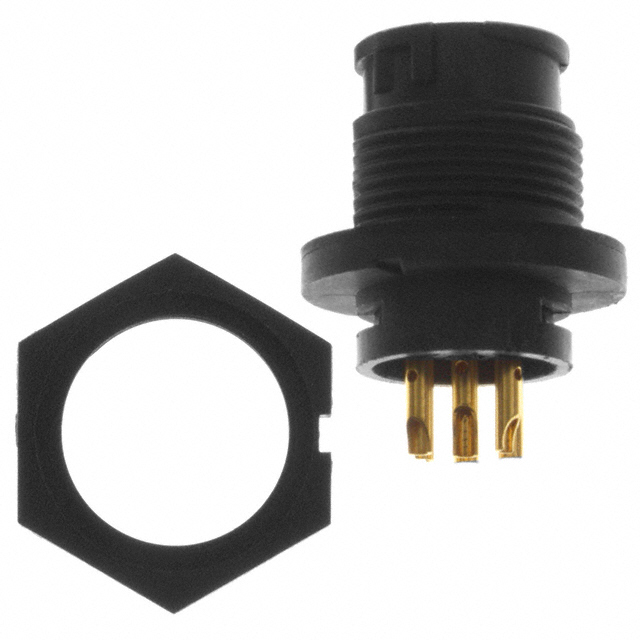

EN3P6MX

Switchcraft Inc.In Stock: 1637EN3P6MX Datasheet

DirectRFQ

Key Parameters

Substitute Part Grouping Explanation

The EN3P6M and EN3P6MX are direct equivalents within the EN3® circular connector series. Substitution is valid based on identical alignment across all critical electrical and mechanical parameters: both maintain 6-position configuration, bayonet lock fastening, solder cup termination, gold-plated copper alloy contacts, 7.5A current rating, 250VAC/DC voltage rating, IP66/IP68 ingress protection, and UL94 V-0 flammability compliance. The key differentiator is product status: EN3P6M is obsolete while EN3P6MX is active, with EN3P6MX available in bulk packaging. Both parts comply with ROHS3 and REACH requirements and operate across the identical -40°C to 65°C temperature range.

Parameter Comparison

Engineering Selection Recommendations

The EN3P6MX is the direct active equivalent for the obsolete EN3P6M. Selection of EN3P6MX is appropriate for new designs and ongoing procurement due to its active product status and higher inventory availability. Both parts maintain identical electrical performance specifications, mechanical interface characteristics, and regulatory compliance certifications. The transition from EN3P6M to EN3P6MX requires no design modifications, as all critical parameters remain constant. Bulk packaging availability for EN3P6MX supports higher-volume production requirements.

Frequently Asked Questions (FAQ)

Q: Can EN3P6MX directly replace EN3P6M in existing applications? A: Yes. EN3P6MX is a direct functional equivalent with identical electrical ratings (7.5A, 250VAC/DC), mechanical configuration (6-position, bayonet lock, solder cup), and environmental specifications (IP66/IP68, -40°C to 65°C). No circuit or mechanical modifications are required.

Q: Why is EN3P6M listed as obsolete? A: EN3P6M has reached end-of-life status. EN3P6MX maintains the same specifications and serves as the active replacement within the EN3® series.

Q: Are there packaging differences between EN3P6M and EN3P6MX? A: EN3P6M is supplied in standard packaging, while EN3P6MX is available in bulk packaging. This distinction affects procurement quantities and logistics but does not impact component performance or compatibility.

Q: Do both parts meet the same regulatory requirements? A: Yes. Both EN3P6M and EN3P6MX are ROHS3 compliant, REACH unaffected, and classified under ECCN EAR99. Both carry UL94 V-0 flammability certification.

Q: What applications are these connectors suitable for? A: Both parts are specified for general purpose, instrumentation, marine, and medical applications requiring sealed, keyed circular connectors with high current capacity and environmental protection.
