EN3P5MRAPC Equivalent & Substitute Parts

Part Overview

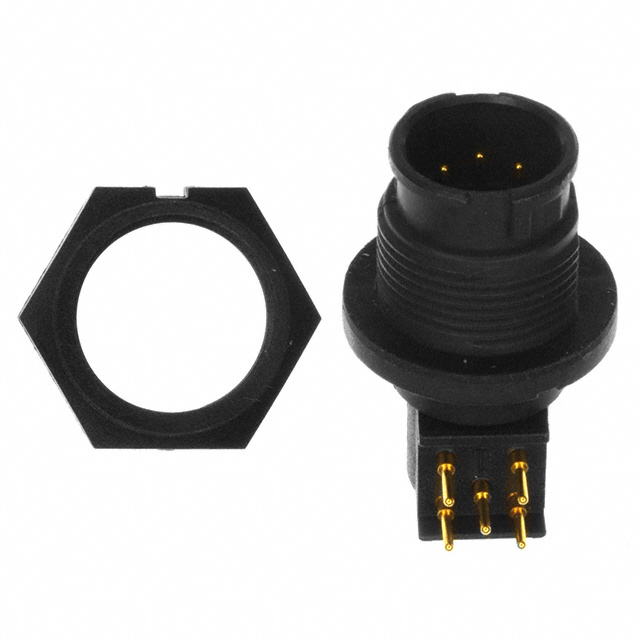

The EN3P5MRAPC is a 5-position circular connector receptacle with male pins manufactured by Switchcraft Inc. as part of the EN3® series. This component is designed for panel mount, through-hole applications with bayonet lock fastening and solder termination. The connector features gold-plated contacts, IP66/IP68 ingress protection, and operates across a temperature range of -40°C to 65°C.

The EN3P5MRAPC is classified as obsolete. Identifying equivalent substitute parts ensures design continuity and supply chain reliability for applications currently utilizing this connector.

Substiute Parts

EN3P5MRAPC

Switchcraft Inc.In Stock: 759EN3P5MRAPC Datasheet

Current PartRFQ

EN3P5MRAPCX

Switchcraft Inc.In Stock: 1231EN3P5MRAPCX Datasheet

DirectRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution of the EN3P5MRAPC is determined by strict equivalence across the following critical parameters:

• Connector type: Receptacle with male pins
• Number of positions: 5
• Mounting configuration: Panel mount, through hole, right angle with bulkhead front side nut
• Termination method: Solder
• Fastening mechanism: Bayonet lock with keyed orientation
• Electrical specifications: 4A current rating, 250VAC/DC voltage rating
• Environmental protection: IP66/IP68 ingress protection
• Contact material and finish: Copper alloy with gold plating
• Operating temperature range: -40°C to 65°C
• Flammability compliance: UL94 V-0

The substitute part EN3P5MRAPCX maintains identical specifications across all these parameters, with the primary distinction being product status and regulatory compliance.

Parameter Comparison

Engineering Selection Recommendations

The EN3P5MRAPCX is the direct substitute for the obsolete EN3P5MRAPC. Both components are electrically and mechanically equivalent across all functional parameters. The EN3P5MRAPCX offers the advantage of active product status, ensuring ongoing availability and supply chain support.

The EN3P5MRAPCX achieves ROHS3 compliance, whereas the EN3P5MRAPC is non-compliant. For applications subject to RoHS regulations or requiring compliance documentation, the EN3P5MRAPCX is the appropriate selection. Both components maintain identical REACH and ECCN classifications.

Frequently Asked Questions (FAQ)

Q: Are EN3P5MRAPC and EN3P5MRAPCX electrically interchangeable?

A: Yes. Both components share identical electrical specifications: 4A current rating, 250VAC/DC voltage rating, and gold-plated copper alloy contacts. They are direct electrical equivalents.

Q: Are EN3P5MRAPC and EN3P5MRAPCX mechanically interchangeable?

A: Yes. Both components feature identical mechanical configurations: 5-position receptacle with male pins, panel mount through-hole right-angle mounting, bulkhead front side nut, bayonet lock fastening, and keyed orientation. They are direct mechanical equivalents.

Q: What is the primary difference between these two parts?

A: The EN3P5MRAPCX is an active product with ROHS3 compliance, while the EN3P5MRAPC is obsolete and RoHS non-compliant. The EN3P5MRAPCX is the recommended selection for new designs and ongoing supply requirements.

Q: Can I use EN3P5MRAPCX as a replacement in existing designs using EN3P5MRAPC?

A: Yes. The EN3P5MRAPCX is a direct substitute with no design modifications required. It maintains all functional, electrical, and mechanical specifications of the original component.

Q: What is the difference in packaging between these parts?

A: The EN3P5MRAPC is supplied in standard packaging, while the EN3P5MRAPCX is supplied in bulk packaging. Both are suitable for production assembly.

Q: Are there any compliance considerations when switching from EN3P5MRAPC to EN3P5MRAPCX?

A: The EN3P5MRAPCX provides ROHS3 compliance, which may be required for applications subject to RoHS regulations. Both components maintain identical REACH and ECCN classifications.
