EN3P5M Equivalent & Substitute Parts

Part Overview

The EN3P5M is a 5-position circular connector receptacle with male pins, manufactured by Switchcraft Inc. as part of the EN3® series. This panel-mount connector features solder cup termination, bayonet lock fastening, and gold-plated contacts rated for 7.5A at 250VAC/DC. The connector is designed for general purpose, instrumentation, marine, and medical applications with IP66/IP68 ingress protection.

The EN3P5M is classified as obsolete. Identifying equivalent substitute parts ensures design continuity and maintains supply chain reliability for applications requiring this connector specification.

Substiute Parts

EN3P5M

Switchcraft Inc.In Stock: 752EN3P5M Datasheet

Current PartRFQ

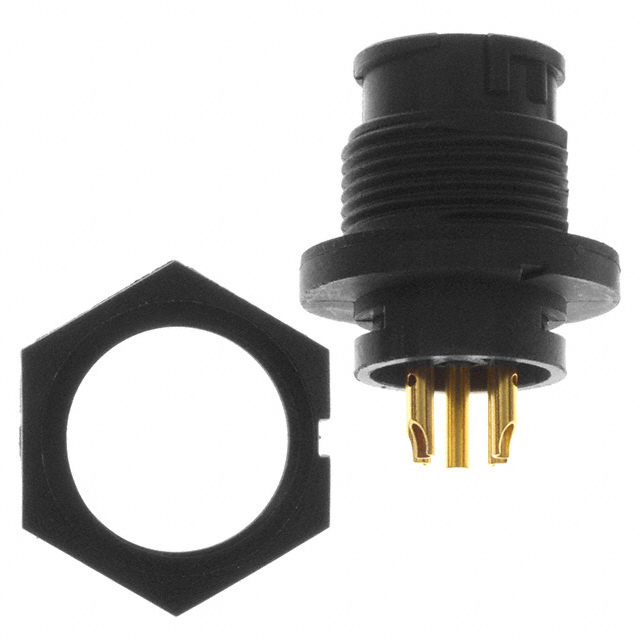

EN3P5MX

Switchcraft Inc.In Stock: 1696EN3P5MX Datasheet

DirectRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution of the EN3P5M is based on electrical and mechanical compatibility within the EN3® series. The substitute part EN3P5MX maintains identical specifications across all critical parameters that determine functional equivalence:

Key Parameters for Substitution:

• Connector type: Receptacle with male pins
• Position count: 5 positions
• Termination method: Solder cup
• Fastening mechanism: Bayonet lock
• Contact finish: Gold plating
• Electrical ratings: 7.5A at 250VAC/DC
• Environmental protection: IP66/IP68
• Operating temperature range: -40°C ~ 65°C
• Compliance: ROHS3 and REACH standards

The EN3P5MX is an active product variant within the same series, providing functional equivalence with improved availability and current manufacturing status.

Parameter Comparison

Engineering Selection Recommendations

The EN3P5MX is the direct substitute for the obsolete EN3P5M. Both parts are manufactured by Switchcraft Inc. within the EN3® series and share identical electrical, mechanical, and environmental specifications. The EN3P5MX maintains active product status with current manufacturing support, ensuring long-term availability and supply chain continuity.

Both parts comply with ROHS3 and REACH requirements, meeting current regulatory standards for electronic components. The electrical ratings, termination method, and environmental protection ratings are equivalent, supporting direct substitution in applications originally designed for the EN3P5M.

Frequently Asked Questions (FAQ)

Q: Can EN3P5MX be used as a direct replacement for EN3P5M?

A: Yes. The EN3P5MX is electrically and mechanically equivalent to the EN3P5M. Both connectors share identical specifications for position count, termination type, fastening mechanism, electrical ratings, and environmental protection. The primary difference is product status: EN3P5M is obsolete while EN3P5MX is active.

Q: What is the difference between EN3P5M and EN3P5MX?

A: The parts are functionally identical. The "X" designation in EN3P5MX indicates the active variant within the EN3® series. EN3P5MX has current manufacturing support and improved inventory availability compared to the obsolete EN3P5M.

Q: Are the packaging specifications different between these parts?

A: Packaging differs in availability. EN3P5M was supplied in standard packaging, while EN3P5MX is available in bulk packaging. This does not affect the connector's electrical or mechanical performance.

Q: Do both parts meet the same compliance standards?

A: Yes. Both EN3P5M and EN3P5MX are ROHS3 compliant and REACH unaffected. Both carry the same ECCN (EAR99) and HTSUS code (8536.69.4020) classifications.

Q: What applications are these connectors suitable for?

A: Both connectors are rated for general purpose, instrumentation, marine, and medical applications. The IP66/IP68 ingress protection rating and UL94 V-0 flammability rating support use in demanding environments requiring dust and water resistance.

Q: What is the current rating and voltage specification?

A: Both connectors are rated for 7.5A at 250VAC/DC, with an operating temperature range of -40°C to 65°C.
