EN3P4M Circular Connector Equivalent & Substitute Parts

Part Overview

The EN3P4M is a 4-position circular connector receptacle with male pins manufactured by Switchcraft Inc. as part of the EN3® series. This component features solder cup termination, bayonet lock fastening, and gold-plated contacts rated for 7.5A at 250VAC/DC. The connector is designed for panel mount applications with bulkhead front-side nut mounting and provides IP66/IP68 ingress protection suitable for general purpose, instrumentation, marine, and medical applications.

The EN3P4M is classified as obsolete. Identifying equivalent substitute parts ensures design continuity and supply chain reliability for applications currently utilizing this connector.

Substiute Parts

EN3P4M

Switchcraft Inc.In Stock: 1075EN3P4M Datasheet

Current PartRFQ

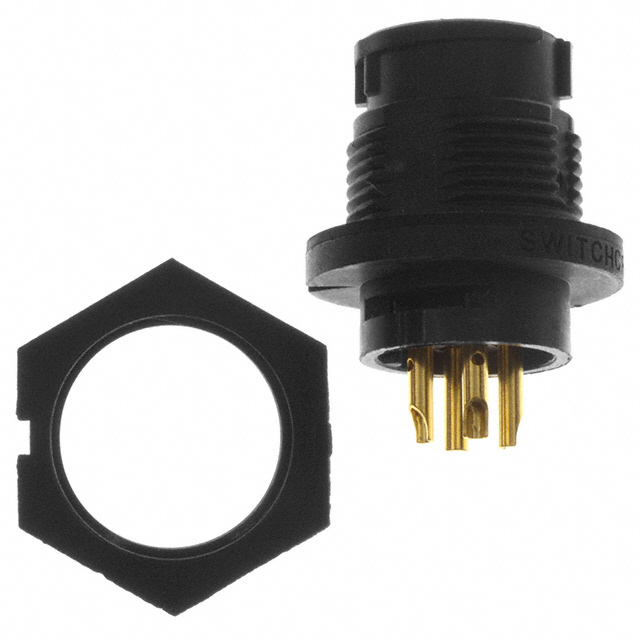

EN3P4MX

Switchcraft Inc.In Stock: 8201EN3P4MX Datasheet

DirectRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution of the EN3P4M is based on electrical and mechanical parameter equivalence within the EN3® series. The substitute part EN3P4MX maintains identical specifications across all critical parameters that define connector functionality and compatibility:

• Connector configuration: 4-position receptacle with male pins
• Electrical performance: 7.5A current rating, 250VAC/DC voltage rating
• Mechanical interface: Bayonet lock fastening, panel mount with bulkhead front-side nut
• Termination: Solder cup
• Environmental protection: IP66/IP68 ingress protection
• Material and safety compliance: Thermoplastic shell, UL94 V-0 flammability rating, ROHS3 compliant

The primary distinction between EN3P4M and EN3P4MX is product status and packaging configuration. EN3P4MX is active production status with bulk packaging, whereas EN3P4M is obsolete.

Parameter Comparison

Engineering Selection Recommendations

EN3P4MX is the direct substitute for EN3P4M. Both parts are manufactured by Switchcraft Inc. within the EN3® series and share identical electrical, mechanical, and environmental specifications. The EN3P4MX is the preferred selection for new designs and component replacement due to its active production status, ensuring long-term availability and supply chain stability.

Both parts maintain ROHS3 compliance and REACH unaffected status, meeting current regulatory requirements. The gold-plated copper alloy contacts and UL94 V-0 thermoplastic shell provide equivalent performance characteristics across all specified applications including general purpose, instrumentation, marine, and medical use cases.

Frequently Asked Questions (FAQ)

Q: Can EN3P4MX be used as a direct replacement for EN3P4M?

A: Yes. EN3P4MX is electrically and mechanically equivalent to EN3P4M. Both connectors feature identical 4-position configuration, 7.5A current rating, 250VAC/DC voltage rating, bayonet lock fastening, solder cup termination, and IP66/IP68 ingress protection.

Q: What is the primary difference between EN3P4M and EN3P4MX?

A: EN3P4M is classified as obsolete, while EN3P4MX is active production status. EN3P4MX is supplied in bulk packaging, whereas EN3P4M packaging configuration is not specified. Both parts are functionally identical.

Q: Are there any compliance or certification differences?

A: No. Both EN3P4M and EN3P4MX maintain identical compliance status: ROHS3 compliant, REACH unaffected, UL94 V-0 flammability rating, and EAR99 export classification.

Q: What applications are these connectors suitable for?

A: Both connectors are rated for general purpose, instrumentation, marine, and medical applications. The IP66/IP68 ingress protection rating supports use in environments requiring dust-tight and water-resistant performance.

Q: What is the operating temperature range?

A: Both EN3P4M and EN3P4MX operate across -40°C to 65°C, suitable for industrial and environmental extremes within this range.

Q: Are the solder cup terminations compatible with standard PCB assembly processes?

A: Solder cup termination is designed for direct wire soldering. Compatibility with specific assembly processes depends on implementation details not provided in the component specifications.
