EN3C3F Equivalent & Substitute Parts

Part Overview

The EN3C3F is a 3-position circular connector plug with female sockets manufactured by Switchcraft Inc. as part of the EN3® series. This connector features solder cup termination, bayonet lock fastening, and gold-plated contacts rated for 7.5A at 250VAC/DC. The EN3C3F is classified as obsolete, making identification of active equivalent parts essential for ongoing procurement and system maintenance.

Substiute Parts

EN3C3F

Switchcraft Inc.In Stock: 790EN3C3F Datasheet

Current PartRFQ

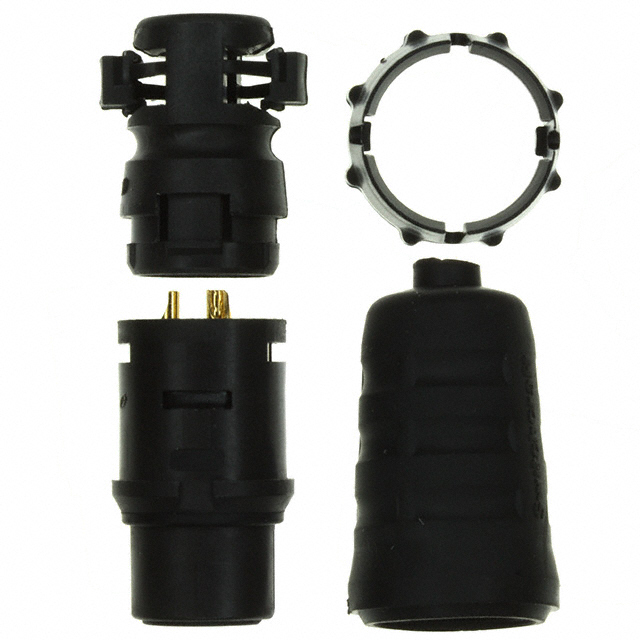

EN3C3FX

Switchcraft Inc.In Stock: 3139EN3C3FX Datasheet

DirectRFQ

Key Parameters

Substitute Part Grouping Explanation

The EN3C3FX qualifies as a direct substitute for the EN3C3F based on identical electrical and mechanical parameters. Both parts share the same connector architecture, pin configuration, and performance specifications. The substitution is valid because the following critical parameters are identical:

• Connector type: Plug with female sockets
• Number of positions: 3
• Termination method: Solder cup
• Fastening mechanism: Bayonet lock
• Current and voltage ratings: 7.5A at 250VAC/DC
• Contact finish: Gold plating
• Ingress protection: IP66/IP68
• Operating temperature range: -40°C ~ 65°C
• Material compliance: UL94 V-0, ROHS3 compliant

The primary distinction is product status: EN3C3F is obsolete while EN3C3FX is active, with EN3C3FX serving as the current production equivalent.

Parameter Comparison

Engineering Selection Recommendations

The EN3C3FX is the appropriate selection for new designs and procurement activities. As an active product with identical electrical and mechanical specifications to the obsolete EN3C3F, it provides direct compatibility while ensuring access to current manufacturing and supply chain support. Both parts maintain ROHS3 compliance and REACH unaffected status, satisfying regulatory requirements for industrial, marine, and medical applications.

For existing systems currently using EN3C3F, the EN3C3FX provides seamless integration without circuit redesign or connector interface modification.

Frequently Asked Questions (FAQ)

Q: Can EN3C3FX replace EN3C3F in existing applications?

A: Yes. The EN3C3FX is electrically and mechanically identical to EN3C3F. Both connectors support 7.5A at 250VAC/DC, feature 3-position female socket configuration with solder cup termination, and maintain identical bayonet lock fastening and gold contact finish specifications.

Q: What is the difference between EN3C3F and EN3C3FX?

A: The primary difference is product status. EN3C3F is obsolete, while EN3C3FX is active production. The EN3C3FX is the current equivalent part number for ongoing procurement.

Q: Are there packaging differences between these parts?

A: EN3C3F is supplied in standard packaging, while EN3C3FX is available in bulk packaging. This distinction does not affect connector performance or compatibility.

Q: Do both parts meet the same compliance standards?

A: Yes. Both EN3C3F and EN3C3FX are ROHS3 compliant, REACH unaffected, and rated UL94 V-0 for material flammability. Both carry EAR99 export classification and 8536.69.4020 HTSUS code.

Q: What applications are these connectors suitable for?

A: Both parts are rated for general purpose, instrumentation, marine, and medical applications with IP66/IP68 ingress protection and -40°C to 65°C operating temperature range.
