EM221808H Terminal Block Header - Equivalent & Substitute Parts

Part Overview

The EM221808H is an 8-position terminal block header manufactured by Eaton Electronics Division, designed for through-hole solder mounting applications. This component features male pins with 4-side shrouding, 90° right-angle orientation, and 0.200" (5.08mm) pitch spacing. The part is actively produced and maintains inventory availability of 1120 pieces in new original condition. Terminal block headers of this specification are essential for applications requiring reliable electrical connections in industrial control systems, power distribution, and signal routing where standardized pitch and voltage ratings are critical design parameters.

Substiute Parts

EM221808H

Eaton - Electronics DivisionIn Stock: 1183EM221808H Datasheet

Current PartRFQ

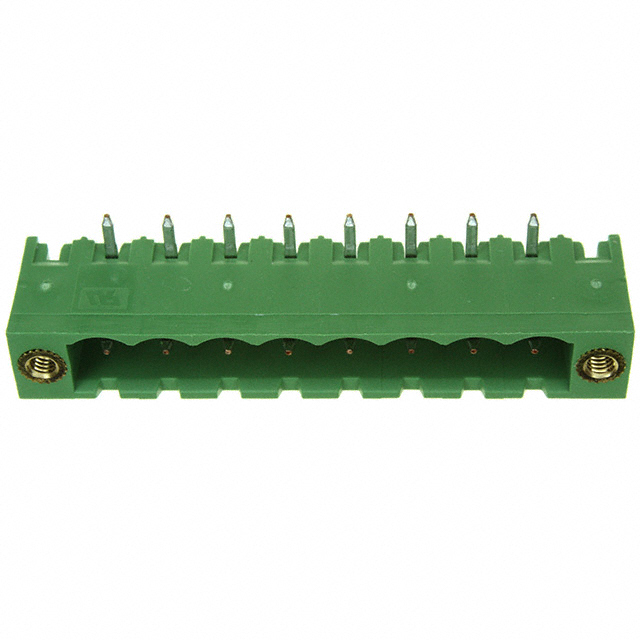

796866-8

TE Connectivity AMP ConnectorsIn Stock: 784796866-8 Datasheet

SimilarRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution eligibility for the EM221808H is determined by strict alignment of the following critical parameters:

Position and Pitch Compatibility: The substitute part must maintain 8 positions with 0.200" (5.08mm) pitch spacing to ensure mechanical and electrical compatibility with mating connectors and PCB layouts.

Orientation and Mounting: The 90° right-angle orientation and through-hole solder termination are non-negotiable for form-factor compatibility in existing designs.

Electrical Ratings: Substitute parts must meet or exceed the 300 V UL voltage rating. Current rating of the substitute (15 A for TE Connectivity 796866-8) exceeds the main part specification (12 A), providing equivalent or superior performance.

Shrouding Configuration: The 4-side shrouded male pin header configuration must be maintained for mechanical protection and proper mating interface.

Compliance and Material Standards: Both parts must maintain UL94 V-0 flammability rating and active product status to ensure regulatory compliance and supply chain continuity.

The TE Connectivity AMP Connectors part number 796866-8 meets all substitution criteria within these parameters.

Parameter Comparison

Engineering Selection Recommendations

Primary Selection - EM221808H (Eaton Electronics Division): The EM221808H remains the primary specification when original design validation and exact parameter matching are required. This part carries ROHS3 compliance certification and maintains active production status with substantial inventory availability (1120 pieces). The operating temperature range of -55°C to 105°C supports extended environmental applications.

Substitute Selection - 796866-8 (TE Connectivity AMP Connectors): The 796866-8 qualifies as a direct substitute based on matching mechanical form factor, electrical ratings, and compliance certifications. The substitute provides enhanced current capacity (15 A versus 12 A) and extended upper operating temperature (110°C versus 105°C), representing equivalent or superior performance within the specified parameter set. RoHS compliance is confirmed. Inventory availability is 700 pieces in new original condition.

Selection Criteria: Choose the EM221808H when design documentation explicitly specifies Eaton Euro-Mag EM2218 series components or when supply chain continuity with the original manufacturer is a contractual requirement. Select the 796866-8 when equivalent electrical and mechanical performance is acceptable and TE Connectivity supply chain integration is preferred, or when the enhanced current rating provides operational margin for the application.

Both parts carry identical HTSUS classification (8536.69.4040) and ECCN designation (EAR99), confirming regulatory equivalence for export and procurement purposes.
