ELXP07100 Equivalent & Substitute Parts

Part Overview

The ELXP07100 is a 7-position terminal block plug manufactured by Amphenol PCD, featuring female sockets with 0.138" (4.60mm) pitch and 180° free-hanging in-line configuration. This component is designed for screw-based wire termination in industrial control and power distribution applications. The part maintains Active product status with 1052 units in current inventory. Substitute parts are identified when equivalent electrical performance, mechanical compatibility, and regulatory compliance can be maintained across different manufacturers while accommodating application-specific constraints such as wire gauge ranges, current ratings, and operating temperature requirements.

Substiute Parts

ELXP07100

Amphenol PCDIn Stock: 1063ELXP07100 Datasheet

Current PartRFQ

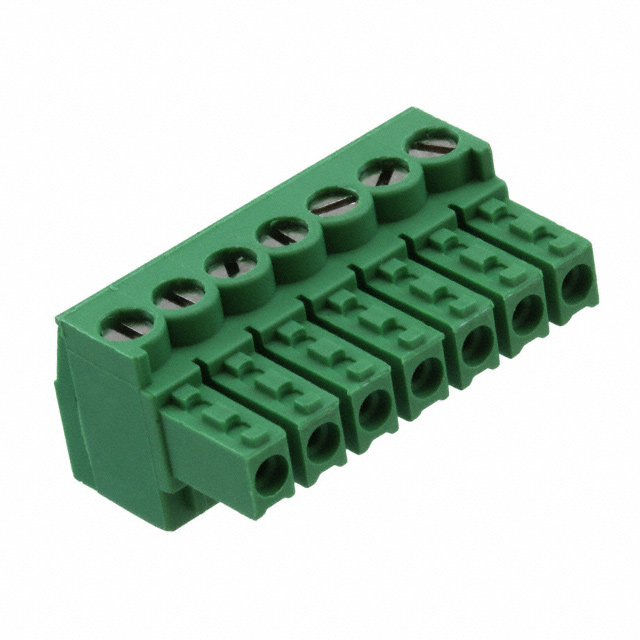

284506-7

TE Connectivity AMP ConnectorsIn Stock: 1611284506-7 Datasheet

SimilarRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution eligibility for the ELXP07100 is determined by strict alignment of the following critical parameters:

Mandatory Matching Parameters:

• Number of Positions: 7
• Pitch: 0.138" (4.60mm)
• Type: Plug, Female Sockets
• Plug Wire Entry: 180°
• Termination Style: Screw - Rising Cage Clamp
• Mounting Type: Free Hanging (In-Line)
• Voltage - UL: 300 V
• Material Flammability Rating: UL94 V-0

Allowable Variation Parameters:

• Current - UL: Substitute must meet or exceed 12 A
• Wire Gauge - AWG: Substitute range must encompass or exceed 16-28 AWG
• Operating Temperature: Substitute must support minimum 125°C
• RoHS/Regulatory Compliance: Substitute must maintain equivalent or superior compliance status

The substitute part 284506-7 (TE Connectivity AMP Connectors, Buchanan series) satisfies all mandatory matching parameters and maintains functional equivalence within the allowable variation range.

Parameter Comparison

Engineering Selection Recommendations

The ELXP07100 maintains Active product status with established supply availability (1052 units in stock). The substitute part 284506-7 is also Active with higher inventory levels (1513 units). Both components carry equivalent flammability certification (UL94 V-0) and RoHS compliance status.

Selection between these parts must account for the following specification deviations in the substitute:

The 284506-7 operates at a maximum temperature of 110°C, which is 15°C below the ELXP07100 specification of 125°C. Current capacity is rated at 11 A versus 12 A for the primary part. Wire gauge compatibility is broader in the substitute (14-30 AWG versus 16-28 AWG), accommodating larger conductor sizes.

For applications operating within -40°C to 110°C temperature range and requiring maximum 11 A current capacity, the 284506-7 provides functional equivalence. For applications requiring the full 125°C operating temperature or 12 A current rating, the ELXP07100 is the appropriate selection.

Frequently Asked Questions (FAQ)

Q: Can 284506-7 be used as a direct replacement for ELXP07100 in all applications?

A: No. The 284506-7 has lower maximum operating temperature (110°C versus 125°C) and lower current rating (11 A versus 12 A). Substitution is valid only for applications operating within these reduced specifications.

Q: What are the key mechanical compatibility factors?

A: Both parts share identical pitch (0.138" / 4.60mm), position count (7), wire entry angle (180°), and insulation height (0.437" / 11.10mm). Mechanical interchangeability is confirmed for these dimensions.

Q: How do the wire gauge ranges differ?

A: ELXP07100 accepts 16-28 AWG; 284506-7 accepts 14-30 AWG. The substitute accommodates larger conductors (14 AWG) and smaller conductors (30 AWG) than the primary part.

Q: Are both parts RoHS compliant?

A: Yes. ELXP07100 is RoHS Compliant; 284506-7 is ROHS3 Compliant. Both meet current regulatory requirements.

Q: What packaging differences exist?

A: ELXP07100 is supplied in Tray packaging; 284506-7 is supplied in Bulk packaging. Packaging format does not affect electrical or mechanical performance.

Q: Which part should be selected for high-temperature applications?

A: ELXP07100 is required for applications requiring sustained operation at temperatures above 110°C, up to its maximum rating of 125°C.
