ELVT07600 Terminal Block Plug 7 Position 3.81mm Equivalent & Substitute Parts

Part Overview

The ELVT07600 is a 7-position terminal block plug manufactured by Amphenol PCD, featuring female sockets with 0.150" (3.81mm) pitch spacing and 270° free-hanging in-line mounting. This component is classified as Active product status and is RoHS compliant. Equivalent and substitute parts are identified when applications require alternative sourcing due to inventory constraints, lead time considerations, or specific operational requirements within the allowed electrical and mechanical parameter ranges.

Substiute Parts

ELVT07600

Amphenol PCDIn Stock: 735ELVT07600 Datasheet

Current PartRFQ

1850712

Phoenix ContactIn Stock: 9211850712 Datasheet

SimilarRFQ

EDZ1710/7

On Shore Technology Inc.In Stock: 1276EDZ1710/7 Datasheet

SimilarRFQ

OSTTS07315B

On-Shore TechnologyIn Stock: 1164OSTTS07315B Datasheet

SimilarRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution eligibility for the ELVT07600 is determined by strict adherence to the following critical parameters:

Core Compatibility Requirements:

• 7 positions with 0.150" (3.81mm) pitch spacing (non-negotiable)
• Plug configuration with female sockets
• Free hanging in-line mounting type
• Screw-based termination (cage clamp or pressure clip variants acceptable)
• Voltage rating minimum 300 V (UL)
• Wire gauge support for 16-28 AWG minimum
• RoHS compliance status

Acceptable Parameter Variations:

• Plug wire entry angle (270°, 180°, or unspecified)
• Termination mechanism variant (rising cage clamp vs. pressure clip)
• Current rating (minimum 8 A acceptable; ELVT07600 rated 12 A UL)
• Housing color (black, green acceptable)
• Torque specification range (0.2-0.4 Nm acceptable)
• Wire strip length (6-9mm acceptable)

The three substitute parts listed below meet all core compatibility requirements while operating within the allowed parameter variation ranges.

Parameter Comparison

Engineering Selection Recommendations

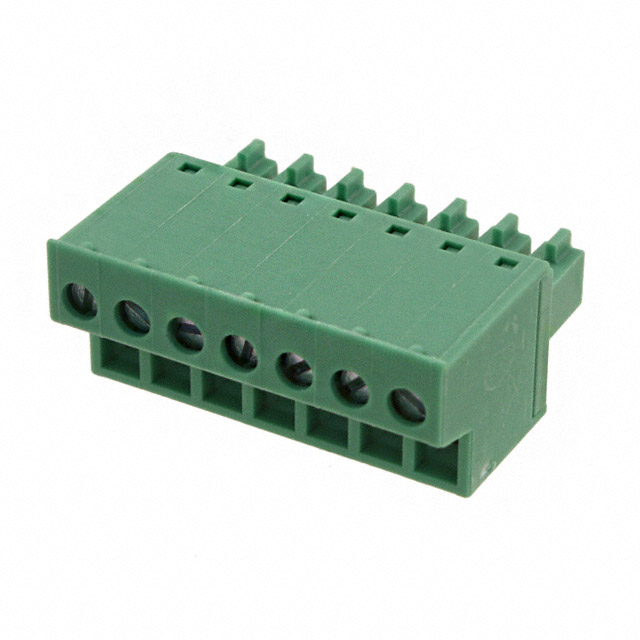

1850712 (Phoenix Contact COMBICON FRONT-MC Series)

This substitute maintains full electrical compatibility with 300 V UL voltage rating and supports 16-30 AWG wire gauge. The primary distinction is the 180° plug wire entry orientation compared to the ELVT07600's 270° configuration, which may require mechanical layout verification in the target application. Current rating of 8 A is lower than the ELVT07600's 12 A specification; applications requiring the full 12 A capacity must not use this substitute. RoHS compliance is confirmed. Screw torque specification (0.22-0.25 Nm) aligns with ELVT07600 requirements.

EDZ1710/7 (On Shore Technology EDZ1710 Series)

This substitute meets core electrical parameters with 300 V UL voltage rating and 16-28 AWG wire gauge support. Operating temperature range (-30°C to 105°C) is narrower than ELVT07600's 125°C maximum, limiting use in high-temperature applications. ROHS3 compliance is confirmed. Torque specification (0.4 Nm) exceeds ELVT07600 requirements and must be observed during installation. Wire strip length (7mm) is within acceptable variation.

OSTTS07315B (On-Shore Technology OSTTS Series)

This substitute provides 300 V UL voltage rating and 16-28 AWG wire gauge compatibility. Operating temperature range (-40°C to 115°C) accommodates lower ambient conditions but does not reach the ELVT07600's 125°C maximum. ROHS3 compliance is confirmed. Torque specification (0.2 Nm) is lower than ELVT07600 and must be applied accordingly. Housing material is brass rather than polyamide, representing a material composition change that may affect mechanical and thermal characteristics in specific mounting environments.

Frequently Asked Questions (FAQ)

Q: Can I use substitute part 1850712 in applications requiring 12 A current capacity?

A: No. The 1850712 is rated for 8 A maximum under UL specifications, which is below the ELVT07600's 12 A rating. Applications requiring 12 A current capacity must use the ELVT07600 or verify that the actual circuit load does not exceed 8 A.

Q: What is the significance of the 270° versus 180° plug wire entry angle difference between ELVT07600 and 1850712?

A: Plug wire entry angle determines the physical orientation of the wire connection relative to the connector body. A 270° entry differs from 180° entry in spatial positioning. Mechanical layout verification is required to confirm the substitute orientation is compatible with the target application's physical constraints and wire routing.

Q: Are all substitute parts RoHS compliant?

A: Yes. ELVT07600 is RoHS Compliant. Substitutes 1850712 is RoHS Compliant. Substitutes EDZ1710/7 and OSTTS07315B are ROHS3 Compliant. All meet RoHS regulatory requirements.

Q: Can EDZ1710/7 be used in applications operating at 125°C?

A: No. EDZ1710/7 has a maximum operating temperature of 105°C, which is below the ELVT07600's 125°C specification. Applications requiring 125°C operation must use ELVT07600 or confirm that actual operating temperature does not exceed 105°C.

Q: What torque values must be applied when installing each part?

A: ELVT07600 requires 0.25 Nm. 1850712 requires 0.22-0.25 Nm. EDZ1710/7 requires 0.4 Nm. OSTTS07315B requires 0.2 Nm. Each part must be installed using its specified torque value to ensure proper contact pressure and electrical performance.

Q: Are there packaging differences between the main part and substitutes?

A: Yes. ELVT07600 is supplied in Tray packaging. Substitutes 1850712, EDZ1710/7, and OSTTS07315B are supplied in Bulk packaging. Bulk packaging may require additional handling and organization procedures compared to tray packaging.

Q: Can OSTTS07315B be used in applications where housing material must be polyamide?

A: No. OSTTS07315B has a brass housing, while ELVT07600 uses polyamide (PA46) nylon 4/6. Applications with specific housing material requirements must use ELVT07600 or confirm that brass housing is acceptable for the target application.
