ELVT06600 Terminal Block Plug 6 Position 3.81mm Equivalent & Substitute Parts

Part Overview

The ELVT06600 is a 6-position terminal block plug manufactured by Amphenol PCD, featuring female sockets with 0.150" (3.81mm) pitch spacing and 270° free-hanging wire entry orientation. This component is classified as Active product status and is RoHS compliant. Substitute parts are identified when equivalent electrical ratings, mechanical dimensions, and termination compatibility align with the original specification, enabling direct replacement in applications where wire entry angle or housing color variations are acceptable.

Substiute Parts

ELVT06600

Amphenol PCDIn Stock: 968ELVT06600 Datasheet

Current PartRFQ

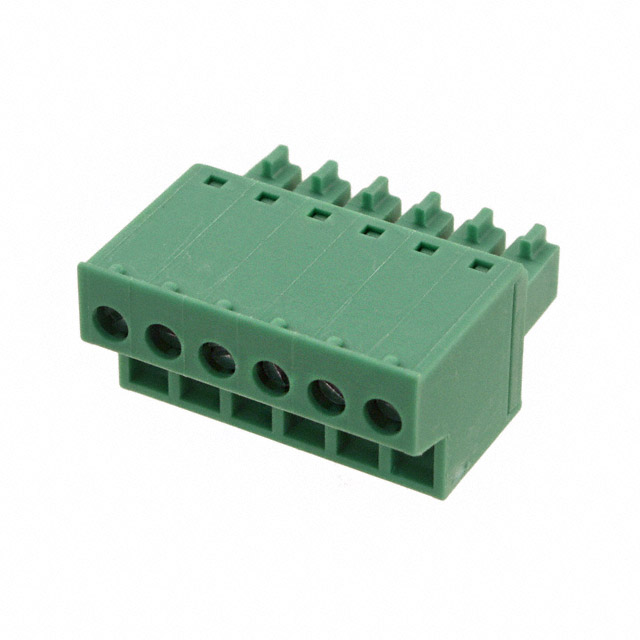

1850709

Phoenix ContactIn Stock: 11651850709 Datasheet

SimilarRFQ

EDZ1700/6

On Shore Technology Inc.In Stock: 1214EDZ1700/6 Datasheet

SimilarRFQ

EDZ1710/6

On Shore Technology Inc.In Stock: 1112EDZ1710/6 Datasheet

SimilarRFQ

TS06315A0000G

Amphenol AnytekIn Stock: 1552TS06315A0000G Datasheet

SimilarRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution eligibility is determined by the following critical parameters:

• Position Count & Pitch: All substitute parts maintain 6 positions at 0.150" (3.81mm) pitch, ensuring mechanical and electrical compatibility with mating connectors.
• Voltage & Current Ratings: Substitute parts must support minimum 300 V UL rating and minimum 8 A UL current rating. The ELVT06600 operates at 12 A; substitutes rated at 8 A represent a reduced current capacity and require application-level verification.
• Wire Gauge Compatibility: All substitutes accept 16-28 AWG wire, matching the original specification.
• Termination Method: Screw-based termination is maintained across all substitutes, ensuring compatible installation procedures.
• Flammability & Compliance: UL94 V-0 rating and RoHS compliance are preserved in all substitute options.
• Wire Entry Angle: The ELVT06600 features 270° entry; substitutes vary (180°, 90°, or unspecified), affecting physical installation geometry but not electrical function.

Parameter Comparison

Engineering Selection Recommendations

1850709 (Phoenix Contact COMBICON FRONT-MC)

• Maintains 300 V UL voltage rating and UL94 V-0 flammability compliance
• Current rating reduced to 8 A; suitable for applications with maximum continuous current ≤ 8 A
• Wire entry angle differs (180° vs. 270°); physical installation geometry requires layout verification
• Screw termination method differs (Pressure Clip vs. Rising Cage Clamp); installation procedure adjustment required
• ROHS3 compliant; active product status

EDZ1700/6 (On Shore Technology Inc.)

• Maintains 300 V UL voltage rating and 16-28 AWG wire gauge compatibility
• Current rating not specified; application-level current verification required
• Operating temperature range (-30°C ~ 105°C) is narrower than ELVT06600 (125°C maximum); unsuitable for high-temperature applications exceeding 105°C
• Flammability rating not specified; UL94 V-0 compliance cannot be confirmed
• ROHS3 compliant; active product status

EDZ1710/6 (On Shore Technology Inc.)

• Maintains 300 V UL voltage rating and 16-28 AWG wire gauge compatibility
• Current rating not specified; application-level current verification required
• Operating temperature range (-30°C ~ 105°C) is narrower than ELVT06600 (125°C maximum); unsuitable for high-temperature applications exceeding 105°C
• Flammability rating not specified; UL94 V-0 compliance cannot be confirmed
• ROHS3 compliant; active product status

TS06315A0000G (Amphenol Anytek 02-381 Series)

• Maintains 300 V UL voltage rating, UL94 V-0 flammability compliance, and Rising Cage Clamp termination method
• Current rating reduced to 8 A; suitable for applications with maximum continuous current ≤ 8 A
• Operating temperature range (-40°C ~ 115°C) accommodates the ELVT06600 maximum of 125°C within lower bound; upper bound at 115°C is below 125°C specification
• Wire entry angle differs (90° vs. 270°); physical installation geometry requires layout verification
• ROHS3 compliant; active product status

Frequently Asked Questions (FAQ)

Q: Can I use a substitute part with a lower current rating (8 A vs. 12 A)? A: Substitution is permissible only if the application's maximum continuous current does not exceed 8 A. The circuit must be designed to operate within the substitute part's electrical limits. Current exceeding the substitute rating will result in component failure or safety hazard.

Q: How does wire entry angle affect substitution? A: Wire entry angle (270°, 180°, or 90°) determines the physical orientation of incoming wires relative to the connector body. Different angles require different PCB or panel layout geometries. Substitution with a different wire entry angle requires mechanical layout verification to ensure wires can be routed without strain or interference.

Q: Are EDZ1700/6 and EDZ1710/6 interchangeable? A: Both parts share identical electrical specifications (300 V UL, 16-28 AWG, screw termination) and operating temperature range (-30°C ~ 105°C). They are mechanically and electrically interchangeable. Selection between them depends on availability and series preference (EDZ1700 vs. EDZ1710).

Q: What is the significance of the operating temperature difference? A: The ELVT06600 is rated to 125°C maximum. EDZ1700/6 and EDZ1710/6 are rated to 105°C maximum. If the application requires sustained operation above 105°C, these On Shore Technology parts are not suitable. TS06315A0000G (rated to 115°C) remains below the 125°C specification and requires application-level thermal analysis.

Q: Does RoHS compliance differ between the main part and substitutes? A: The ELVT06600 is RoHS Compliant. All substitute parts are ROHS3 Compliant. ROHS3 represents an updated compliance standard and is compatible with RoHS-compliant supply chains. No functional or electrical difference results from this compliance designation change.

Q: Can I substitute based on pitch and position count alone? A: No. While pitch (3.81mm) and position count (6) are necessary conditions for mechanical mating, electrical ratings (voltage, current), termination method, and operating temperature must also align with application requirements. Incomplete parameter matching will result in component failure or safety violation.

Q: What packaging differences exist between the main part and substitutes? A: The ELVT06600 is supplied in Tray packaging. Substitutes are supplied in Bulk packaging. Packaging affects handling, storage, and logistics but does not affect component function or electrical performance. Bulk packaging typically requires manual sorting or tape-and-reel conversion for automated assembly.
