ELVP10100 Terminal Block Plug - Equivalent & Substitute Parts

Part Overview

The ELVP10100 is a 10-position terminal block plug manufactured by Amphenol PCD, featuring female sockets with 0.150" (3.81mm) pitch spacing and 180° free-hanging in-line mounting. This component is actively produced and stocked with 969 units available. Terminal block plugs of this configuration are essential in industrial control systems, power distribution panels, and modular equipment where reliable screw-terminal connections are required for field wiring. Substitute parts are identified to provide alternative sourcing options when the primary part is unavailable or when design requirements necessitate equivalent functionality from different manufacturers.

Key Parameters

Parameter	ELVP10100
Number of Positions	10
Pitch	0.150" (3.81mm)
Type	Plug, Female Sockets
Mounting Type	Free Hanging (In-Line)
Plug Wire Entry	180°
Termination Style	Screw - Rising Cage Clamp
Wire Gauge Range	16-28 AWG
Current Rating (UL)	12 A
Voltage Rating (UL)	300 V
Operating Temperature	125°C
Material Flammability Rating	UL94 V-0
RoHS Status	RoHS Compliant

Substitute Part Grouping Explanation

Substitution eligibility for the ELVP10100 is determined by strict alignment of the following critical parameters:

Position Count & Pitch: All substitute parts must have exactly 10 positions with 0.150" (3.81mm) pitch spacing to ensure mechanical and electrical compatibility with mating connectors and PCB layouts.
Connector Type & Orientation: Plug configuration with female sockets and 180° wire entry orientation must be maintained for proper in-line installation.
Mounting Configuration: Free-hanging in-line mounting type is required for identical form factor and installation method.
Termination Method: Screw-based termination with rising cage clamp design ensures compatibility with existing wiring practices and tooling.
Electrical Ratings: Voltage rating of 300 V (UL) is a minimum requirement. Current ratings of substitute parts must support the intended application load.
Environmental Compliance: RoHS compliance and UL94 V-0 flammability rating are mandatory for regulatory and safety requirements.

The three substitute parts listed below meet these core substitution criteria while offering alternative sourcing from TE Connectivity AMP Connectors, Phoenix Contact, and On Shore Technology Inc.

Parameter Comparison

Parameter	ELVP10100 (Amphenol PCD)	1-284507-0 (TE Connectivity)	1803659 (Phoenix Contact)	EDZ1550/10 (On Shore Technology)
Number of Positions	10	10	10	10
Pitch	0.150" (3.81mm)	0.150" (3.81mm)	0.150" (3.81mm)	0.150" (3.81mm)
Type	Plug, Female Sockets	Plug, Female Sockets	Plug, Female Sockets	Plug, Female Sockets
Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line)	Free Hanging (In-Line)	Free Hanging (In-Line)
Plug Wire Entry	180°	180°	180°	Not specified
Termination Style	Screw - Rising Cage Clamp	Screw - Rising Cage Clamp	Screw - Rising Cage Clamp	Screw
Wire Gauge Range (AWG)	16-28	14-30	14-30	16-28
Current Rating (UL)	12 A	11 A	8 A	Not specified
Voltage Rating (UL)	300 V	300 V	300 V	300 V
Operating Temperature	125°C	-40°C ~ 110°C	Not specified	-30°C ~ 105°C
Material Flammability Rating	UL94 V-0	UL94 V-0	UL94 V-0	Not specified
RoHS Status	RoHS Compliant	ROHS3 Compliant	ROHS3 Compliant	ROHS3 Compliant
Insulation Height	0.437" (11.10mm)	0.437" (11.10mm)	0.437" (11.10mm)	Not specified
Contact Material	Copper Alloy	Phosphor Bronze	Not specified	Copper Tin Alloy
Housing Material	Polyamide (PA46), Nylon 4/6	Polyamide (PA66), Nylon 6/6	Polyamide (PA), Nylon	Polyamide (PA), Nylon
Screw Size	Not specified	M2	M2	Not specified
Torque - Screw	0.25 Nm (2.2 Lb-In)	0.31 Nm (2.7 Lb-In)	0.22-0.25 Nm (1.9-2.2 Lb-In)	0.4 Nm (4.6 Lb-In)
Wire Strip Length	6.35mm	5-6mm	7mm	7mm
Moisture Sensitivity Level (MSL)	1 (Unlimited)	1 (Unlimited)	1 (Unlimited)	1 (Unlimited)
ECCN	EAR99	EAR99	EAR99	EAR99
HTSUS	8536.90.4000	8536.90.4000	8536.90.4000	8536.90.4000

Engineering Selection Recommendations

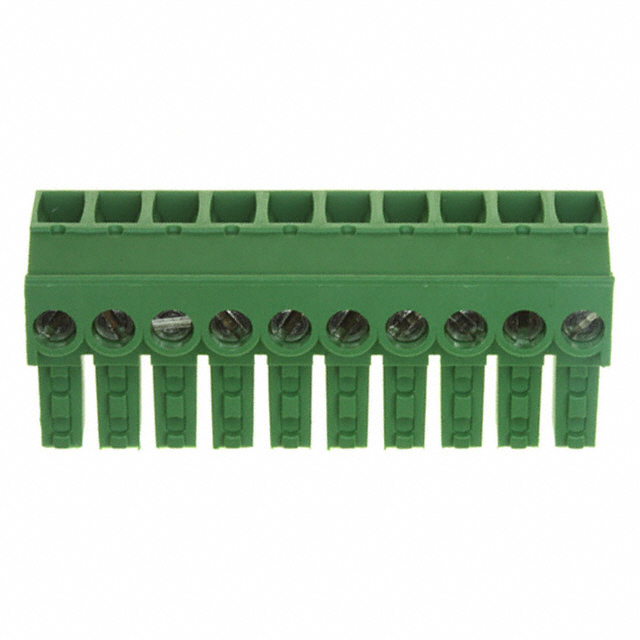

1-284507-0 (TE Connectivity AMP Connectors)

This part is actively produced and maintains full compliance with ROHS3 and UL94 V-0 standards. The 11 A current rating is suitable for applications requiring less than 12 A. Wire gauge acceptance of 14-30 AWG provides broader compatibility with various conductor sizes. The M2 screw specification and 0.31 Nm torque rating are documented. This part is appropriate for new designs or replacements where the slightly lower current rating does not constrain the application.

1803659 (Phoenix Contact COMBICON MC)

This part is actively produced with ROHS3 compliance and UL94 V-0 flammability rating. The 8 A current rating (UL) is the lowest among the substitutes and limits application to lower-power circuits. IEC current rating of 8 A and voltage rating of 320 V are provided. The M2 screw specification and torque range of 0.22-0.25 Nm align with the original part. This part is suitable for applications with current requirements not exceeding 8 A.

EDZ1550/10 (On Shore Technology Inc.)

This part is actively produced with ROHS3 compliance. The wire gauge range of 16-28 AWG matches the original ELVP10100 specification. Operating temperature range of -30°C to 105°C is narrower than the original 125°C maximum. The 0.4 Nm torque specification is higher than the original. Material flammability rating is not specified. This part is suitable for applications within the stated temperature range where the higher torque specification does not present installation constraints.

Frequently Asked Questions (FAQ)

Q: Can I use substitute parts interchangeably with the ELVP10100 in existing installations?

A: Substitution is mechanically and electrically feasible for the three listed parts due to matching position count, pitch, mounting type, and termination method. However, verify that the substitute part's current rating meets or exceeds your application's load requirements. The ELVP10100 is rated at 12 A (UL), while substitutes range from 8 A to 11 A.

Q: What are the key differences in current ratings among these parts?

A: The ELVP10100 is rated at 12 A (UL). The 1-284507-0 is rated at 11 A (UL). The 1803659 is rated at 8 A (UL). The EDZ1550/10 does not specify a UL current rating. Select the substitute based on your circuit's maximum current requirement.

Q: Are all substitute parts RoHS compliant?

A: Yes. The ELVP10100 is RoHS Compliant. All three substitutes are ROHS3 Compliant, which is a more recent standard that maintains backward compatibility with RoHS requirements.

Q: Do the substitute parts have the same operating temperature range?

A: No. The ELVP10100 operates to 125°C. The 1-284507-0 operates from -40°C to 110°C. The 1803659 does not specify an operating temperature range. The EDZ1550/10 operates from -30°C to 105°C. Verify that the substitute's temperature range accommodates your application environment.

Q: What is the difference in wire gauge acceptance?

A: The ELVP10100 accepts 16-28 AWG wire. The 1-284507-0 and 1803659 accept 14-30 AWG, providing broader compatibility with smaller and larger conductors. The EDZ1550/10 accepts 16-28 AWG, matching the original specification.

Q: Are there differences in screw torque specifications?

A: Yes. The ELVP10100 specifies 0.25 Nm (2.2 Lb-In). The 1-284507-0 specifies 0.31 Nm (2.7 Lb-In). The 1803659 specifies 0.22-0.25 Nm (1.9-2.2 Lb-In). The EDZ1550/10 specifies 0.4 Nm (4.6 Lb-In). Use the torque specification provided for each part during installation.

Q: What packaging options are available?

A: The ELVP10100 is supplied in Tray packaging. The 1-284507-0, 1803659, and EDZ1550/10 are supplied in Bulk packaging. Confirm packaging compatibility with your procurement and assembly processes.

Q: Do all parts have the same insulation height?

A: The ELVP10100, 1-284507-0, and 1803659 all specify 0.437" (11.10mm) insulation height. The EDZ1550/10 does not specify insulation height. Verify mechanical fit in your application if using the EDZ1550/10.
