ELMP04041 Equivalent & Substitute Parts

Part Overview

The ELMP04041 is a 4-position wire-to-board terminal block manufactured by Amphenol PCD, designed for horizontal PCB mounting with side entry wire connections. This component features a 0.400" (10.16mm) pitch and through-hole mounting configuration. The product is currently obsolete, making identification of functionally equivalent alternatives essential for ongoing system support and component procurement.

Substiute Parts

ELMP04041

Amphenol PCDIn Stock: 883ELMP04041 Datasheet

Current PartRFQ

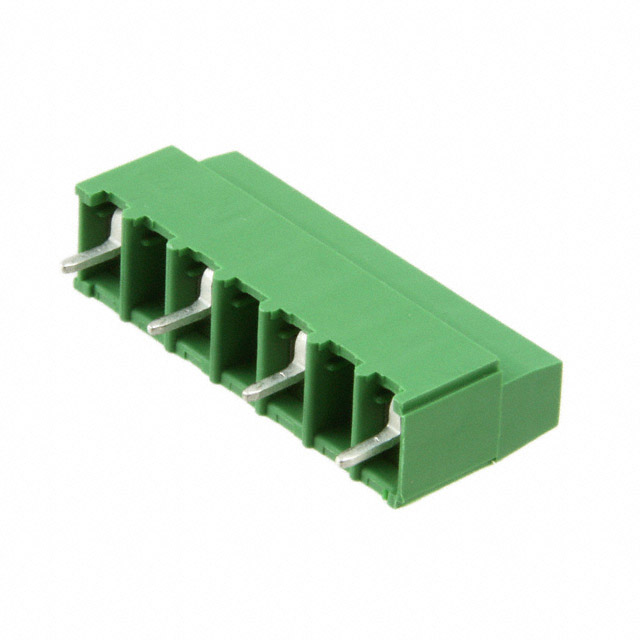

282843-4

TE Connectivity AMP ConnectorsIn Stock: 2282282843-4 Datasheet

SimilarRFQ

Key Parameters

Substitute Part Grouping Explanation

The ELMP04041 can be substituted with the TE Connectivity AMP Connectors part 282843-4 based on the following critical matching parameters:

• 4 positions per level
• 0.400" (10.16mm) pitch spacing
• Horizontal with board mating orientation
• Through-hole PCB mounting
• Screw-based rising cage clamp wire termination
• Side interlocking feature
• Polyamide nylon housing material

These parameters define the mechanical and electrical interface compatibility for direct substitution in PCB applications.

Parameter Comparison

Engineering Selection Recommendations

The 282843-4 serves as a direct mechanical and electrical substitute for the obsolete ELMP04041. Both components are RoHS compliant and share identical pitch, position count, mounting orientation, and wire termination methodology.

The 282843-4 offers active product status with current availability, addressing the obsolescence constraint of the ELMP04041. The substitute maintains through-hole PCB compatibility and side-entry wire connection architecture.

Current and voltage rating differences exist between the two components. The ELMP04041 supports 60 A at 300 V, while the 282843-4 is rated for 17.5 A at 600 V. Wire gauge acceptance ranges differ: ELMP04041 accepts 8-18 AWG versus 282843-4 acceptance of 12-30 AWG. These electrical parameter variations require evaluation against specific application requirements.

Frequently Asked Questions (FAQ)

Q: Can the 282843-4 directly replace the ELMP04041 in existing PCB designs?

A: Mechanical and positional compatibility is confirmed. The 0.400" pitch, 4-position configuration, through-hole mounting, and side-entry screw termination are identical. Electrical parameter differences must be evaluated for your specific application requirements.

Q: What are the key differences between these two terminal blocks?

A: The primary differences are current rating (60 A vs. 17.5 A), voltage rating (300 V vs. 600 V), wire gauge range (8-18 AWG vs. 12-30 AWG), and product status (obsolete vs. active). Housing material composition differs slightly (PA vs. PA66 nylon variant).

Q: Is the 282843-4 suitable for high-current applications originally designed for the ELMP04041?

A: The 282843-4 has a lower current rating of 17.5 A compared to the ELMP04041's 60 A specification. Applications requiring the full 60 A capacity cannot use this substitute without circuit redesign.

Q: Are both components RoHS compliant?

A: Yes, both the ELMP04041 and 282843-4 are RoHS compliant, meeting environmental regulatory requirements.

Q: What wire gauges are compatible with each terminal block?

A: The ELMP04041 accommodates 8-18 AWG wire. The 282843-4 accommodates 12-30 AWG wire. Wire gauge selection must fall within the acceptable range for the chosen component.
