ELM 1-160 Equivalent & Substitute Parts

Part Overview

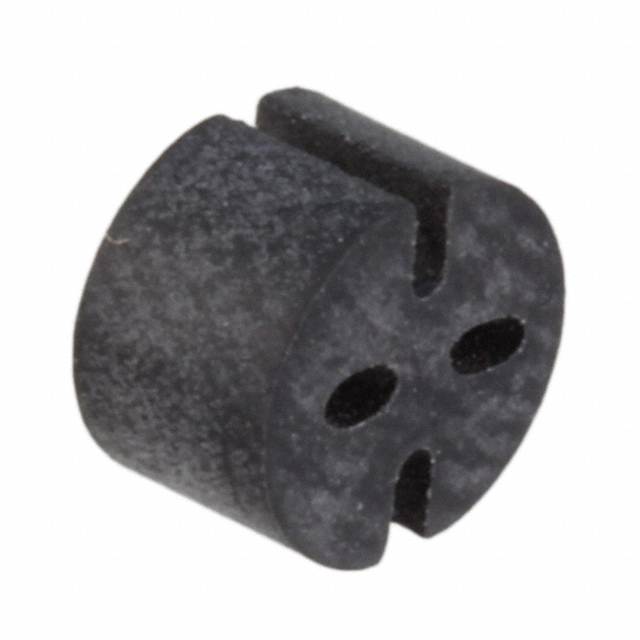

The ELM 1-160 is a T1 3/4 LED standoff manufactured by Bivar Inc., constructed from black PVC with a length of 0.160" (4.06mm). This component is classified as an LED mount with vertical orientation and is currently in active product status. Substitute parts may be necessary due to inventory availability, supply chain constraints, or project-specific sourcing requirements while maintaining electrical and mechanical compatibility.

Substiute Parts

ELM 1-160

Bivar Inc.In Stock: 739ELM 1-160 Datasheet

Current PartRFQ

ELM 3-160

Bivar Inc.In Stock: 1153ELM 3-160 Datasheet

Parametric EquivalentRFQ

Key Parameters

Substitute Part Grouping Explanation

The ELM 3-160 qualifies as a parametric equivalent to the ELM 1-160 based on the following critical substitution parameters:

• LED Type: Both parts use T1 3/4 LED configuration
• Length: Both parts maintain 0.160" (4.06mm) dimension
• Material: Both parts are constructed from black PVC
• Product Status: Both parts are in active status
• RoHS Compliance: Both parts meet ROHS3 compliance requirements
• Moisture Sensitivity Level: Both parts have MSL rating of 1 (Unlimited)
• Packaging Format: Both parts are supplied in bag packaging

These matching parameters ensure that ELM 3-160 can be used as a direct substitute without modification to PCB layouts, assembly processes, or mechanical mounting structures.

Parameter Comparison

Engineering Selection Recommendations

Both the ELM 1-160 and ELM 3-160 are active products manufactured by Bivar Inc. with identical compliance certifications (ROHS3) and equivalent MSL ratings. The ELM 1-160 maintains inventory of 729 pieces, while the ELM 3-160 has 1100 pieces in stock. Selection between these parts should be based on inventory availability and supply chain lead times, as all critical electrical and mechanical parameters are equivalent.

Frequently Asked Questions (FAQ)

Q: Can ELM 3-160 replace ELM 1-160 in my design? A: Yes. Both parts share identical specifications for LED type (T1 3/4), length (0.160"/4.06mm), material (black PVC), and all compliance ratings. No circuit or mechanical modifications are required.

Q: Are there differences in the series designation? A: The ELM 1-160 belongs to the ELM 1 series while ELM 3-160 belongs to the ELM 3 series. The series designation does not affect substitutability when all parametric specifications are identical.

Q: What is the significance of the different HTSUS codes? A: The HTSUS codes reflect classification differences for tariff and regulatory purposes but do not affect the functional or mechanical compatibility of these components.

Q: Should I be concerned about the different base product numbers? A: No. The base product numbers (ELM1-1 for ELM 1-160 and ELM3-1 for ELM 3-160) indicate different product lines within the ELM series. Substitution is governed by the critical parametric specifications, which are identical.

Q: Are both parts suitable for high-reliability applications? A: Both parts meet ROHS3 compliance and have unlimited moisture sensitivity ratings (MSL 1), making them suitable for standard industrial and commercial applications.
