ELM063200 Equivalent & Substitute Parts Reference

Part Overview

The ELM063200 is a 6-position wire-to-board terminal block manufactured by Amphenol PCD, designed for angled PCB mounting with 0.200" (5.08mm) pitch spacing. This component is classified as Active product status and serves applications requiring screw-cage clamp termination with through-hole installation. Substitute parts are identified when equivalent electrical ratings, mechanical compatibility, and functional characteristics align within the allowed parameter specifications for this terminal block category.

Key Parameters

Parameter	Value
Positions Per Level	6
Pitch	0.200" (5.08mm)
Mounting Type	Through Hole
Wire Termination	Screw - Rising Cage Clamp
Voltage Rating	300 V
Wire Gauge Range	12-28 AWG
Features	Interlocking (Side)
Torque - Screw	0.79 Nm (7.0 Lb-In)

Substitute Part Grouping Explanation

Substitute parts for the ELM063200 are qualified based on the following critical parameters:

Positions and Pitch: Both substitute parts maintain 6 positions at 0.200" (5.08mm) pitch, ensuring direct PCB footprint compatibility
Mounting and Termination: Through-hole mounting with screw-cage clamp termination is preserved across all parts
Voltage Rating: All parts are rated for 300 V operation
Interlocking Feature: Side interlocking is maintained for mechanical stability
Torque Specification: Screw torque remains 0.79 Nm (7.0 Lb-In) across all variants

Mating orientation differs between the main part (angled) and substitutes (35° angle with board), representing a geometric variation within the same functional category. Wire gauge acceptance ranges vary slightly (12-30 AWG for substitutes versus 12-28 AWG for main part), with substitutes accommodating the full range of the main part specification.

Parameter Comparison

Parameter	ELM063200 (Main)	1546074-6 (Substitute)	282847-6 (Substitute)
Manufacturer	Amphenol PCD	TE Connectivity AMP Connectors	TE Connectivity AMP Connectors
Positions Per Level	6	6	6
Pitch	0.200" (5.08mm)	0.200" (5.08mm)	0.200" (5.08mm)
Mating Orientation	Angled	35° (145°) Angle with Board	35° (145°) Angle with Board
Current Rating	10 A	17.5 A	17.5 A
Voltage Rating	300 V	300 V	300 V
Wire Gauge	12-28 AWG	12-30 AWG	12-30 AWG
Mounting Type	Through Hole	Through Hole	Through Hole
Wire Termination	Screw - Rising Cage Clamp	Screw - Rising Cage Clamp	Screw - Rising Cage Clamp
Features	Interlocking (Side)	Interlocking (Side)	Interlocking (Side)
Color	Black	Black	Green
Operating Temperature	105°C	-40°C ~ 105°C	Not specified
Housing Material	Polybutylene Terephthalate (PBT)	Polyamide (PA66), Nylon 6/6	Polyamide (PA66), Nylon 6/6
Contact Material - Plating	Brass - Tin Plated	Brass - Tin Plated	Brass - Tin Plated
Torque - Screw	0.79 Nm (7.0 Lb-In)	0.79 Nm (7.0 Lb-In)	0.79 Nm (7.0 Lb-In)
RoHS Status	RoHS Compliant	ROHS3 Compliant	RoHS Compliant
MSL Rating	1 (Unlimited)	1 (Unlimited)	1 (Unlimited)
ECCN	EAR99	EAR99	EAR99
HTSUS Code	8536.90.4000	8536.90.4000	8536.90.4000

Engineering Selection Recommendations

ELM063200 (Amphenol PCD): Select this part when the angled mating orientation is required for the application and current demand does not exceed 10 A. This part maintains Active product status with RoHS compliance and unlimited moisture sensitivity rating.

1546074-6 (TE Connectivity): This substitute provides higher current capacity (17.5 A) with extended operating temperature range (-40°C to 105°C) and ROHS3 compliance. The 35° angle orientation differs from the main part; PCB layout compatibility must be verified. REACH affected status applies.

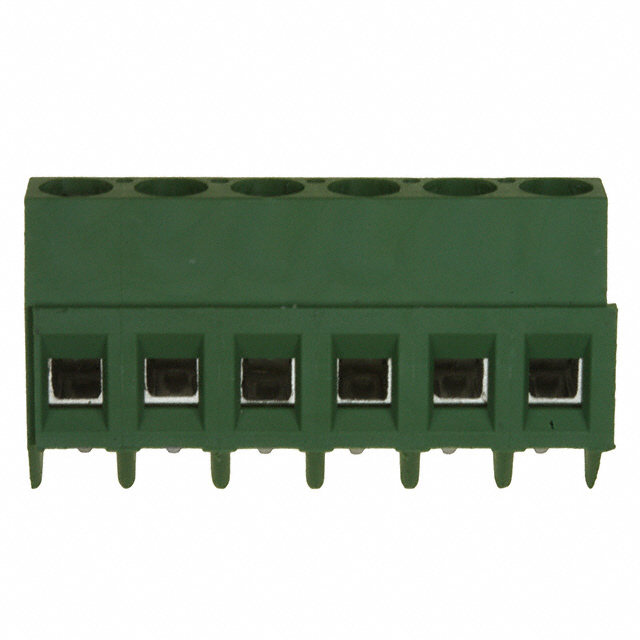

282847-6 (TE Connectivity): This substitute offers the highest inventory availability and matches the electrical specifications of 1546074-6 with 17.5 A current rating. Green housing color distinguishes this variant. Operating temperature is not specified. REACH affected status applies.

All substitute parts maintain the same pitch, position count, termination method, voltage rating, and screw torque specification as the main part, ensuring functional equivalence within the terminal block category.

Frequently Asked Questions (FAQ)

Q: Can 1546074-6 or 282847-6 be used as direct replacements for ELM063200?

A: Both parts share the same 6-position, 0.200" (5.08mm) pitch configuration, through-hole mounting, and screw-cage clamp termination. The primary difference is mating orientation (35° angle versus angled). PCB layout compatibility must be confirmed before substitution.

Q: What is the difference between the two TE Connectivity substitutes?

A: 1546074-6 and 282847-6 are electrically and mechanically identical. The differences are housing color (black versus green) and operating temperature specification (1546074-6 specifies -40°C to 105°C; 282847-6 does not specify operating temperature). Both are REACH affected.

Q: Are the substitute parts rated for higher current than the main part?

A: Yes. The substitute parts (1546074-6 and 282847-6) are rated for 17.5 A, compared to 10 A for ELM063200. Both maintain 300 V voltage rating. Applications requiring higher current capacity may benefit from substitution.

Q: What wire gauge compatibility exists between parts?

A: ELM063200 accepts 12-28 AWG wire. Both substitutes accept 12-30 AWG wire, providing broader wire gauge compatibility while maintaining full compatibility with the main part's specification range.

Q: Are all parts RoHS compliant?

A: Yes. ELM063200 is RoHS Compliant. 1546074-6 is ROHS3 Compliant. 282847-6 is RoHS Compliant. All parts meet RoHS requirements. Both substitutes carry REACH Affected status.

Q: What is the impact of housing material differences?

A: ELM063200 uses Polybutylene Terephthalate (PBT). Substitutes use Polyamide (PA66), Nylon 6/6. Both materials are suitable for terminal block applications. Material selection may affect thermal and chemical resistance characteristics specific to the application environment.
