ELL-6GG100M Equivalent & Substitute Parts

Part Overview

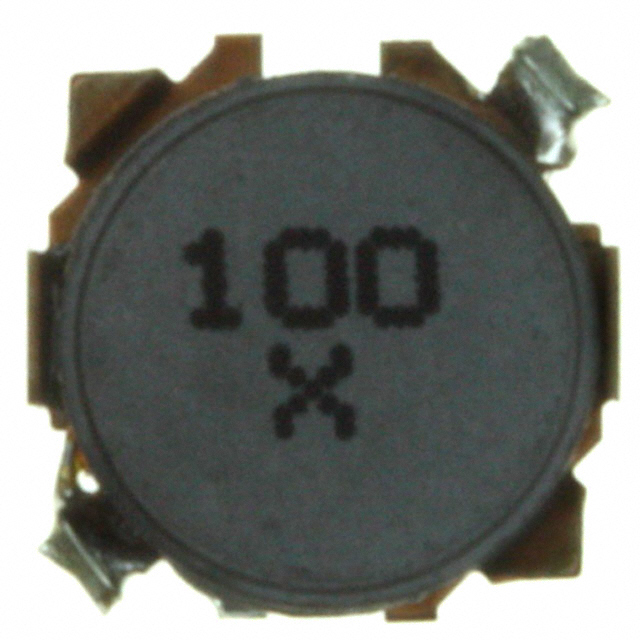

The ELL-6GG100M is a 10 µH shielded wirewound inductor manufactured by Panasonic Electronic Components, rated for 1 A continuous current with 170mOhm DC resistance. This component is classified as obsolete, necessitating identification of functionally equivalent alternatives for ongoing production and maintenance applications. Substitute parts must maintain the same inductance value, shielding characteristics, and surface mount compatibility while meeting or exceeding the electrical performance specifications.

Substiute Parts

ELL-6GG100M

Panasonic Electronic ComponentsIn Stock: 1104ELL-6GG100M Datasheet

Current PartRFQ

NR6028T100M

Taiyo YudenIn Stock: 16444NR6028T100M Datasheet

SimilarRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution eligibility for the ELL-6GG100M is determined by the following mandatory parameters:

• Inductance value of 10 µH at 100 kHz test frequency
• Shielded construction to maintain electromagnetic isolation
• Surface mount package with 6.00mm x 6.00mm footprint
• Current rating equal to or greater than 1 A
• DC resistance within acceptable operating limits
• ROHS3 compliance for regulatory alignment
• Moisture Sensitivity Level 1 classification

The NR6028T100M from Taiyo Yuden satisfies all substitution criteria. While the substitute exhibits lower DC resistance (84.5mOhm vs. 170mOhm) and higher current rating (1.9 A vs. 1 A), these represent performance improvements that maintain backward compatibility. The increased height (2.80mm vs. 1.60mm) requires verification of available board space in the target application.

Parameter Comparison

Engineering Selection Recommendations

The NR6028T100M qualifies as a direct substitute for the ELL-6GG100M based on electrical equivalence and regulatory compliance. Both components are ROHS3 compliant with MSL 1 classification, ensuring compatibility with standard manufacturing and storage protocols.

The substitute part demonstrates superior electrical performance through reduced DC resistance and increased current capacity, eliminating thermal stress in the application circuit. The 1.2mm height differential requires physical verification against PCB assembly constraints and clearance requirements.

The Taiyo Yuden part carries "Not For New Designs" status, indicating limited long-term availability. For applications requiring extended production lifecycles, additional alternatives should be evaluated concurrently.

Frequently Asked Questions (FAQ)

Q: Can the NR6028T100M directly replace the ELL-6GG100M without circuit modification?

A: Yes. Both inductors maintain identical inductance values, tolerance specifications, and shielding characteristics at the 100 kHz test frequency. The lower DC resistance of the substitute improves circuit efficiency without requiring design changes.

Q: What is the impact of the 1.2mm height difference?

A: The NR6028T100M seated height of 2.80mm exceeds the ELL-6GG100M by 1.2mm. Verify available vertical clearance on the PCB assembly and confirm compatibility with enclosure dimensions and component placement constraints.

Q: Are both parts suitable for new product designs?

A: The ELL-6GG100M is obsolete and unsuitable for new designs. The NR6028T100M carries "Not For New Designs" status, indicating limited future availability. Both parts are appropriate for legacy product support and maintenance applications only.

Q: Do the parts share identical packaging specifications?

A: Both components use nonstandard 6.00mm x 6.00mm surface mount packages with identical footprints. Tape & Reel packaging is available for the NR6028T100M, facilitating automated assembly processes.

Q: What compliance certifications apply to both parts?

A: Both the ELL-6GG100M and NR6028T100M are ROHS3 compliant with Moisture Sensitivity Level 1 classification. The Taiyo Yuden part includes REACH Unaffected status. Both carry EAR99 ECCN classification.
