ELL-5PS820M Equivalent & Substitute Parts

Part Overview

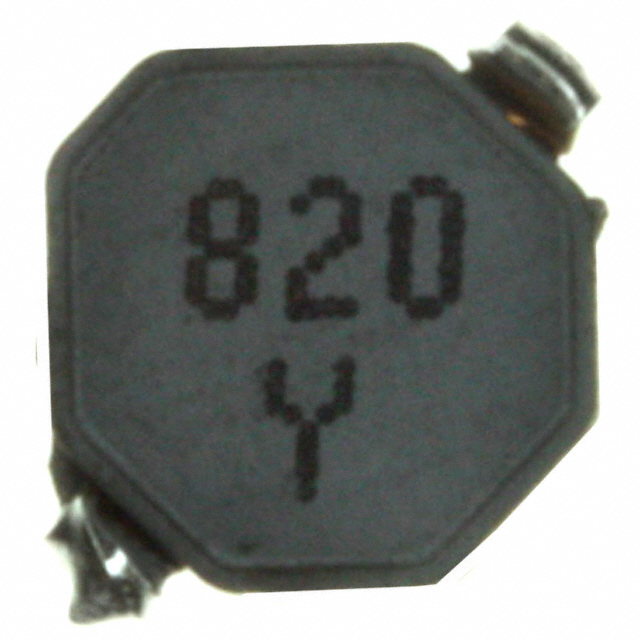

The ELL-5PS820M is an 82 µH shielded wirewound inductor manufactured by Panasonic Electronic Components, designed for surface mount applications with a current rating of 360 mA and DC resistance of 1.16 Ohm. This component is classified as obsolete, making identification of functionally equivalent alternatives necessary for ongoing design support and procurement continuity.

Substiute Parts

ELL-5PS820M

Panasonic Electronic ComponentsIn Stock: 996ELL-5PS820M Datasheet

Current PartRFQ

PF0601.823NLT

Pulse ElectronicsIn Stock: 716PF0601.823NLT Datasheet

SimilarRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution eligibility for the ELL-5PS820M is determined by the following critical parameters:

• Inductance Value: Must be 82 µH at 100 kHz test frequency
• Tolerance: ±20% specification compliance
• Current Rating: Minimum 360 mA continuous current capability
• DC Resistance: Maximum allowable DCR to maintain circuit performance
• Shielding: Shielded construction required
• Mounting Type: Surface mount configuration
• Package Classification: Nonstandard form factor compatibility

The PF0601.823NLT from Pulse Electronics meets these substitution criteria with matching inductance, tolerance, and shielding characteristics. The substitute part exceeds the current rating requirement (380 mA vs. 360 mA) and provides improved DC resistance performance (840 mOhm vs. 1.16 Ohm), making it functionally compatible for direct replacement applications.

Parameter Comparison

Engineering Selection Recommendations

The PF0601.823NLT qualifies as a direct functional substitute for the ELL-5PS820M based on electrical parameter equivalence and active product status. The Pulse Electronics component provides superior DC resistance characteristics (840 mOhm vs. 1.16 Ohm) and higher saturation current (380 mA vs. 340 mA), resulting in improved thermal performance and reduced power dissipation in equivalent circuit applications.

The substitute part maintains RoHS3 compliance and REACH unaffected status, supporting modern manufacturing and environmental regulatory requirements. The active product status of the PF0601.823NLT ensures ongoing availability and supply chain continuity, addressing the obsolescence limitation of the original Panasonic component.

Frequently Asked Questions (FAQ)

Q: Can the PF0601.823NLT be used as a direct replacement for the ELL-5PS820M?

A: Yes. Both components share identical inductance values (82 µH), tolerance specifications (±20%), shielding configuration, and mounting type. The substitute part meets or exceeds all critical electrical parameters required for functional equivalence.

Q: What are the physical dimension differences between these parts?

A: The ELL-5PS820M measures 5.00mm x 5.00mm x 2.00mm, while the PF0601.823NLT measures 6.90mm x 6.50mm x 3.00mm. PCB layout and clearance verification is required prior to implementation.

Q: How do the DC resistance values affect circuit performance?

A: The PF0601.823NLT exhibits lower DC resistance (840 mOhm max vs. 1.16 Ohm), resulting in reduced resistive losses and lower operating temperature. This represents an improvement over the original component specification.

Q: Are there compliance or certification differences?

A: The PF0601.823NLT is RoHS3 compliant and REACH unaffected. The ELL-5PS820M product status is obsolete. Both components carry MSL 1 (Unlimited) moisture sensitivity classification.

Q: What is the current handling capability comparison?

A: The ELL-5PS820M is rated for 360 mA continuous current with 340 mA saturation current. The PF0601.823NLT provides 380 mA continuous current with 380 mA saturation current, offering improved current handling capacity.
