ELFT02160 Equivalent & Substitute Parts

Part Overview

The ELFT02160 is a 2-position terminal block plug manufactured by Amphenol PCD, featuring female sockets with 0.197" (5.00mm) pitch and 270° free-hanging in-line orientation. This component is designed for screw-based wire termination applications requiring secure electrical connections in industrial and commercial equipment. The part maintains Active product status with 1034 units in current inventory. Substitute parts are identified to address supply chain flexibility, packaging preferences, or specific application requirements while maintaining electrical and mechanical compatibility.

Substiute Parts

ELFT02160

Amphenol PCDIn Stock: 1118ELFT02160 Datasheet

Current PartRFQ

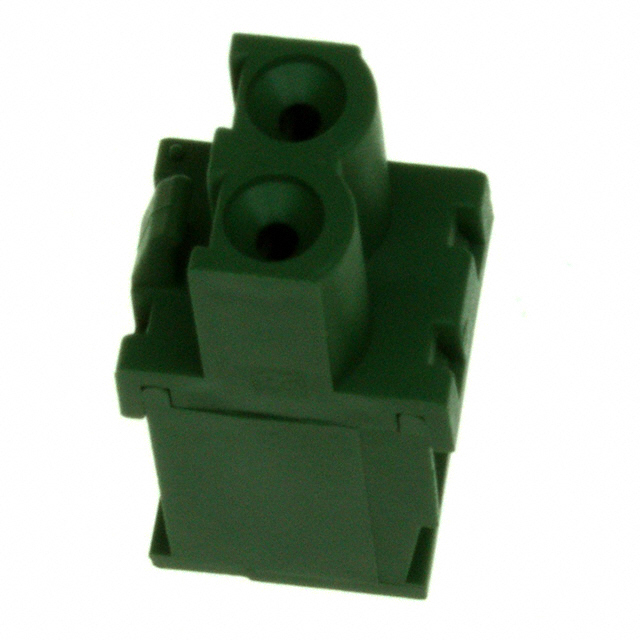

284040-2

TE Connectivity AMP ConnectorsIn Stock: 10695284040-2 Datasheet

SimilarRFQ

Key Parameters

Substitute Part Grouping Explanation

The substitute part 284040-2 (TE Connectivity AMP Connectors) qualifies as an equivalent based on the following critical parameters:

• Electrical Compatibility: Both parts maintain 15 A UL current rating and 300 V UL voltage rating
• Mechanical Compatibility: Identical 2-position configuration, 0.197" (5.00mm) pitch, 270° wire entry orientation, and screw-based rising cage clamp termination
• Mounting Configuration: Both feature free-hanging in-line mounting type
• Contact Finish: Both utilize tin contact mating finish
• Safety Compliance: Both achieve UL94 V-0 material flammability rating
• Torque Specification: Identical 0.79 Nm (7.0 Lb-In) screw torque requirement
• Environmental Classification: Both rated MSL 1 (Unlimited moisture sensitivity)

Substitution is valid where these core parameters align, regardless of differences in housing material, contact material composition, or operating temperature range.

Parameter Comparison

Engineering Selection Recommendations

Both ELFT02160 and 284040-2 maintain Active product status with full regulatory compliance. Selection between these parts should be based on:

• Supply Availability: 284040-2 offers significantly higher inventory (10601 units) compared to ELFT02160 (1034 units)
• Packaging Format: ELFT02160 is supplied in Tray packaging; 284040-2 is supplied in Bulk packaging. Select based on procurement and assembly workflow requirements
• RoHS Compliance Level: ELFT02160 is RoHS Compliant; 284040-2 is ROHS3 Compliant. Both meet current regulatory requirements
• Wire Gauge Compatibility: ELFT02160 supports 12 AWG and 14-26 AWG; 284040-2 supports 12-30 AWG. Verify wire gauge requirements for your application
• Operating Temperature Range: ELFT02160 operates to 105°C; 284040-2 operates -40°C to 110°C. Select based on thermal environment specifications

Both parts satisfy identical electrical ratings (15 A, 300 V), mechanical configuration (2-position, 5mm pitch, 270° entry), and safety standards (UL94 V-0). Direct substitution is valid where packaging and inventory constraints do not restrict selection.

Frequently Asked Questions (FAQ)

Q: Can 284040-2 directly replace ELFT02160 in existing designs?

A: Yes. Both parts share identical electrical ratings (15 A, 300 V), mechanical pitch (5mm), wire entry orientation (270°), and termination method (screw rising cage clamp). No design modification is required.

Q: What are the key differences between these parts?

A: Primary differences include housing material (ELFT02160 uses Polyphenylene Oxide; 284040-2 uses Polyamide), contact material (ELFT02160 uses Copper Alloy; 284040-2 uses Phosphor Bronze), operating temperature range (ELFT02160 to 105°C; 284040-2 to -40°C to 110°C), and packaging format (Tray vs. Bulk). Electrical and mechanical specifications remain equivalent.

Q: Are there wire gauge compatibility considerations?

A: ELFT02160 accommodates 12 AWG and 14-26 AWG wire; 284040-2 accommodates 12-30 AWG wire. Verify your application's wire gauge falls within both ranges or select the part matching your specific requirement.

Q: Which part should be selected for high-temperature applications?

A: ELFT02160 is rated to 105°C operating temperature. For applications requiring operation above 105°C, neither part is suitable. For applications within 105°C, ELFT02160 is appropriate.

Q: Does packaging format affect electrical or mechanical performance?

A: No. Tray and Bulk packaging formats do not affect electrical or mechanical performance. Selection should be based on procurement volume, assembly line handling, and inventory management requirements.

Q: Are both parts RoHS compliant?

A: Yes. ELFT02160 is RoHS Compliant; 284040-2 is ROHS3 Compliant. Both meet current regulatory requirements for restricted substance limitations.
