ELFP02210 Terminal Block Plug Equivalent & Substitute Parts

Part Overview

The ELFP02210 is a 2-position terminal block plug manufactured by Amphenol PCD, featuring female sockets with 0.200" (5.08mm) pitch spacing and 180° free-hanging in-line configuration. This component is designed for screw-based wire termination applications requiring UL 300V, 15A rated connections. The part maintains active product status with 1062 units in current inventory. Substitute parts are identified to address supply chain requirements, packaging preferences, or specific compliance certifications while maintaining electrical and mechanical compatibility.

Substiute Parts

ELFP02210

Amphenol PCDIn Stock: 1145ELFP02210 Datasheet

Current PartRFQ

796634-2

TE Connectivity AMP ConnectorsIn Stock: 22687796634-2 Datasheet

SimilarRFQ

796635-2

TE Connectivity AMP ConnectorsIn Stock: 6382796635-2 Datasheet

SimilarRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution eligibility for the ELFP02210 is determined by strict equivalence across the following critical parameters:

• Electrical Compatibility: Current rating (15 A UL), voltage rating (300 V UL), and contact material composition must support identical or superior performance
• Mechanical Compatibility: 2-position configuration, 0.200" (5.08mm) pitch, 180° wire entry orientation, screw-based rising cage clamp termination, and free-hanging in-line mounting must be identical
• Physical Dimensions: Insulation height and wire strip length must accommodate standard installation practices
• Regulatory Compliance: UL94 V-0 flammability rating and RoHS compliance are mandatory for substitution
• Contact Finish: Tin plating on mating surfaces ensures consistent electrical performance

The identified substitute parts (796634-2 and 796635-2) from TE Connectivity AMP Connectors meet all critical electrical and mechanical parameters while offering extended operating temperature ranges and alternative housing materials.

Parameter Comparison

Engineering Selection Recommendations

ELFP02210 (Amphenol PCD): Select this part for applications requiring the original specification with PPO housing material and standard operating temperature range (-40°C to 95°C). RoHS compliance is confirmed. Packaging in trays supports automated assembly processes.

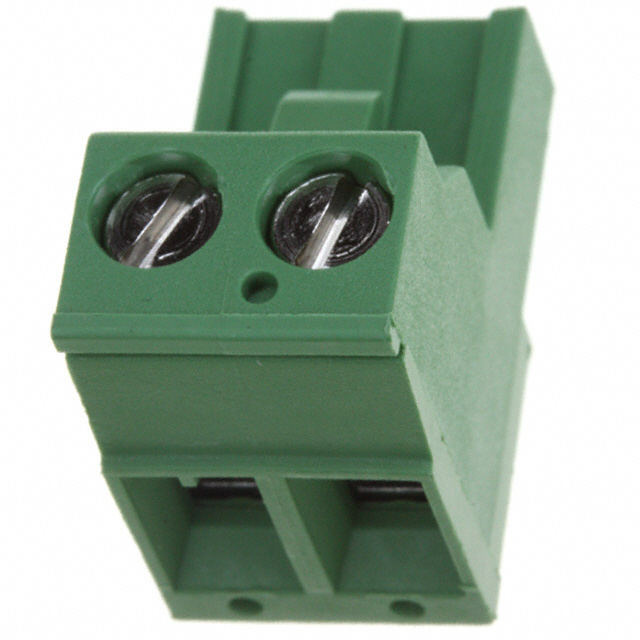

796634-2 (TE Connectivity AMP Connectors): This substitute offers extended operating temperature capability (-40°C to 110°C) with PA66 nylon housing and phosphor bronze contacts. ROHS3 compliance and REACH affected status apply. Green housing color differentiates this variant. Bulk packaging accommodates high-volume procurement. Wire gauge acceptance extends to 12-30 AWG, providing broader termination flexibility.

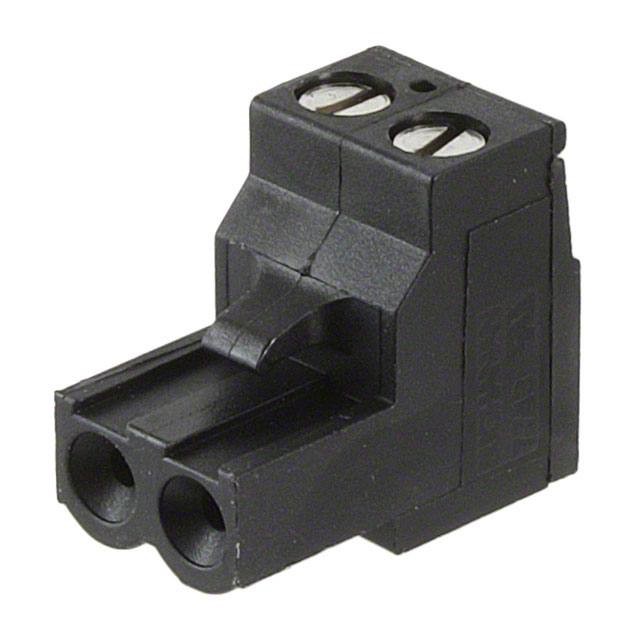

796635-2 (TE Connectivity AMP Connectors): This substitute provides identical electrical and mechanical specifications to 796634-2 with black housing color matching the original ELFP02210. Extended operating temperature range (-40°C to 110°C), PA66 nylon housing, and phosphor bronze contacts are standard. ROHS3 compliance and REACH affected status apply. Bulk packaging supports supply chain optimization.

All three parts maintain active product status, UL94 V-0 flammability rating, and identical screw torque specifications (0.79 Nm). Selection between substitutes depends on housing material preference, operating temperature requirements, and packaging format needs.

Frequently Asked Questions (FAQ)

Q: Can 796634-2 or 796635-2 be used as direct replacements for ELFP02210?

A: Yes. Both TE Connectivity parts meet all critical electrical and mechanical parameters: 2-position configuration, 0.200" (5.08mm) pitch, 180° wire entry, 15 A UL current rating, 300 V UL voltage rating, screw-based rising cage clamp termination, and UL94 V-0 flammability rating. Identical screw torque specifications (0.79 Nm) ensure consistent installation procedures.

Q: What are the differences between 796634-2 and 796635-2?

A: The primary difference is housing color: 796634-2 features green housing, while 796635-2 features black housing. All other electrical, mechanical, and compliance specifications are identical. Both offer extended operating temperature range (-40°C to 110°C) compared to the ELFP02210 (-40°C to 95°C).

Q: Does the contact material difference (Copper Alloy vs. Phosphor Bronze) affect compatibility?

A: No. Both contact materials are tin-plated and rated for identical electrical performance (15 A, 300 V). Phosphor bronze in the TE Connectivity substitutes provides equivalent or superior electrical conductivity and mechanical durability compared to copper alloy.

Q: Are there wire gauge compatibility considerations?

A: The ELFP02210 accepts 12 AWG and 14-26 AWG wire gauges. Both TE Connectivity substitutes accept 12-30 AWG (0.05-3mm²), providing broader termination flexibility. Standard installation practices remain unchanged.

Q: What packaging differences exist between these parts?

A: ELFP02210 is supplied in trays (1062 units in stock), while 796634-2 and 796635-2 are supplied in bulk packaging (22602 and 6336 units respectively). Packaging format selection depends on assembly automation requirements and procurement volume.

Q: Are all three parts RoHS compliant?

A: Yes. ELFP02210 is RoHS Compliant. Both TE Connectivity substitutes are ROHS3 Compliant, representing the current RoHS directive standard. All parts meet environmental compliance requirements.

Q: Does the insulation height difference affect mechanical fit?

A: The ELFP02210 has 0.592" (15.04mm) insulation height, while both TE Connectivity substitutes have 0.610" (15.49mm). This 0.018" (0.45mm) difference is within standard manufacturing tolerances and does not affect mechanical compatibility in standard mounting applications.
