ELFH13150 Terminal Block Header Equivalent & Substitute Parts

Part Overview

The ELFH13150 is a 13-position terminal block header manufactured by Amphenol PCD, designed for vertical through-hole mounting with 5.00mm pitch spacing. This component features male pins with 4-side shrouding and is rated for 15A at 300V (UL). The part is currently active in production with 1113 units in stock.

Equivalent and substitute parts are identified when designs require alternative sourcing, inventory management, or when specific mechanical or electrical characteristics align with application requirements while maintaining functional compatibility.

Substiute Parts

ELFH13150

Amphenol PCDIn Stock: 1182ELFH13150 Datasheet

Current PartRFQ

1753657

Phoenix ContactIn Stock: 11521753657 Datasheet

SimilarRFQ

1755613

Phoenix ContactIn Stock: 11641755613 Datasheet

SimilarRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitute parts for the ELFH13150 are qualified based on the following critical parameters that determine functional interchangeability:

Primary Matching Criteria:

• 13 positions with 0.197" (5.00mm) pitch spacing
• Vertical through-hole mounting orientation
• Male pin configuration with shrouded design
• Solder termination style
• UL94 V-0 flammability rating
• Moisture Sensitivity Level 1 (Unlimited)

Secondary Compatibility Factors:

• Voltage rating of 300V or higher (UL standard)
• Current rating of 12A or higher (UL standard)
• Tin contact mating finish
• Active product status

The substitute parts listed maintain these core electrical and mechanical parameters, ensuring direct functional replacement in applications designed for the ELFH13150.

Parameter Comparison

Engineering Selection Recommendations

ELFH13150 (Amphenol PCD): Primary choice for applications requiring 15A current capacity at 300V. RoHS compliant with active product status and established supply chain. Recommended for new designs where the higher current rating provides design margin.

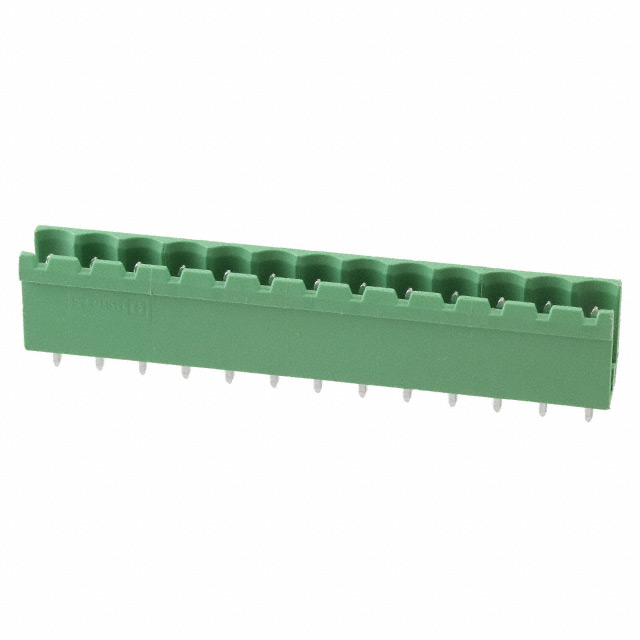

1753657 (Phoenix Contact COMBICON MSTBV): Functionally compatible substitute with 12A current rating and 2-side shrouding. ROHS3 compliant. Suitable for applications where 12A current capacity is sufficient and 2-side shrouding meets mechanical requirements. Lower current rating requires verification against application load specifications.

1755613 (Phoenix Contact COMBICON MSTBVA): Direct mechanical equivalent with 4-side shrouding matching the ELFH13150 configuration. 12A current rating and ROHS3 compliance. Identical shrouding design provides equivalent EMI shielding characteristics. Current rating of 12A requires application-level verification.

All three parts maintain UL94 V-0 flammability rating, tin contact finish, and MSL 1 rating, ensuring compatibility in standard PCB assembly and storage environments.

Frequently Asked Questions (FAQ)

Q: Can 1753657 or 1755613 directly replace ELFH13150 in existing designs?

A: Both Phoenix Contact parts maintain the same 13-position, 5.00mm pitch, vertical through-hole configuration and UL94 V-0 rating. However, the current rating difference (12A vs. 15A) requires verification that application current requirements do not exceed 12A. Part 1755613 provides identical 4-side shrouding; part 1753657 features 2-side shrouding.

Q: What is the difference between 1753657 and 1755613?

A: Both are Phoenix Contact COMBICON series with identical electrical ratings (12A, 300V UL). The primary difference is shrouding: 1753657 has 2-side shrouding, while 1755613 has 4-side shrouding. The ELFH13150 and 1755613 both feature 4-side shrouding for equivalent EMI performance.

Q: Are there packaging differences between these parts?

A: ELFH13150 is supplied in Tray packaging; both Phoenix Contact substitutes are supplied in Bulk packaging. Packaging format may affect handling, storage, and assembly line integration.

Q: Do all three parts meet the same compliance standards?

A: All three parts are UL94 V-0 rated and MSL 1. ELFH13150 is RoHS Compliant; both Phoenix Contact parts are ROHS3 Compliant. Both RoHS standards meet current regulatory requirements.

Q: What is the current rating limitation for substitution?

A: The ELFH13150 is rated for 15A (UL), while both Phoenix Contact substitutes are rated for 12A (UL). Applications requiring current capacity above 12A must use the ELFH13150 or identify alternative parts with higher current ratings.
