ELFH0825G Equivalent & Substitute Parts Reference

Part Overview

The ELFH0825G is a 0.200"/5.08MM vertical header closed-end terminal block manufactured by Amphenol PCD. This component is classified as a position terminal block and is currently in active product status with 1002 units available in stock. Terminal blocks of this type are essential interconnection components in industrial control systems, power distribution panels, and modular electronic assemblies. Substitute parts are identified when equivalent functional performance can be achieved through components sharing compatible electrical and mechanical specifications within the same product category.

Substiute Parts

ELFH0825G

Amphenol PCDIn Stock: 1099ELFH0825G Datasheet

Current PartRFQ

796636-8

TE Connectivity AMP ConnectorsIn Stock: 1861796636-8 Datasheet

SimilarRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution eligibility for the ELFH0825G is determined by alignment across the following critical parameters:

• Pitch specification: 0.200" (5.08mm) center-to-center spacing
• Header orientation: Vertical mounting configuration
• Product category: Terminal blocks with header functionality
• Termination method: Solder or equivalent connection technology
• Mounting type: Through-hole assembly compatibility
• Regulatory compliance: RoHS and ECCN classification alignment
• Environmental rating: Moisture sensitivity level and operating temperature range

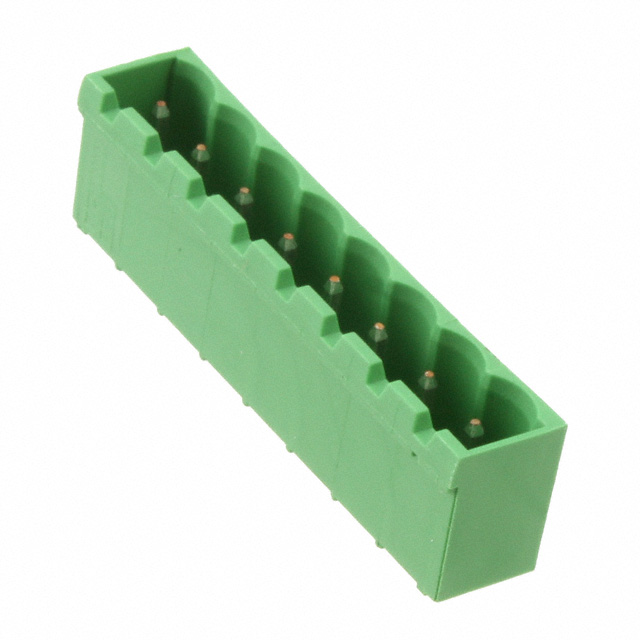

The substitute part 796636-8 (TE Connectivity AMP Connectors) meets these criteria as an 8-position vertical terminal block header with 0.200" (5.08mm) pitch, solder termination, and through-hole mounting. Both components share identical HTSUS classification and EAR99 export control status.

Parameter Comparison

Engineering Selection Recommendations

Both the ELFH0825G and 796636-8 maintain active product status with unrestricted moisture sensitivity ratings, making either component suitable for standard industrial applications. The ELFH0825G is manufactured by Amphenol PCD and carries RoHS Compliant certification. The 796636-8 substitute from TE Connectivity AMP Connectors carries ROHS3 Compliant certification, representing an enhanced compliance level.

Selection between these components should be based on:

• Supply chain availability: ELFH0825G has 1002 units in stock; 796636-8 has 1776 units in stock
• Regulatory requirement alignment: Both meet EAR99 export control classification and identical HTSUS coding
• Mechanical compatibility: Both feature 0.200" (5.08mm) pitch vertical header configuration
• Electrical performance: 796636-8 provides specified current (15 A UL) and voltage (300 V UL) ratings with defined operating temperature range (-40°C ~ 110°C)

Frequently Asked Questions (FAQ)

Q: What determines if 796636-8 can substitute for ELFH0825G?

A: Substitution is valid when both components share the same pitch specification (0.200"/5.08mm), vertical header orientation, terminal block category classification, and compatible regulatory compliance status (RoHS and ECCN). Both parts meet these criteria.

Q: Are there differences in electrical performance between these parts?

A: The 796636-8 provides specified electrical ratings of 15 A (UL) and 300 V (UL) with an operating temperature range of -40°C to 110°C. The ELFH0825G does not have these parameters specified in available documentation.

Q: What is the significance of the pitch measurement?

A: Pitch (0.200" or 5.08mm) defines the center-to-center spacing between terminal positions. Both components share identical pitch, ensuring mechanical compatibility in applications designed for this spacing standard.

Q: How do RoHS and ROHS3 compliance levels differ?

A: RoHS Compliant indicates compliance with the original Restriction of Hazardous Substances directive. ROHS3 Compliant indicates compliance with the recast directive (2011/65/EU). Both represent hazardous substance restrictions; ROHS3 represents the current regulatory standard.

Q: What does MSL 1 (Unlimited) mean for these components?

A: Moisture Sensitivity Level 1 indicates the lowest moisture sensitivity classification. These components do not require special moisture control during storage, handling, or assembly, making them suitable for standard warehouse and manufacturing environments.

Q: Are these components suitable for through-hole PCB assembly?

A: The 796636-8 is explicitly rated for through-hole mounting with solder termination. The ELFH0825G mounting specifications are not detailed in available parameters.
