ELFH0321G Equivalent & Substitute Parts

Part Overview

The ELFH0321G is a .200"/5.08MM right-angle header terminal block manufactured by Amphenol PCD. This component is classified as a position terminal block and is currently in active product status with 710 pieces available in new original inventory. Terminal blocks of this specification are essential in applications requiring reliable electrical connections with standardized pitch spacing and right-angle orientation for PCB mounting.

Substitute parts are identified when they share compatible electrical and mechanical parameters within the allowed specifications for this product category, ensuring functional equivalence in circuit applications.

Substiute Parts

ELFH0321G

Amphenol PCDIn Stock: 820ELFH0321G Datasheet

Current PartRFQ

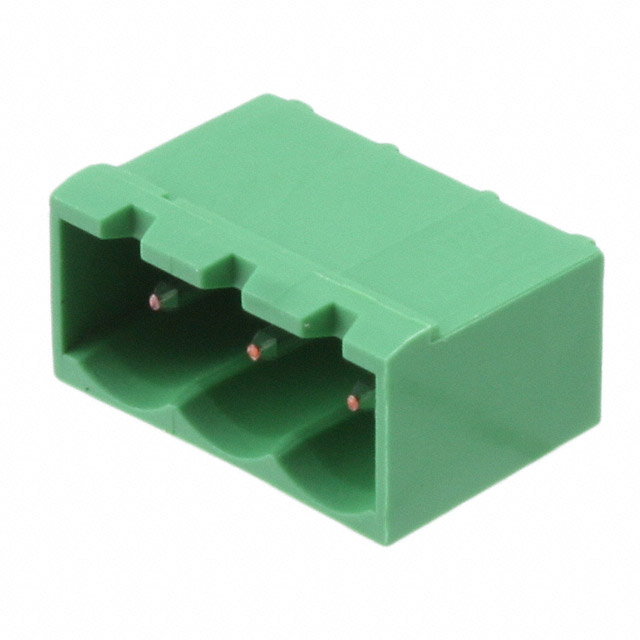

796638-3

TE Connectivity AMP ConnectorsIn Stock: 7319796638-3 Datasheet

SimilarRFQ

Key Parameters

Substitute Part Grouping Explanation

The substitute part 796638-3 (TE Connectivity AMP Connectors) is identified as functionally equivalent based on the following shared parameters:

Substitution Criteria:

• Pitch specification: 0.200" (5.08mm) — matches the standardized spacing requirement
• Header orientation: 90° right-angle configuration — ensures compatible PCB mounting geometry
• Category classification: Terminal Blocks — same functional component class
• Packaging format: Bulk — consistent supply format
• Compliance standards: Both parts are RoHS compliant and carry EAR99 ECCN classification
• Moisture sensitivity: Both rated MSL 1 (Unlimited) — equivalent environmental handling
• HTSUS code alignment: 8536.69.4040 — same tariff classification

The 796638-3 provides a 3-position configuration with active product status and established inventory availability, making it a viable alternative when ELFH0321G stock is unavailable.

Parameter Comparison

Engineering Selection Recommendations

Both ELFH0321G and 796638-3 maintain active product status with established manufacturer support and supply chains. Selection between these parts should be based on:

Compliance Alignment: The ELFH0321G is RoHS Compliant, while the 796638-3 is ROHS3 Compliant. Both satisfy RoHS requirements; ROHS3 represents the current regulatory standard. Both parts carry EAR99 ECCN classification and share identical HTSUS tariff codes, indicating equivalent trade and export compliance profiles.

Inventory and Availability: ELFH0321G has 710 pieces in new original stock. The 796638-3 has 7230 pieces available, providing significantly higher inventory depth for applications requiring volume procurement.

Moisture Sensitivity: Both components are rated MSL 1 (Unlimited), indicating no moisture sensitivity constraints during storage or handling.

Electrical and Mechanical Specifications: The 796638-3 provides documented electrical ratings (15 A UL, 300 V UL) and thermal operating range (-40°C ~ 110°C), along with material certifications (UL94 V-0). These specifications are not provided for the ELFH0321G in the available data.

Frequently Asked Questions (FAQ)

Q: What makes 796638-3 a suitable substitute for ELFH0321G?

A: Both components share the critical substitution parameters: 0.200" (5.08mm) pitch spacing, 90° right-angle header orientation, terminal block category classification, bulk packaging format, and equivalent compliance certifications (RoHS, EAR99, MSL 1). These parameters define functional compatibility in PCB-mounted terminal block applications.

Q: Are there differences in position count between these parts?

A: The ELFH0321G position count is not specified in the available data. The 796638-3 is a 3-position configuration with 3 positions per level and 1 level. Position count must be verified against your specific circuit requirements before substitution.

Q: What is the difference between RoHS Compliant and ROHS3 Compliant?

A: Both designations indicate compliance with RoHS (Restriction of Hazardous Substances) regulations. ROHS3 represents the current regulatory iteration. Both parts meet RoHS requirements; ROHS3 is the more recent standard designation.

Q: Can I use 796638-3 if my application requires specific electrical ratings?

A: The 796638-3 carries UL ratings of 15 A at 300 V with an operating temperature range of -40°C ~ 110°C. Verify these ratings against your application requirements. The ELFH0321G electrical specifications are not provided in the available data; contact the manufacturer for complete specifications if needed.

Q: What is the significance of the MSL 1 (Unlimited) rating?

A: MSL 1 (Unlimited) indicates that the component has no moisture sensitivity constraints. Both parts can be stored and handled without special moisture control measures, simplifying supply chain management.

Q: Are there any material or construction differences I should consider?

A: The 796638-3 specifies Copper Alloy contacts with Polyamide (PA66) Nylon 6/6 housing, tin contact mating finish, and UL94 V-0 flammability rating. These specifications are not provided for the ELFH0321G. Material specifications should be confirmed with the manufacturer if your application has specific material requirements.
