ELFH0225G Equivalent & Substitute Parts Reference

Part Overview

The ELFH0225G is a 0.200"/5.08mm vertical header closed-end terminal block manufactured by Amphenol PCD. This component is classified as a position terminal block and is currently in active product status with 714 units available in stock. Terminal blocks of this type are essential interconnection components in electronic assemblies where reliable wire-to-board connections are required. Substitute parts may be necessary due to supply chain constraints, design revisions, or specific application requirements that align with compatible electrical and mechanical specifications.

Substiute Parts

ELFH0225G

Amphenol PCDIn Stock: 789ELFH0225G Datasheet

Current PartRFQ

796636-2

TE Connectivity AMP ConnectorsIn Stock: 93867796636-2 Datasheet

SimilarRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution eligibility for the ELFH0225G is determined by alignment across the following critical parameters:

• Pitch and Spacing: 0.200" (5.08mm) vertical header configuration
• Termination Interface: Compatibility with solder or equivalent connection methods
• Electrical Ratings: Current and voltage specifications suitable for terminal block applications
• Physical Form Factor: Vertical through-hole mounting orientation
• Compliance Standards: RoHS and regulatory certifications (ECCN, HTSUS classification)
• Environmental Ratings: Operating temperature range and moisture sensitivity level

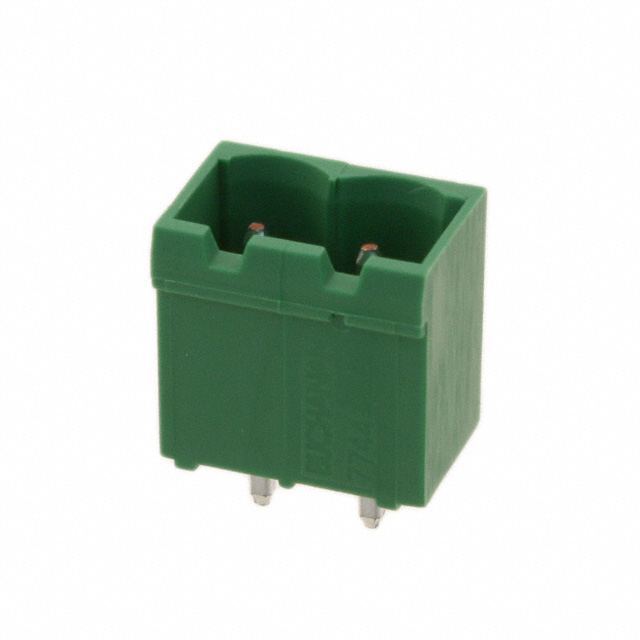

The substitute part 796636-2 (TE Connectivity AMP Connectors) meets these criteria through matching pitch specification, vertical orientation, through-hole mounting, and equivalent compliance certifications.

Parameter Comparison

Engineering Selection Recommendations

Both the ELFH0225G and 796636-2 maintain active product status and comply with current regulatory requirements. The ELFH0225G carries RoHS Compliant certification, while the 796636-2 carries ROHS3 Compliant certification, indicating alignment with current environmental standards. Both components share identical ECCN (EAR99) and HTSUS (8536.69.4040) classifications and maintain MSL Level 1 (Unlimited) moisture sensitivity ratings.

The 796636-2 provides documented electrical specifications including 15 A UL current rating and 300 V UL voltage rating, along with defined operating temperature range (-40°C ~ 110°C) and material composition (Polyamide PA66/Nylon 6/6). Selection between these parts should be based on specific application electrical requirements, PCB layout constraints, and supply chain availability.
