ELF-22V070B Common Mode Choke Equivalent & Substitute Parts

Part Overview

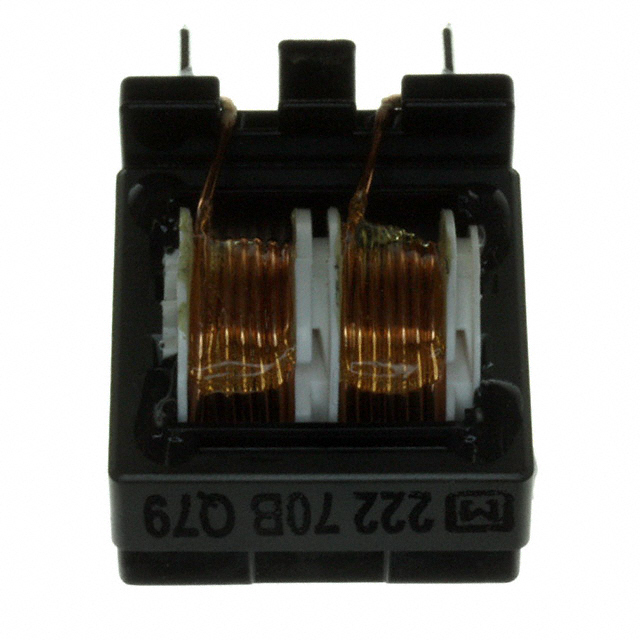

The ELF-22V070B is a 2-line common mode choke (CMC) manufactured by Panasonic Electronic Components, designed for through-hole mounting applications requiring 7A current handling capability with 22mOhm typical DC resistance. This component is classified as obsolete, making identification of functionally equivalent alternatives essential for ongoing system support, design updates, and procurement continuity.

Substiute Parts

ELF-22V070B

Panasonic Electronic ComponentsIn Stock: 803ELF-22V070B Datasheet

Current PartRFQ

RD6127-16-3M0

Schaffner EMC Inc.In Stock: 1973RD6127-16-3M0 Datasheet

SimilarRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution of the ELF-22V070B requires evaluation based on the following critical parameters:

Core Functional Parameters:

• Number of Lines: Must remain 2-line configuration
• Mounting Type: Through-hole mounting required
• Current Rating: Substitute must meet or exceed 7A specification
• DC Resistance: Lower DCR values are acceptable; higher values may impact thermal performance

Physical Compatibility:

• Pin configuration: 4 PC pin through-hole standard
• Footprint and height: Physical dimensions must accommodate existing PCB layouts

Regulatory & Compliance:

• RoHS compliance status
• Moisture sensitivity rating

The RD6127-16-3M0 from Schaffner EMC Inc. qualifies as a functional substitute based on matching core parameters: 2-line configuration, through-hole mounting, current rating exceeding the 7A requirement (16A typ), and superior DC resistance (10.9mOhm typ vs. 22mOhm typ).

Parameter Comparison

Engineering Selection Recommendations

RD6127-16-3M0 Substitution Basis:

The RD6127-16-3M0 is an active, production component from Schaffner EMC Inc. that meets the functional requirements of the obsolete ELF-22V070B. Key advantages include:

• Current Capacity: 16A rating provides 2.3x margin over the 7A requirement
• DC Resistance: 10.9mOhm typical is 50% lower than the original 22mOhm, reducing power dissipation
• Regulatory Compliance: ROHS3 compliant, addressing modern environmental standards
• Availability: Active product status ensures ongoing supply and support
• Voltage Ratings: Specified DC (850V) and AC (600V) ratings provide defined operating boundaries

Physical Consideration:

The RD6127-16-3M0 features a horizontal 4 PC pin configuration with larger footprint (60mm x 60mm vs. 32mm x 23mm). PCB layout modification is required to accommodate the increased dimensions. Height differential (35.50mm vs. 39.00mm) is minimal and does not present clearance constraints in most applications.

Frequently Asked Questions (FAQ)

Q: Can the RD6127-16-3M0 directly replace the ELF-22V070B without circuit modification?

A: Electrical substitution is valid. The RD6127-16-3M0 meets all functional requirements with superior current and voltage ratings. However, PCB layout modification is necessary due to increased footprint dimensions (60mm x 60mm vs. 32mm x 23mm). Pin configuration remains compatible (4 PC pin through-hole).

Q: What is the significance of the lower DC resistance in the RD6127-16-3M0?

A: Lower DC resistance (10.9mOhm vs. 22mOhm) reduces resistive power loss in the component. For a 7A application, this represents approximately 0.54W vs. 1.08W dissipation, improving thermal performance and system efficiency.

Q: Does the RoHS3 compliance of the RD6127-16-3M0 affect compatibility with existing designs?

A: RoHS3 compliance indicates adherence to current environmental standards and does not introduce electrical incompatibility. The substitute is suitable for applications requiring modern regulatory compliance.

Q: Are the voltage ratings of the RD6127-16-3M0 relevant if the original part did not specify them?

A: Yes. The specified voltage ratings (850V DC, 600V AC) on the RD6127-16-3M0 provide defined operating boundaries. If the original application voltage is within these limits, the substitute is appropriate. If original voltage specifications are unknown, system voltage requirements must be confirmed before substitution.

Q: What is the impact of the different mounting orientation (horizontal vs. vertical)?

A: Mounting orientation affects PCB layout and component placement. The horizontal configuration of the RD6127-16-3M0 requires board redesign but does not affect electrical performance. Height difference (35.50mm vs. 39.00mm) is negligible for most enclosure designs.

Q: Is the inductance value of the RD6127-16-3M0 (3 mH @ 1 kHz) compatible with the ELF-22V070B?

A: The original ELF-22V070B inductance value is not provided in the specification. If inductance is a critical parameter for the application, the 3 mH @ 1 kHz specification of the RD6127-16-3M0 must be verified against system requirements before substitution.
