Omron EE-SX910-R 1M Optical Sensor - Equivalent & Substitute Parts

Part Overview

The Omron EE-SX910-R 1M is a through-beam optical sensor designed for slot-type applications with 0.197" (5mm) sensing distance and NPN open collector output configuration. This component operates across the industrial temperature range of -25°C to 55°C and is classified as an amplified module with wire leads for chassis mounting.

The EE-SX910-R 1M is currently listed as obsolete. Identifying functionally equivalent substitute parts is necessary to maintain system continuity and ensure procurement availability for new designs or field replacements.

Substiute Parts

EE-SX910-R 1M

Omron Automation and SafetyIn Stock: 1067EE-SX910-R 1M Datasheet

Current PartRFQ

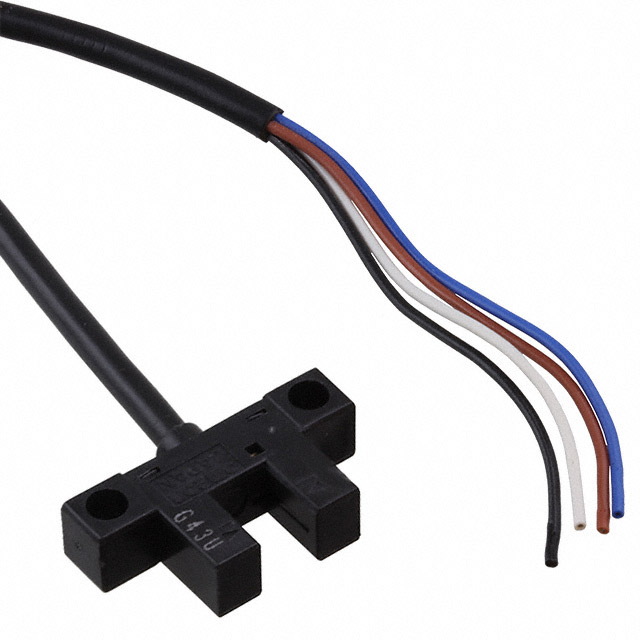

EE-SX950-R 1M

Omron Automation and SafetyIn Stock: 1186EE-SX950-R 1M Datasheet

DirectRFQ

EE-SX950-W 1M

Omron Automation and SafetyIn Stock: 1468EE-SX950-W 1M Datasheet

SimilarRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitute parts for the EE-SX910-R 1M are identified based on the following critical parameters that determine functional equivalence:

• Sensing distance: 0.197" (5mm)
• Sensing method: Through-Beam
• Mounting type: Chassis Mount
• Package type: Module, Wire Leads, Slot Type
• Sensor type: Amplified
• Operating temperature range: -25°C ~ 55°C

The substitute parts EE-SX950-R 1M and EE-SX950-W 1M meet all these core requirements. Both are active products from Omron Automation and Safety within the EE-SX95 series. The primary difference between the main part and substitutes is the output configuration: the EE-SX910-R 1M provides NPN open collector output, while the EE-SX950 variants offer NPN dark-ON/light-ON selectable output, providing additional operational flexibility.

Parameter Comparison

Engineering Selection Recommendations

Both EE-SX950-R 1M and EE-SX950-W 1M are suitable substitutes for the obsolete EE-SX910-R 1M based on matching core sensing parameters and mechanical form factor.

The EE-SX950 series parts offer the advantage of active product status, ensuring long-term availability and supply chain stability. Both substitute parts carry ROHS3 compliance and REACH unaffected status, meeting current environmental and regulatory requirements. The selectable dark-ON/light-ON output configuration of the EE-SX950 variants provides operational flexibility not present in the fixed open collector output of the original part.

Selection between EE-SX950-R 1M and EE-SX950-W 1M should be based on packaging requirements and inventory availability, as both parts are electrically and mechanically equivalent.

Frequently Asked Questions (FAQ)

Q: Can the EE-SX950-R 1M or EE-SX950-W 1M directly replace the EE-SX910-R 1M in existing applications?

A: Yes, both EE-SX950 variants are direct substitutes. They maintain identical sensing distance (0.197" / 5mm), through-beam sensing method, chassis mount configuration, and amplified module type. The selectable output configuration of the EE-SX950 series is compatible with applications designed for NPN open collector output.

Q: What is the difference between EE-SX950-R 1M and EE-SX950-W 1M?

A: Both parts are electrically and mechanically identical. The designation difference (R vs. W) reflects packaging or distribution channel variations. Electrical specifications, sensing parameters, and performance characteristics are equivalent.

Q: Why is the EE-SX910-R 1M listed as obsolete?

A: Product obsolescence is determined by the manufacturer based on market demand and product lifecycle management. The EE-SX950 series represents the current active product line for this sensing application category.

Q: Are there any electrical parameter differences I should consider?

A: The EE-SX950 variants specify maximum collector current (15 mA) and collector-emitter breakdown voltage (24 V), which were not provided for the original EE-SX910-R 1M. These specifications should be verified against your circuit design requirements to ensure compatibility.

Q: What compliance certifications apply to the substitute parts?

A: Both EE-SX950-R 1M and EE-SX950-W 1M are ROHS3 compliant and REACH unaffected, meeting current environmental and regulatory standards for electronic components.
