EEC-RF0H104 Equivalent & Substitute Parts

Part Overview

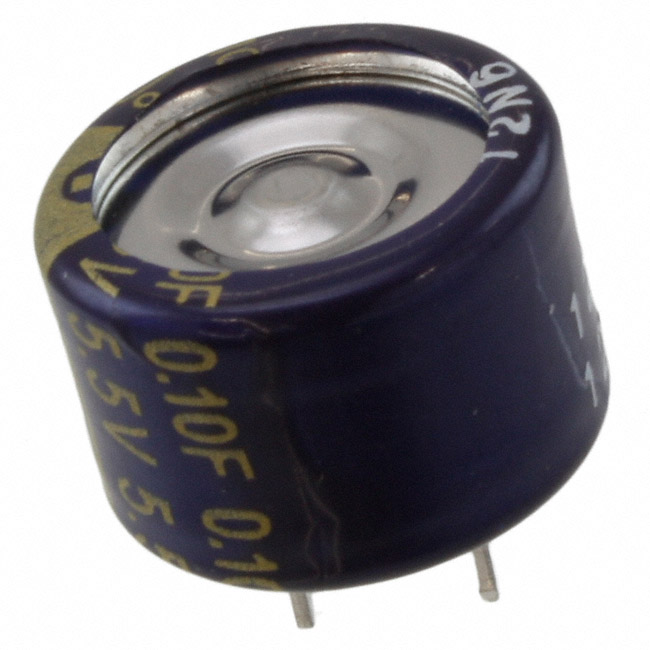

The EEC-RF0H104 is a 100 mF supercapacitor (EDLC) rated at 5.5 V with radial, can-style through-hole termination manufactured by Panasonic Electronic Components. This component is classified as obsolete, making identification of functionally equivalent alternatives necessary for ongoing design support and procurement continuity. The part operates across a temperature range of -25°C to 85°C with a rated lifetime of 2000 hours at 85°C.

Substiute Parts

EEC-RF0H104

Panasonic Electronic ComponentsIn Stock: 993EEC-RF0H104 Datasheet

Current PartRFQ

KW-5R5C104-R

Eaton - Electronics DivisionIn Stock: 985KW-5R5C104-R Datasheet

DirectRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution of the EEC-RF0H104 is determined by strict equivalence across the following electrical and mechanical parameters:

• Capacitance value: 100 mF (exact match required)
• Voltage rating: 5.5 V (exact match required)
• Tolerance: -20%, +80% (exact match required)
• Mounting type: Through Hole (exact match required)
• Package style: Radial, Can (exact match required)
• Lead spacing: 0.197" (5.00 mm) (exact match required)
• Lifetime specification: 2000 Hrs @ 85°C (exact match required)

The KW-5R5C104-R from Eaton - Electronics Division meets all mandatory electrical and mechanical criteria for direct substitution. Minor variations in ESR (50 Ohm @ 1kHz versus 40 Ohm) and physical height (0.327" versus 0.374") remain within acceptable tolerance for through-hole applications with standard PCB layouts.

Parameter Comparison

Engineering Selection Recommendations

The KW-5R5C104-R is a direct functional equivalent for the obsolete EEC-RF0H104. Selection between these parts should be based on the following factors:

Product Status: The EEC-RF0H104 is obsolete. The KW-5R5C104-R carries active product status from Eaton - Electronics Division, ensuring ongoing availability and supply chain stability.

Compliance & Certifications: Both parts are RoHS compliant. The KW-5R5C104-R meets ROHS3 requirements and is REACH Unaffected, providing enhanced regulatory alignment for current manufacturing standards.

Physical Compatibility: The KW-5R5C104-R is 0.047" (1.20 mm) shorter in seated height than the original part. This dimension reduction is compatible with standard through-hole PCB layouts and does not require design modification.

Electrical Performance: The KW-5R5C104-R exhibits 10 Ohm higher ESR (50 Ohm @ 1kHz versus 40 Ohm). This difference is within typical application tolerances for supercapacitor circuits and does not affect functional equivalence.

Temperature Range: The KW-5R5C104-R extends the lower operating temperature limit to -40°C, providing enhanced performance in cold-environment applications compared to the original -25°C specification.

Frequently Asked Questions (FAQ)

Q: Can the KW-5R5C104-R be used as a direct replacement for the EEC-RF0H104 without PCB modification?

A: Yes. The KW-5R5C104-R maintains identical lead spacing (0.197" / 5.00 mm), diameter (0.531" / 14.60 mm), and termination style (PC Pins, Through Hole). The reduced height (0.327" versus 0.374") does not require PCB layout changes.

Q: What is the significance of the ESR difference between these parts?

A: The KW-5R5C104-R has 50 Ohm ESR @ 1kHz compared to the EEC-RF0H104's 40 Ohm ESR. This 10 Ohm difference represents a 25% increase and may affect transient response characteristics in high-frequency applications. Verify ESR requirements against circuit specifications before selection.

Q: Are there any compliance differences between these parts?

A: Both parts are RoHS compliant. The KW-5R5C104-R additionally meets ROHS3 requirements and carries REACH Unaffected status, aligning with current regulatory standards. The EEC-RF0H104, being obsolete, may not meet current compliance requirements for new designs.

Q: Does the extended temperature range of the KW-5R5C104-R affect its suitability?

A: The KW-5R5C104-R operates from -40°C to 85°C, extending the lower limit by 15°C compared to the EEC-RF0H104 (-25°C to 85°C). This provides enhanced performance in cold environments and does not restrict use in applications requiring the original temperature range.

Q: What packaging options are available for these parts?

A: The EEC-RF0H104 is supplied in bulk packaging. The KW-5R5C104-R is also supplied in bulk packaging, maintaining consistency with standard procurement practices for through-hole components.
