EDZ1100/12 Terminal Block Plug - Equivalent & Substitute Parts

Part Overview

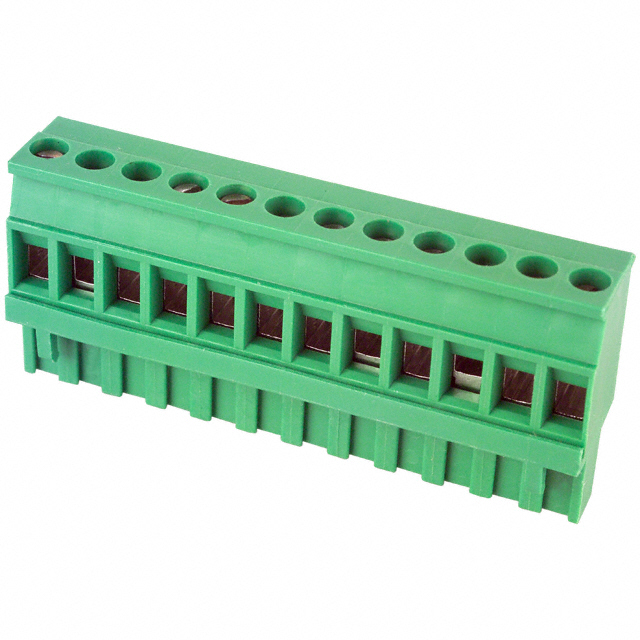

The EDZ1100/12 is a 12-position terminal block plug manufactured by On Shore Technology Inc., designed for free-hanging (in-line) applications with female sockets and 0.200" (5.08mm) pitch spacing. This component is classified as an active product and is widely used in industrial control, automation, and power distribution systems requiring screw-type termination. Substitute parts are identified to provide alternative sourcing options when the primary part is unavailable or when inventory constraints require component flexibility within specified electrical and mechanical parameters.

Key Parameters

Parameter	Value
Manufacturer Part Number	EDZ1100/12
Manufacturer	On Shore Technology Inc.
Category	Terminal Blocks
Type	Plug, Female Sockets
Number of Positions	12
Pitch	0.200" (5.08mm)
Mounting Type	Free Hanging (In-Line)
Termination Style	Screw
Voltage - UL	300 V
Wire Gauge - AWG	10-22 AWG
Wire Gauge - mm²	2.5mm²
Operating Temperature	-30°C ~ 105°C
Material Flammability Rating	UL94 V-0
RoHS Status	ROHS3 Compliant
Product Status	Active

Substitute Part Grouping Explanation

Substitution eligibility for the EDZ1100/12 is determined by strict alignment with the following critical parameters:

Connector Type & Configuration: 12-position plug with female sockets and 0.200" (5.08mm) pitch
Mounting & Orientation: Free-hanging (in-line) configuration
Termination Method: Screw-type termination
Electrical Ratings: 300 V UL voltage rating
Temperature Range: -30°C to 105°C operating window
Compliance: ROHS3 compliance and UL94 V-0 flammability rating
Wire Compatibility: Support for wire gauges within the specified range

The substitute part OSTTS12515A meets these core substitution criteria. Variations in wire gauge range, contact material, housing material, and torque specifications represent acceptable engineering tolerances within the terminal block category and do not preclude functional equivalence for standard applications.

Parameter Comparison

Parameter	EDZ1100/12	OSTTS12515A
Manufacturer	On Shore Technology Inc.	On Shore Technology Inc.
Category	Terminal Blocks	Terminal Blocks
Type	Plug, Female Sockets	Plug, Female Sockets
Number of Positions	12	12
Pitch	0.200" (5.08mm)	0.200" (5.08mm)
Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line)
Termination Style	Screw	Screw
Voltage - UL	300 V	300 V
Wire Gauge - AWG	10-22 AWG	12-24 AWG
Wire Gauge - mm²	2.5mm²	0.34-2.5mm²
Color	Green	Green
Operating Temperature	-30°C ~ 105°C	-30°C ~ 105°C
Material Flammability Rating	UL94 V-0	UL94 V-0
RoHS Status	ROHS3 Compliant	ROHS3 Compliant
Product Status	Active	Active
Torque - Screw	0.5 Nm (4.4 Lb-In)	0.4 Nm (3.5 Lb-In)
Wire Strip Length	7mm	6-7mm

Engineering Selection Recommendations

Both EDZ1100/12 and OSTTS12515A are active products manufactured by On Shore Technology Inc. and maintain full ROHS3 compliance and UL94 V-0 flammability certification. Selection between these parts should be based on application-specific wire gauge requirements and inventory availability.

The EDZ1100/12 is optimized for wire gauges in the 10-22 AWG range (2.5mm²), while the OSTTS12515A accommodates a broader wire gauge spectrum of 12-24 AWG (0.34-2.5mm²). Applications requiring smaller gauge wire compatibility should specify OSTTS12515A. Applications utilizing larger gauge conductors (10-11 AWG) require EDZ1100/12.

Both parts maintain identical voltage ratings (300 V UL), operating temperature ranges (-30°C to 105°C), pitch spacing (5.08mm), and mounting configuration (free-hanging in-line). Screw torque specifications differ marginally (0.5 Nm vs. 0.4 Nm), representing standard manufacturing tolerances within the terminal block category.

Frequently Asked Questions (FAQ)

Q: Can OSTTS12515A directly replace EDZ1100/12 in all applications?

A: OSTTS12515A is functionally equivalent for applications using wire gauges within the 12-22 AWG overlap range. Applications requiring 10-11 AWG wire compatibility must use EDZ1100/12, as OSTTS12515A minimum wire gauge is 12 AWG.

Q: Are the screw torque differences between these parts significant?

A: The torque specifications (0.5 Nm for EDZ1100/12 vs. 0.4 Nm for OSTTS12515A) represent acceptable engineering tolerances. Both values fall within standard terminal block assembly practices and do not affect functional performance in typical applications.

Q: Do both parts meet the same compliance standards?

A: Yes. Both EDZ1100/12 and OSTTS12515A are ROHS3 compliant, UL94 V-0 rated, and maintain identical 300 V UL voltage ratings and -30°C to 105°C operating temperature ranges.

Q: What is the pitch spacing, and is it identical between both parts?

A: Both parts feature 0.200" (5.08mm) pitch spacing. This parameter is identical and ensures mechanical and electrical compatibility within the same connector system.

Q: Are there differences in contact or housing materials?

A: EDZ1100/12 uses copper tin alloy contacts with polyamide (PA) nylon housing. OSTTS12515A uses brass contacts with brass housing. These material differences do not affect electrical performance for standard applications within the specified voltage and temperature ranges.

Q: What wire strip length should be used for termination?

A: EDZ1100/12 specifies 7mm wire strip length. OSTTS12515A allows 6-7mm flexibility. Both values are within acceptable termination practice for screw-type terminal blocks.
