ECW-HC3F562JD Film Capacitor Equivalent & Substitute Parts

Part Overview

The ECW-HC3F562JD is a 5600 pF film capacitor manufactured by Panasonic Electronic Components, rated for 3000V DC operation with polypropylene metallized dielectric. This radial through-hole component is designed for general-purpose applications requiring high-voltage film capacitor performance. The part maintains Active product status with full RoHS3 compliance and REACH unaffected designation. Substitute parts are identified based on matching electrical specifications and mechanical compatibility within the ECW-H(C) series.

Substiute Parts

ECW-HC3F562JD

Panasonic Electronic ComponentsIn Stock: 795ECW-HC3F562JD Datasheet

Current PartRFQ

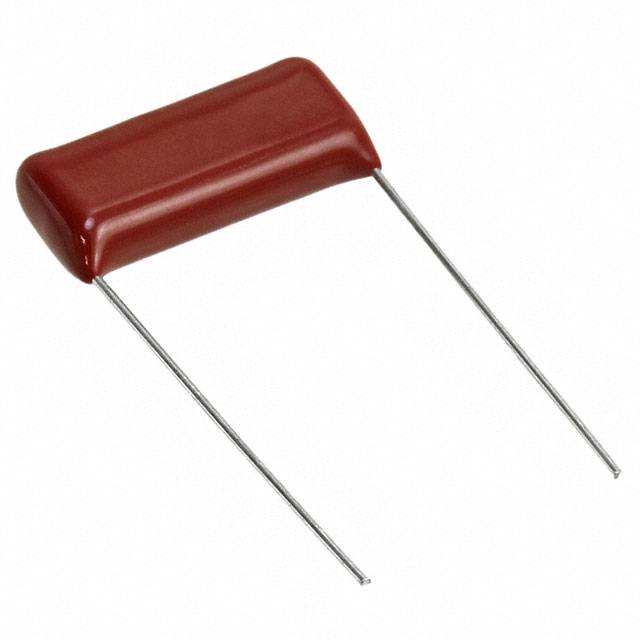

ECW-HC3F562J

Panasonic Electronic ComponentsIn Stock: 1240ECW-HC3F562J Datasheet

Parametric EquivalentRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution eligibility for the ECW-HC3F562JD is determined by strict equivalence across the following critical parameters:

• Capacitance Value: 5600 pF (exact match required)
• Tolerance: ±5% (exact match required)
• DC Voltage Rating: 3000V (3kV) (exact match required)
• Dielectric Type: Polypropylene (PP), Metallized (exact match required)
• Operating Temperature Range: -40°C ~ 105°C (exact match required)
• Mounting Configuration: Through Hole, Radial package with PC Pins termination (exact match required)
• Lead Spacing: 0.886" (22.50mm) (exact match required)

The ECW-HC3F562J qualifies as a parametric equivalent within the ECW-H(C) series, maintaining all critical electrical and mechanical specifications required for direct substitution in circuit applications.

Parameter Comparison

Engineering Selection Recommendations

Both the ECW-HC3F562JD and ECW-HC3F562J maintain Active product status with full RoHS3 compliance and REACH unaffected certification. Selection between these parts is based on inventory availability and application requirements. The ECW-HC3F562J provides additional AC voltage rating specification (1060V AC) not documented for the main part number. Both components are suitable for general-purpose high-voltage film capacitor applications requiring 3000V DC operation with polypropylene dielectric performance across the -40°C to 105°C temperature range.

Frequently Asked Questions (FAQ)

Q: Can ECW-HC3F562J be used as a direct replacement for ECW-HC3F562JD?

A: Yes. Both parts share identical capacitance (5600 pF), tolerance (±5%), DC voltage rating (3000V), dielectric material (polypropylene metallized), operating temperature range (-40°C ~ 105°C), and mechanical specifications including lead spacing (0.886"), package type (radial), and termination (PC Pins).

Q: What are the key parameters that determine substitution eligibility?

A: Substitution requires exact matching of capacitance value, tolerance, DC voltage rating, dielectric type, operating temperature range, mounting configuration, package type, lead spacing, and termination style. All these parameters are identical between the main part and substitute.

Q: Are there any compliance or certification differences between these parts?

A: No. Both parts maintain identical RoHS3 compliance status and REACH unaffected designation. Both are Active products from Panasonic Electronic Components within the ECW-H(C) series.

Q: Does the AC voltage rating difference affect substitution?

A: The ECW-HC3F562J includes AC voltage rating specification (1060V AC) while the ECW-HC3F562JD does not document this parameter. This does not affect DC application compatibility, as both parts are rated for identical 3000V DC operation.

Q: Are the physical dimensions identical?

A: Yes. Both parts share identical dimensions (1.016" L x 0.283" W / 25.80mm x 7.20mm), maximum seated height (0.472" / 12.00mm), and lead spacing (0.886" / 22.50mm), ensuring mechanical compatibility in through-hole PCB applications.
