ECW-FD2W185JC Equivalent & Substitute Parts

Part Overview

The ECW-FD2W185JC is a 1.8 µF film capacitor manufactured by Panasonic Electronic Components, rated for 450V DC operation with polypropylene dielectric material. This radial through-hole component is designed for EMI/RFI suppression, high-frequency switching, and high pulse applications. The part maintains Active product status with full RoHS3 compliance and REACH unaffected designation. Substitute parts are identified based on matching electrical specifications and mechanical compatibility within the ECW-F(D) series.

Substiute Parts

ECW-FD2W185JC

Panasonic Electronic ComponentsIn Stock: 705ECW-FD2W185JC Datasheet

Current PartRFQ

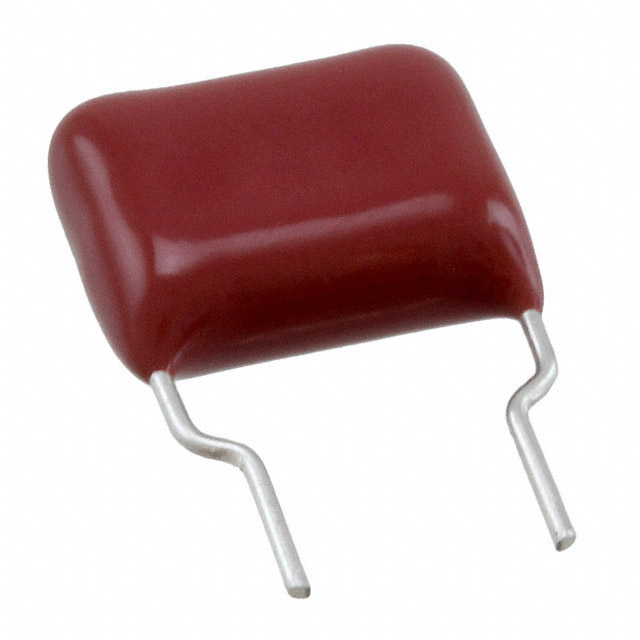

ECW-FD2W185J

Panasonic Electronic ComponentsIn Stock: 1819ECW-FD2W185J Datasheet

Parametric EquivalentRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution eligibility for the ECW-FD2W185JC is determined by strict equivalence across the following critical parameters:

Electrical Parameters:

• Capacitance value: 1.8 µF (exact match required)
• DC voltage rating: 450V (exact match required)
• Tolerance: ±5% (exact match required)
• Dielectric material: Polypropylene (PP), Metallized (exact match required)

Mechanical Parameters:

• Mounting type: Through Hole (exact match required)
• Package configuration: Radial (exact match required)
• Lead spacing: 0.591" / 15.00mm (exact match required)
• Physical dimensions: 0.689" L x 0.398" W / 17.50mm x 10.10mm (exact match required)
• Height seated maximum: 0.524" / 13.30mm (exact match required)
• Termination: PC Pins (exact match required)

Compliance Parameters:

• RoHS3 Compliant status (required for substitution)
• Operating temperature range: -40°C ~ 110°C (exact match required)
• Series designation: ECW-F(D) (required for substitution)

The ECW-FD2W185J qualifies as a parametric equivalent based on full alignment with all electrical, mechanical, and compliance criteria listed above.

Parameter Comparison

Engineering Selection Recommendations

Both the ECW-FD2W185JC and ECW-FD2W185J maintain Active product status within the Panasonic Electronic Components ECW-F(D) series. Both parts carry ROHS3 compliance certification and REACH unaffected designation, meeting current regulatory requirements for electronic component procurement.

The ECW-FD2W185J qualifies as a direct parametric equivalent for the ECW-FD2W185JC across all critical electrical and mechanical specifications. The parts are interchangeable for applications requiring 1.8 µF capacitance at 450V DC with polypropylene dielectric material in radial through-hole configuration.

Selection between these parts may be based on inventory availability and procurement lead time. The ECW-FD2W185J currently maintains higher inventory levels (1797 pcs) compared to the ECW-FD2W185JC (670 pcs).

Frequently Asked Questions (FAQ)

Q: Can the ECW-FD2W185J be used as a direct replacement for the ECW-FD2W185JC?

A: Yes. The ECW-FD2W185J is a parametric equivalent that matches all critical electrical specifications (1.8 µF, ±5% tolerance, 450V DC), mechanical dimensions (0.689" L x 0.398" W, 15.00mm lead spacing), and compliance certifications (ROHS3, REACH unaffected) required for direct substitution.

Q: What is the difference between the ECW-FD2W185JC and ECW-FD2W185J?

A: The primary difference is the AC voltage rating specification. The ECW-FD2W185JC does not specify an AC voltage rating, while the ECW-FD2W185J specifies 84V AC. Both parts are identical in DC voltage rating (450V), capacitance (1.8 µF), dielectric material, physical dimensions, and all other electrical and mechanical parameters.

Q: Are the physical dimensions identical between these parts?

A: Yes. Both parts share identical dimensions: 0.689" length x 0.398" width (17.50mm x 10.10mm), maximum seated height of 0.524" (13.30mm), and lead spacing of 0.591" (15.00mm). Both use radial through-hole mounting with PC pin termination.

Q: Do both parts meet current compliance requirements?

A: Yes. Both the ECW-FD2W185JC and ECW-FD2W185J are ROHS3 compliant and REACH unaffected, meeting current regulatory standards for electronic component procurement and use.

Q: Can these parts be used interchangeably in PCB designs?

A: Yes. The identical mechanical specifications, lead spacing, and mounting type ensure that both parts are mechanically and electrically interchangeable in through-hole PCB designs without requiring layout modifications.

Q: What applications are these capacitors suitable for?

A: Both parts are specified for EMI/RFI suppression, high-frequency switching applications, and high pulse/DV/DT environments. The 450V DC rating and polypropylene dielectric material support these application requirements.
