ECW-FD2W105JC Equivalent & Substitute Parts

Part Overview

The ECW-FD2W105JC is a 1 µF film capacitor manufactured by Panasonic Electronic Components, rated for 450V DC operation with polypropylene (PP) metallized dielectric construction. This radial through-hole component is designed for EMI/RFI suppression, high-frequency switching, and high pulse/DV/DT applications. The part maintains Active product status with 1393 units in current inventory stock. Substitute parts are identified to provide alternative sourcing options when the primary part number becomes unavailable or when inventory constraints require component alternatives that maintain equivalent electrical and mechanical specifications.

Substiute Parts

ECW-FD2W105JC

Panasonic Electronic ComponentsIn Stock: 1409ECW-FD2W105JC Datasheet

Current PartRFQ

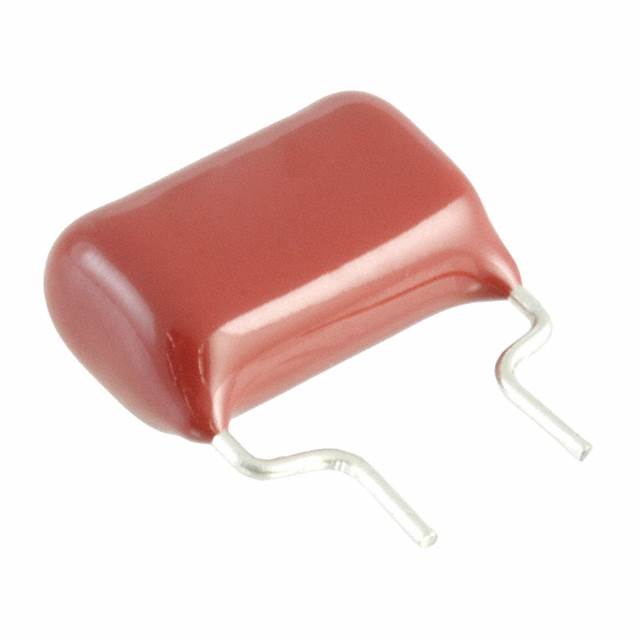

ECW-FD2W105JB

Panasonic Electronic ComponentsIn Stock: 1894ECW-FD2W105JB Datasheet

Parametric EquivalentRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution eligibility for the ECW-FD2W105JC is determined by strict equivalence across the following critical parameters:

Mandatory Matching Parameters:

• Capacitance: 1 µF
• Tolerance: ±5%
• Voltage Rating - DC: 450V
• Dielectric Material: Polypropylene (PP), Metallized
• Operating Temperature Range: -40°C ~ 110°C
• Mounting Type: Through Hole
• Package / Case: Radial
• Physical Dimensions: 0.689" L x 0.307" W (17.50mm x 7.80mm)
• Height - Seated (Max): 0.630" (16.00mm)
• Lead Spacing: 0.295" (7.50mm)
• Termination: PC Pins
• Series: ECW-F(D)

The substitute part ECW-FD2W105JB meets all mandatory matching parameters and is therefore classified as a parametric equivalent. Both parts share identical capacitance, tolerance, DC voltage rating, dielectric composition, temperature range, mechanical form factor, and termination specifications. The presence of an AC voltage rating specification in the substitute part does not alter its DC circuit equivalence.

Parameter Comparison

Engineering Selection Recommendations

Both the ECW-FD2W105JC and ECW-FD2W105JB maintain Active product status with full ROHS3 compliance and REACH Unaffected classification, confirming ongoing manufacturer support and regulatory compliance for both components. Selection between these parts should be based on inventory availability and supply chain requirements, as both parts satisfy identical electrical and mechanical specifications for DC circuit applications.

The ECW-FD2W105JB currently maintains higher inventory levels (1810 units) compared to the ECW-FD2W105JC (1393 units), which may influence procurement decisions when component availability is a consideration. Both parts are manufactured by Panasonic Electronic Components within the ECW-F(D) series and are suitable for direct substitution in through-hole PCB applications requiring 1 µF capacitance at 450V DC with polypropylene dielectric construction.
