ECQ-P1H273GZ Equivalent & Substitute Parts

Part Overview

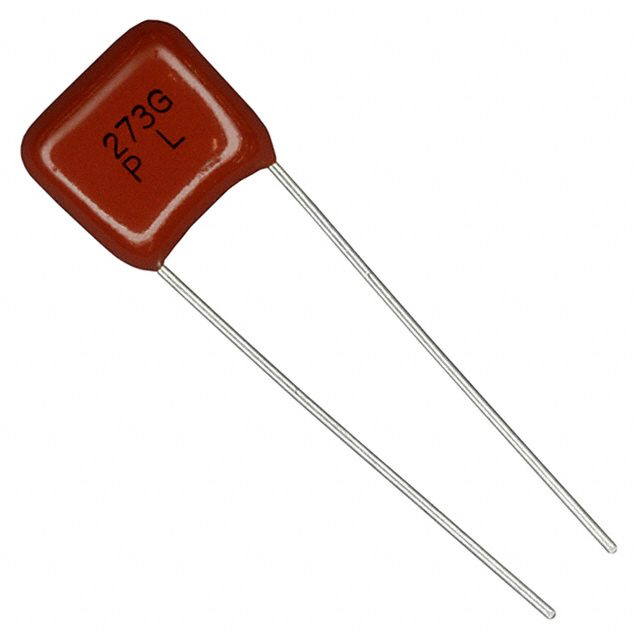

The ECQ-P1H273GZ is a 0.027 µF film capacitor manufactured by Panasonic Electronic Components, rated for 50V DC operation with ±2% tolerance. This radial through-hole component utilizes polypropylene (PP) dielectric material and is designed for high-frequency and switching applications. The product is currently obsolete, making identification of functionally equivalent alternatives necessary for ongoing system support, maintenance, and repair operations.

Substiute Parts

ECQ-P1H273GZ

Panasonic Electronic ComponentsIn Stock: 943ECQ-P1H273GZ Datasheet

Current PartRFQ

ECH-U1H273GX5

Panasonic Electronic ComponentsIn Stock: 10839ECH-U1H273GX5 Datasheet

SimilarRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution of the ECQ-P1H273GZ is determined by the following critical parameters:

• Capacitance Value: 0.027 µF (exact match required)
• Tolerance: ±2% (acceptable range for circuit function)
• Voltage Rating - DC: 50V minimum (equal or higher acceptable)
• Dielectric Material: Film-based capacitor (polypropylene or equivalent film technology)
• Operating Temperature Range: Must support application requirements
• Mounting Compatibility: Physical form factor and board integration method

The ECH-U1H273GX5 qualifies as a functional substitute based on matching capacitance value (0.027 µF), tolerance (±2%), and DC voltage rating (50V). However, this substitute introduces a change in mounting technology from through-hole radial to surface-mount 1210 package format, which requires PCB redesign and assembly process modification.

Parameter Comparison

Engineering Selection Recommendations

The ECH-U1H273GX5 provides electrical equivalence in capacitance, tolerance, and DC voltage rating. The substitute part carries Active product status and ROHS3 compliance, supporting long-term availability and regulatory requirements.

Selection of this substitute requires evaluation of mounting technology compatibility. The transition from through-hole radial to surface-mount 1210 package necessitates PCB layout modification and assembly process changes. The extended operating temperature range (-55°C ~ 125°C) of the substitute exceeds the original specification (-40°C ~ 85°C), providing enhanced thermal performance margin.

The dielectric material change from polypropylene (PP) to polyphenylene sulfide (PPS) metallized-stacked construction represents a functional film capacitor technology transition. Both materials are suitable for high-frequency and switching applications within the specified voltage and capacitance parameters.

Frequently Asked Questions (FAQ)

Q: Can the ECH-U1H273GX5 be used as a direct replacement for the ECQ-P1H273GZ?

A: Electrical substitution is valid based on matching capacitance (0.027 µF), tolerance (±2%), and DC voltage rating (50V). Physical substitution requires PCB redesign due to mounting type change from through-hole radial to surface-mount 1210 package.

Q: What are the key differences between these two parts?

A: Primary differences include mounting technology (through-hole vs. surface-mount), package format (radial vs. 1210), dielectric material (polypropylene vs. polyphenylene sulfide metallized-stacked), and operating temperature range (-40°C ~ 85°C vs. -55°C ~ 125°C).

Q: Is the dielectric material change from PP to PPS significant?

A: Both polypropylene and polyphenylene sulfide are film-based dielectric materials suitable for high-frequency and switching applications. The PPS metallized-stacked construction in the substitute provides equivalent electrical performance within the specified parameters.

Q: What is the inventory status of these parts?

A: The ECQ-P1H273GZ (obsolete) has 927 pcs in stock. The ECH-U1H273GX5 (active) has 10,809 pcs in stock, providing superior long-term availability.

Q: Does the substitute part meet current compliance standards?

A: The ECH-U1H273GX5 is ROHS3 compliant and REACH unaffected, meeting current regulatory requirements. The original ECQ-P1H273GZ compliance status is not specified in available documentation.
