ECO-S2HP560BA Equivalent & Substitute Parts

Part Overview

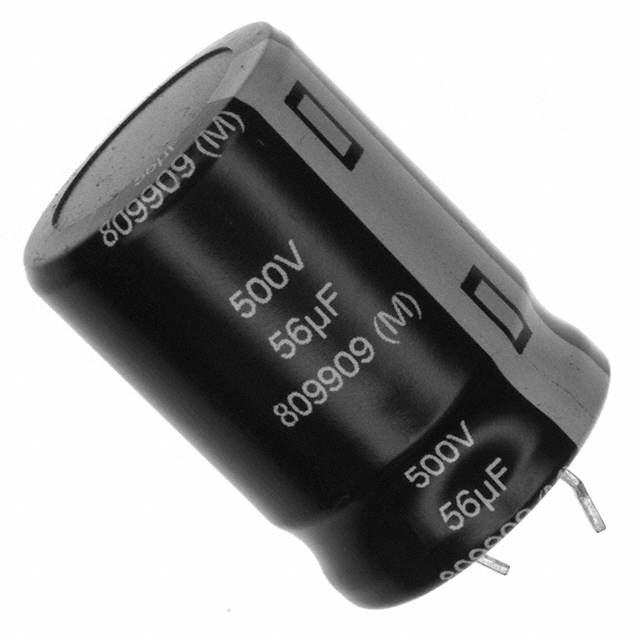

The ECO-S2HP560BA is a 56 µF, 500 V aluminum electrolytic capacitor manufactured by Panasonic Electronic Components in the TS-UP series. This radial, can-style snap-in capacitor is designed for general-purpose applications requiring high voltage energy storage and filtering. The part is currently obsolete, making equivalent substitute components necessary for ongoing system support, maintenance, and new design implementations where this specification remains applicable.

Substiute Parts

ECO-S2HP560BA

Panasonic Electronic ComponentsIn Stock: 709ECO-S2HP560BA Datasheet

Current PartRFQ

380LX560M500H032

Cornell Dubilier Electronics (CDE)In Stock: 1045380LX560M500H032 Datasheet

SimilarRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution of the ECO-S2HP560BA is determined by strict equivalence across the following critical parameters:

• Capacitance Value: 56 µF (exact match required)
• Voltage Rating: 500 V (exact match required)
• Tolerance: ±20% (exact match required)
• Package / Case: Radial, Can - Snap-In (exact match required)
• Lead Spacing: 0.394" (10.00 mm) (exact match required)
• Polarization: Polar (exact match required)
• Mounting Type: Through Hole (exact match required)
• Operating Temperature Range: -25°C ~ 85°C (exact match required)
• Lifetime @ Temperature: 3000 Hrs @ 85°C (exact match required)

The substitute part 380LX560M500H032 from Cornell Dubilier Electronics (CDE) meets all critical electrical and mechanical parameters, enabling direct functional replacement in applications originally designed for the ECO-S2HP560BA.

Parameter Comparison

Engineering Selection Recommendations

The 380LX560M500H032 from Cornell Dubilier Electronics is a direct functional equivalent to the obsolete ECO-S2HP560BA. Selection of this substitute is supported by:

• Active Product Status: The 380LX560M500H032 is currently in active production, ensuring long-term availability and supply chain continuity.
• Identical Electrical Specifications: Capacitance, voltage rating, tolerance, lifetime, and operating temperature range are identical to the original part.
• Improved ESR Performance: The substitute exhibits lower equivalent series resistance (2.25 Ohm versus 2.96 Ohm @ 120 Hz), providing enhanced performance characteristics.
• Mechanical Compatibility: Lead spacing, polarization, and mounting type are identical, enabling direct board-level substitution.
• Regulatory Compliance: Both parts share identical ECCN and HTSUS classifications, with the substitute meeting ROHS3 and REACH compliance standards.

The only dimensional difference is the seated height (37.00 mm versus 30.00 mm), which must be verified against available board clearance in the target application.

Frequently Asked Questions (FAQ)

Q: Can the 380LX560M500H032 be used as a direct replacement for the ECO-S2HP560BA?

A: Yes. The substitute meets all critical electrical and mechanical parameters: 56 µF capacitance, 500 V voltage rating, ±20% tolerance, identical lead spacing (10.00 mm), and through-hole snap-in package. Board clearance verification is required due to the increased seated height (37.00 mm versus 30.00 mm).

Q: What is the primary difference between these two parts?

A: The ECO-S2HP560BA is obsolete, while the 380LX560M500H032 is in active production. The substitute also features lower ESR (2.25 Ohm versus 2.96 Ohm @ 120 Hz) and greater seated height (37.00 mm versus 30.00 mm).

Q: Are there any compliance or certification differences?

A: Both parts share identical ECCN (EAR99) and HTSUS (8532.22.0040) classifications. The substitute additionally meets ROHS3 and REACH compliance standards.

Q: Does the lower ESR of the substitute affect circuit performance?

A: Lower ESR generally improves capacitor performance by reducing heat dissipation and improving ripple current handling. This represents an enhancement over the original specification.

Q: What must be verified before substitution?

A: Verify that the increased seated height of the 380LX560M500H032 (37.00 mm) does not exceed available clearance on the target PCB. All other mechanical and electrical parameters are compatible.
