ECO-S2GA331DA Equivalent & Substitute Parts

Part Overview

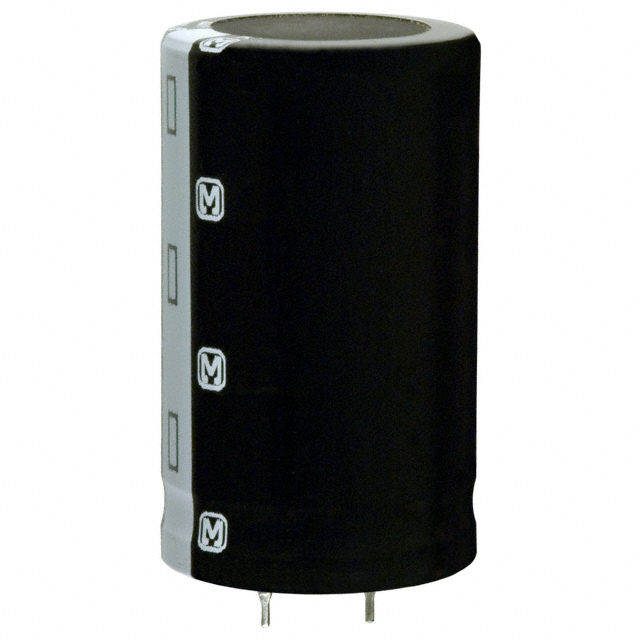

The ECO-S2GA331DA is a 330 µF, 400 V aluminum electrolytic capacitor manufactured by Panasonic Electronic Components in the TS-HA series. This radial, can-style snap-in capacitor is designed for general-purpose applications requiring 3000 hours of operational life at 105°C. The part is currently obsolete, making equivalent substitutes necessary for ongoing system support and component procurement.

Key Parameters

Parameter	Value
Capacitance	330 µF
Voltage Rating	400 V
Tolerance	±20%
Lifetime @ Temperature	3000 Hrs @ 105°C
Operating Temperature Range	-25°C ~ 105°C
Polarization	Polar
Package Type	Radial, Can - Snap-In
Lead Spacing	0.394" (10.00mm)
Diameter	1.181" (30.00mm)
Mounting Type	Through Hole

Substitute Part Grouping Explanation

Substitution for the ECO-S2GA331DA is determined by strict adherence to the following electrical and mechanical parameters:

Critical Parameters (Must Match):

Capacitance: 330 µF
Voltage Rating: 400 V
Tolerance: ±20%
Polarization: Polar
Package Type: Radial, Can - Snap-In
Lead Spacing: 0.394" (10.00mm)
Diameter: 1.181" (30.00mm)
Mounting Type: Through Hole
Operating Temperature Range: -25°C ~ 105°C

Acceptable Variation Parameters:

Lifetime @ Temperature: 3000 Hrs @ 105°C or greater
Height - Seated: Variations permitted within mechanical envelope constraints
ESR and Ripple Current: Variations permitted provided electrical performance meets application requirements

All substitute parts listed meet or exceed the critical parameters of the original part.

Parameter Comparison

Manufacturer	Part Number	Capacitance	Voltage	Tolerance	Lifetime @ 105°C	Height (Max)	Product Status	RoHS Status
Panasonic	ECO-S2GA331DA	330 µF	400 V	±20%	3000 Hrs	2.047" (52.00mm)	Obsolete	-
Cornell Dubilier	381LR331M400K042	330 µF	400 V	±20%	3000 Hrs	1.654" (42.00mm)	Active	ROHS3 Compliant
Cornell Dubilier	381LX331M400K452	330 µF	400 V	±20%	3000 Hrs	1.850" (47.00mm)	Active	ROHS3 Compliant
Rubycon	400HXG330MEFC30X35	330 µF	400 V	±20%	3000 Hrs	1.457" (37.00mm)	Active	ROHS3 Compliant
Rubycon	400HXG330MEFCSN30X35	330 µF	400 V	±20%	3000 Hrs	1.457" (37.00mm)	Active	ROHS3 Compliant
Rubycon	400MXG330MEFCSN30X35	330 µF	400 V	±20%	3000 Hrs	1.457" (37.00mm)	Active	ROHS3 Compliant
Rubycon	400MXK330MEFCSN30X30	330 µF	400 V	±20%	3000 Hrs	1.260" (32.00mm)	Active	ROHS3 Compliant
Rubycon	400VXG330MEFC30X40	330 µF	400 V	±20%	5000 Hrs	1.654" (42.00mm)	Active	ROHS3 Compliant
Rubycon	400VXH330MEFC30X30	330 µF	400 V	±20%	5000 Hrs	1.260" (32.00mm)	Active	ROHS3 Compliant
Rubycon	400VXH330MEFCSN30X30	330 µF	400 V	±20%	5000 Hrs	1.260" (32.00mm)	Active	ROHS3 Compliant
EPCOS - TDK Electronics	B43254B9337M	330 µF	400 V	±20%	3000 Hrs	1.654" (42.00mm)	Active	ROHS3 Compliant

Engineering Selection Recommendations

All listed substitute parts are active production components with ROHS3 compliance, providing long-term availability and regulatory alignment. Selection among substitutes should be based on:

Height Constraint Consideration: The original ECO-S2GA331DA has a maximum seated height of 2.047" (52.00mm). Substitute parts with reduced heights (ranging from 1.260" to 1.850") are mechanically compatible with applications designed for the original part, as they occupy less vertical space. Applications with strict height limitations should prioritize parts with the smallest height ratings.

Lifetime Rating: Parts designated with 5000 Hrs @ 105°C (Rubycon VXG and VXH series) provide extended operational life compared to the original 3000 Hrs specification. These are direct upgrades for applications requiring enhanced reliability.

Manufacturer Availability: Cornell Dubilier 381LR and 381LX series, Rubycon HXG/MXG/MXK/VXG/VXH series, and EPCOS B43254 series all maintain active production status with substantial inventory levels, ensuring consistent supply chain access.

Frequently Asked Questions (FAQ)

Q: Can I use a substitute part with a different height than the original ECO-S2GA331DA?

A: Yes. The original part has a maximum seated height of 2.047" (52.00mm). All listed substitutes have heights ranging from 1.260" to 1.850", which are mechanically compatible. Verify that your PCB layout and mechanical enclosure accommodate the substitute part's height before installation.

Q: What is the difference between 3000 Hrs and 5000 Hrs lifetime ratings?

A: Both ratings specify operational life at 105°C. The 3000 Hrs rating is equivalent to the original part's specification. The 5000 Hrs rating (Rubycon VXG and VXH series) represents extended operational life and is a direct upgrade for applications requiring higher reliability margins.

Q: Are all substitute parts ROHS3 compliant?

A: Yes. All active production substitutes listed are ROHS3 compliant. The original ECO-S2GA331DA does not specify RoHS status due to its obsolete status.

Q: Do substitute parts have the same lead spacing and diameter as the original?

A: Yes. All substitute parts maintain the same lead spacing of 0.394" (10.00mm) and diameter of 1.181" (30.00mm) as the original ECO-S2GA331DA, ensuring direct PCB footprint compatibility.

Q: Which substitute offers the best availability?

A: Rubycon 400HXG330MEFC30X35 and 400MXG330MEFCSN30X35 have the highest inventory levels (273,782 and 656,750 units respectively), providing optimal supply chain security.

Q: Can I substitute a part with higher voltage rating than 400 V?

A: The substitution list is limited to 400 V rated parts. Higher voltage ratings are not included as they represent different electrical specifications outside the scope of direct equivalency for this application category.
