ECO-S2DP681BA Equivalent & Substitute Parts

Part Overview

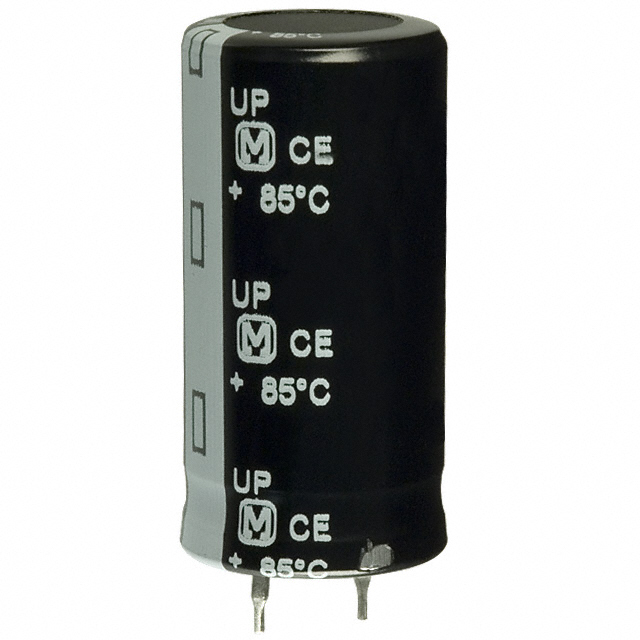

The ECO-S2DP681BA is a 680 µF, 200 V aluminum electrolytic capacitor manufactured by Panasonic Electronic Components in the TS-UP series. This radial, can-style snap-in capacitor is rated for general-purpose applications with a 3000-hour lifetime at 85°C and an operating temperature range of -40°C to 85°C. The part is currently obsolete, making equivalent and substitute parts necessary for ongoing system support and new designs requiring this capacitance and voltage specification.

Key Parameters

Parameter	Value
Capacitance	680 µF
Voltage Rating	200 V
Tolerance	±20%
Package Type	Radial, Can - Snap-In
Mounting Type	Through Hole
Lead Spacing	0.394" (10.00 mm)
Operating Temperature	-40°C to 85°C
Lifetime @ Temperature	3000 Hrs @ 85°C
Polarization	Polar
Application	General Purpose

Substitute Part Grouping Explanation

Substitution for the ECO-S2DP681BA is determined by strict adherence to the following electrical and mechanical parameters:

Critical Parameters (Must Match):

Capacitance: 680 µF
Voltage Rating: 200 V
Tolerance: ±20%
Polarization: Polar
Package Type: Radial, Can - Snap-In
Lead Spacing: 0.394" (10.00 mm)
Mounting Type: Through Hole
Operating Temperature Range: -40°C to 85°C minimum
Lifetime: 3000 Hrs @ 85°C minimum

Allowable Variations:

Physical dimensions (diameter and height) may vary within mechanical compatibility constraints
ESR values may differ while maintaining functional equivalence
Ripple current ratings may exceed the original specification

Parts are classified as follows:

Direct Equivalents: Parts meeting all critical parameters with identical or superior performance characteristics and active product status.

Upgrade Options: Parts exceeding the original specification in temperature rating or performance metrics while maintaining all critical electrical parameters.

Similar Parts: Parts meeting core electrical specifications but with variations in lifetime rating or physical dimensions that may require mechanical validation.

Parameter Comparison

Manufacturer Part Number	Manufacturer	Capacitance	Voltage	Tolerance	Lifetime @ Temp	Operating Temp	Lead Spacing	Height (Max)	Product Status	RoHS Status
ECO-S2DP681BA	Panasonic	680 µF	200 V	±20%	3000 Hrs @ 85°C	-40°C ~ 85°C	0.394" (10.00 mm)	1.772" (45.00 mm)	Obsolete	REACH Affected
200USG680MEFC22X35	Rubycon	680 µF	200 V	±20%	3000 Hrs @ 85°C	-40°C ~ 85°C	0.394" (10.00 mm)	1.457" (37.00 mm)	Active	ROHS3 Compliant
380LX681M200H452	Cornell Dubilier Electronics (CDE)	680 µF	200 V	±20%	3000 Hrs @ 85°C	-40°C ~ 85°C	0.394" (10.00 mm)	1.850" (47.00 mm)	Active	ROHS3 Compliant
LLS2D681MELZ	Nichicon	680 µF	200 V	±20%	3000 Hrs @ 85°C	-40°C ~ 85°C	0.394" (10.00 mm)	1.575" (40.00 mm)	Active	ROHS3 Compliant
LGU2D681MELZ	Nichicon	680 µF	200 V	±20%	3000 Hrs @ 105°C	-40°C ~ 105°C	0.394" (10.00 mm)	1.772" (45.00 mm)	Active	ROHS3 Compliant
SLPX681M220A4P3	Cornell Dubilier Electronics (CDE)	680 µF	220 V	±20%	3000 Hrs @ 85°C	-40°C ~ 85°C	0.394" (10.00 mm)	1.772" (45.00 mm)	Active	ROHS3 Compliant
380LQ681M200J022	Cornell Dubilier Electronics (CDE)	680 µF	200 V	±20%	2000 Hrs @ 85°C	-40°C ~ 85°C	0.394" (10.00 mm)	1.260" (32.00 mm)	Active	ROHS3 Compliant
380LX681M200J032	Cornell Dubilier Electronics (CDE)	680 µF	200 V	±20%	3000 Hrs @ 85°C	-40°C ~ 85°C	0.394" (10.00 mm)	1.457" (37.00 mm)	Active	ROHS3 Compliant
380LX681M200K022	Cornell Dubilier Electronics (CDE)	680 µF	200 V	±20%	3000 Hrs @ 85°C	-40°C ~ 85°C	0.394" (10.00 mm)	1.260" (32.00 mm)	Active	ROHS3 Compliant
B43305B2687M000	EPCOS - TDK Electronics	680 µF	200 V	±20%	2000 Hrs @ 85°C	-40°C ~ 85°C	0.394" (10.00 mm)	1.181" (30.00 mm)	Active	ROHS3 Compliant
LPX681M200C7P3	Cornell Dubilier Electronics (CDE)	680 µF	200 V	±20%	1000 Hrs @ 85°C	-40°C ~ 85°C	0.394" (10.00 mm)	1.575" (40.00 mm)	Active	ROHS3 Compliant

Engineering Selection Recommendations

Direct Equivalents (Recommended Primary Choices):

200USG680MEFC22X35 (Rubycon), 380LX681M200H452 (Cornell Dubilier Electronics), and LLS2D681MELZ (Nichicon) meet all critical electrical parameters with 3000-hour lifetime ratings at 85°C and active product status. All three are ROHS3 compliant. Physical height variations (37.00 mm, 47.00 mm, and 40.00 mm respectively) require mechanical validation for board layout compatibility. Rubycon 200USG680MEFC22X35 offers the most compact height at 37.00 mm.

Upgrade Option:

LGU2D681MELZ (Nichicon) provides enhanced temperature performance with 3000-hour lifetime at 105°C and extended operating range to 105°C. This part is mechanically identical to the original (45.00 mm height) and ROHS3 compliant, making it suitable for applications requiring improved thermal margin.

Higher Voltage Alternative:

SLPX681M220A4P3 (Cornell Dubilier Electronics) operates at 220 V, providing voltage headroom above the original 200 V specification. This part maintains 3000-hour lifetime at 85°C and is ROHS3 compliant. Use only when circuit design permits higher voltage rating.

Reduced Lifetime Options:

380LQ681M200J022 (Cornell Dubilier Electronics), B43305B2687M000 (EPCOS - TDK Electronics), and LPX681M200C7P3 (Cornell Dubilier Electronics) provide 2000-hour, 2000-hour, and 1000-hour lifetimes respectively at 85°C. These parts are suitable only for applications where reduced lifetime is acceptable. All are ROHS3 compliant and active products.

All substitute parts maintain the critical 0.394" (10.00 mm) lead spacing and through-hole mounting configuration required for direct board-level replacement.

Frequently Asked Questions (FAQ)

Q: Can I use a 220 V rated capacitor in place of a 200 V rated capacitor?

A: Yes. SLPX681M220A4P3 operates at 220 V and is electrically compatible with 200 V circuit designs. Higher voltage ratings provide additional safety margin. Verify circuit design permits this substitution.

Q: What is the impact of different physical heights on board compatibility?

A: The substitute parts range from 30.00 mm to 47.00 mm in seated height, compared to the original 45.00 mm. Verify clearance above the capacitor location on the PCB. Shorter parts (30.00 mm to 37.00 mm) are generally preferred for space-constrained designs.

Q: Are all substitute parts RoHS compliant?

A: Yes. All active substitute parts listed are ROHS3 compliant. The original ECO-S2DP681BA is REACH Affected; all substitutes are REACH Unaffected.

Q: What is the difference between direct equivalents and upgrade options?

A: Direct equivalents (200USG680MEFC22X35, 380LX681M200H452, LLS2D681MELZ) match the original 3000-hour lifetime at 85°C. The upgrade option LGU2D681MELZ extends lifetime to 3000 hours at 105°C, providing superior thermal performance for demanding applications.

Q: Can I use parts with reduced lifetime ratings?

A: Parts with 2000-hour or 1000-hour lifetimes (380LQ681M200J022, B43305B2687M000, LPX681M200C7P3) are suitable only when application requirements permit reduced operational life. Confirm system design specifications before selection.

Q: Do all substitute parts use the same lead spacing?

A: Yes. All substitute parts maintain 0.394" (10.00 mm) lead spacing, enabling direct PCB footprint compatibility with the original ECO-S2DP681BA.

Q: Which substitute offers the best overall compatibility?

A: 200USG680MEFC22X35 (Rubycon) provides optimal compatibility with matching electrical specifications, active product status, ROHS3 compliance, and the most compact physical height (37.00 mm) for space-constrained applications.
